GlobalProtect Satellite Not Receiving Newly Added Access Route from the Gateway

GlobalProtect Satellite Not Receiving Newly Added Access Route from the Gateway

13592
Created On 09/25/18 18:47 PM - Last Modified 06/02/20 17:56 PM


Symptom

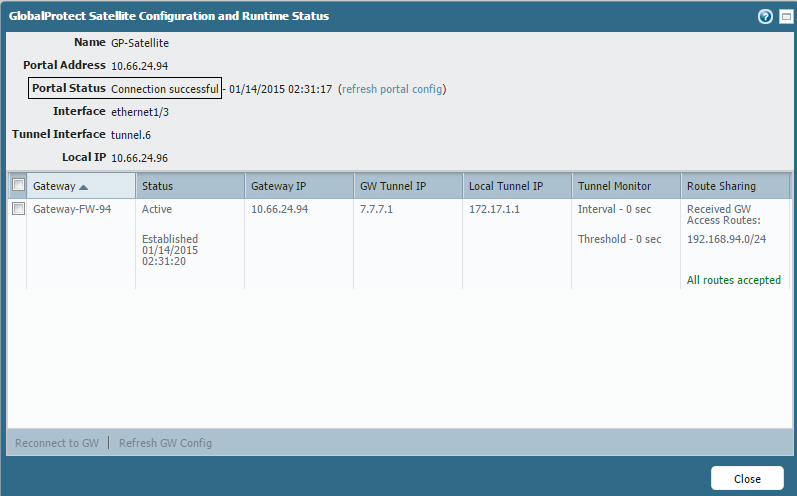

In this scenario a GlobalProtect satellite is successfully connected to a GlobalProtect Gateway as shown below:

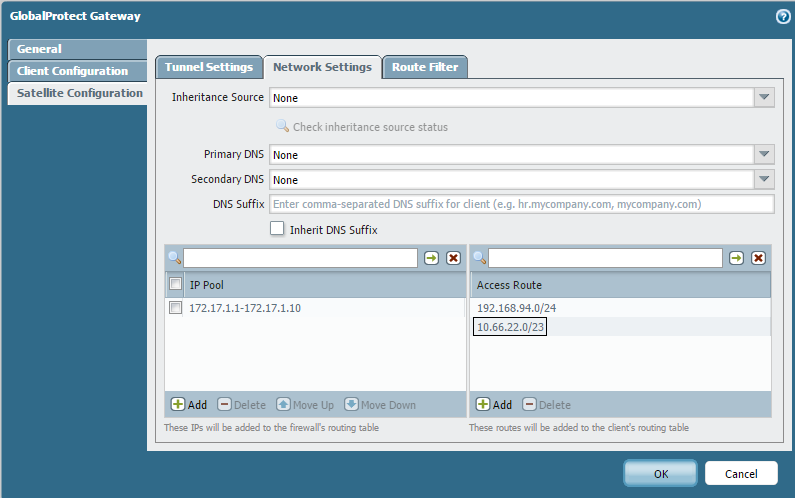

As shown above in the 'Route Sharing' column, the GlobalProtect Gateway is advertising the subnet 192.168.94.0/24 to the satellite. A new access route of the subnet 10.66.22.0/23 is added in the GlobalProtect Gateway config to be published to the satellite, as shown below:

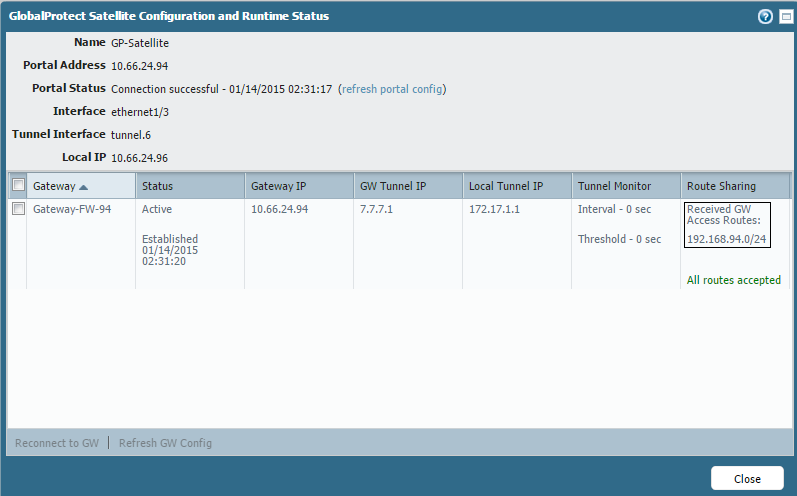

However, this newly added access route 10.66.22.0/23 is still not received by the satellite and the gateway information did not change to display 10.66.22.0/23, as shown below:




Environment
  • Pan-OS
  • GlobalProtect
  • GlobalProtect satellite


Resolution

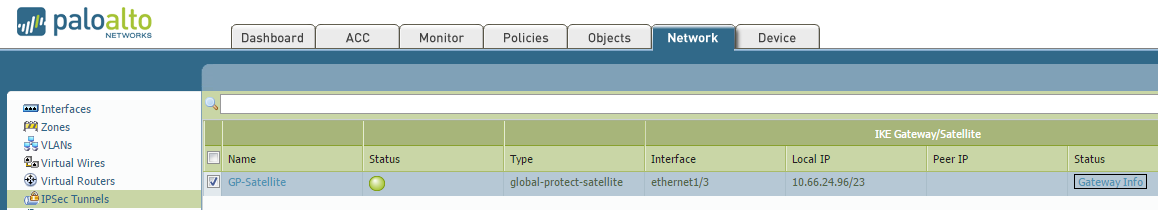

On the GlobalProtect Satellite, go to Network > IPSec Tunnels > GP-Satellite and click on "Gateway Info":

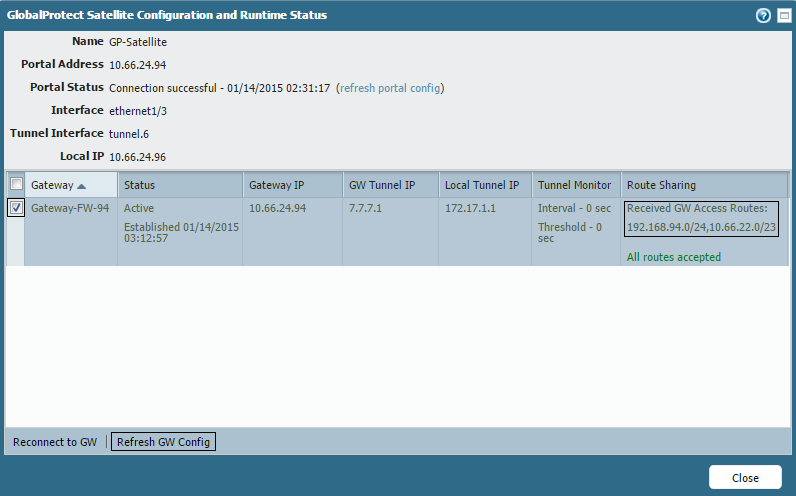

Check the gateway config and click "Refresh GW Config", as shown below to retrieve any changes made on the gateway such as receiving an access route:




The GlobalProtect satellite now has a route to reach the subnet 10.66.22.0/23 behind the GlobalProtect gateway.

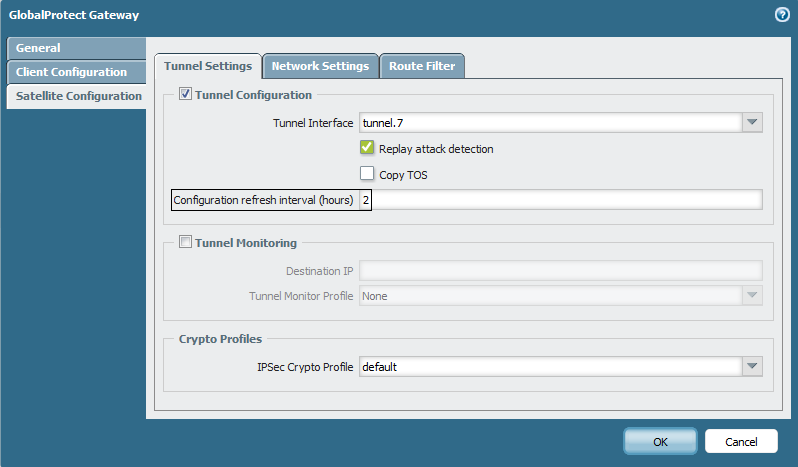

By default, the GlobalProtect satellite refreshes the config from gateway for the hours value specified in the GlobalProtect gateway satellite config, as shown below (default is 1 hour and max value is 48 hours):




Note: To refresh the gateway config through the CLI, and to verify the access routes added on the GlobalProtect satellite, use the following CLI commands:

> request global-protect-satellite get-gateway-config gateway-address 10.66.24.94
satellite GP-Satellite
Use the command:  > show global-protect-satellite current-gateway gateway 10.66.24.94
satellite GP-Satellite to display the gateway connection status
> show global-protect-satellite current-gateway gateway 10.66.24.94 satellite GP-Satellite

GlobalProtect Satellite : GP-Satellite (1 gateways)
Gateway Info: 10.66.24.94
Get Config State:
Refresh Time (seconds)           : 7200
Failed Refresh Time (seconds)    : 300
Current Get Config               : success
Max Get Config Retries           : 34
Number Get Config Failed         : 0
Config Timer Activated           : yes
Next Get Config Time (seconds)   : 6081
Cached Get Config Time (seconds) : 0
Failed Reason

Portal Config:
GlobalProtect Gateway Name       : Gateway-FW-94
GlobalProtect Gateway Address    : 10.66.24.94
Priority                         : 1

Gateway Config:
Gateway Tunnel Name              : GP-Gateway-S
Gateway Tunnel Interface         : tunnel.6
Gateway Tunnel id                : 9
Gateway Tunnel IP                : 7.7.7.1
Gateway Additional Tunnel IPs    :
Status                           : Active
Status Time                      : Jan.14 03:12:57
Reason                           : Established

Config Refresh Time (hours)      : 2
IP Address                       : 172.17.1.1
Default Gateway                  : 7.7.7.1
Netmask                          : 255.255.255.255
Access Routes                    : 192.168.94.0/24
: 10.66.22.0/23
Denied Routes                    :
Duplicate Routes                 :
DNS Servers                      :
DNS Suffixes                     :

Tunnel Monitor Enabled           : No
Tunnel Monitor Interval          : 0 seconds
Tunnel Monitor Action            : wait-recover
Tunnel Monitor Threshold         : 0 attempts
Tunnel Monitor Source            : 172.17.1.1
Tunnel Monitor Destination       : 7.7.7.1
Tunnel Monitor Status            : No data available







Additional Information

See Also

How to Configure GlobalProtect Satellite

Large Scale VPN (LSVPN) Deployment Guide
