Zone protection profile blocking trusted traffic

• Traffic from specific IPs does not have access to the internet.
• Other IPs and Users using the same security policy, NAT policy, subnet, and configuration are able to access the internet.
• Access is allowed after some amount of time.
• Viewing the global counter for the filtered packet shows the counter below increasing:

admin@PA-VM> show counter global filter packet-filter yes delta yes  => Note packet filter must be configured to match the traffic.
.......
flow_dos_drop_ip_blocked      2 0 drop flow dos Packets dropped: Flagged for blocking and under block duration by DoS or other modules
.......

• Palo Alto Networks firewall
• PAN-OS 8.1 and above.

• The details of the message "The block table was triggered by DoS or other modules", indicate is the zone protection module.
• This usually happens when on the zone protection profile you configure "Block-IP" for Reconnaissance protection (shown below), then the firewall will block that source IP for a configured duration of time.

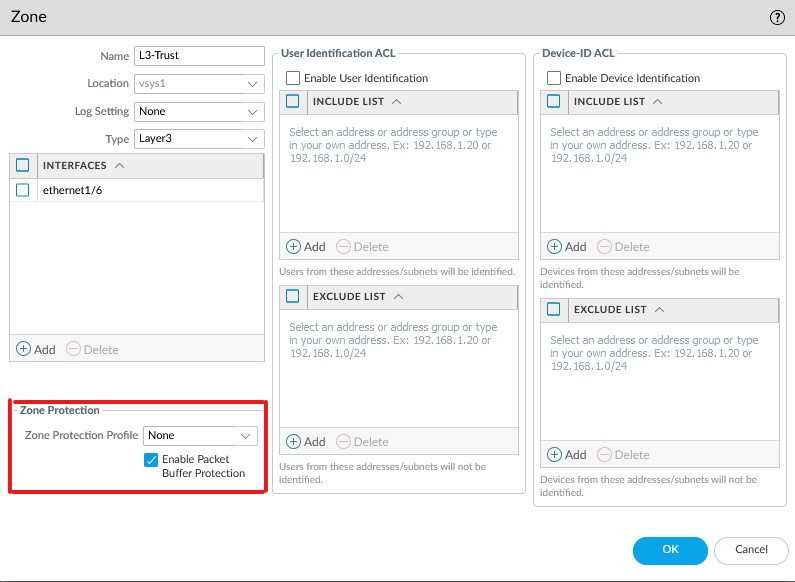

1.  Option 1: Remove the zone protection profile from the trust zone

2.  Option 2: Add source exclusion to the list of IP address

3.  Option 3: Reduce the block timer (GUI:Network > Network Profiles > Zone Protection > Zone Protection Profile > Reconnaissance Protection
   > Action > "Select Scan type" > Action > Duration (sec))  and increase the threshold as per your requirement.
4. After implementing any of the options, clear the dos block-table from CLI using the command below:

> debug dataplane reset dos block-table

5.  Run the command below again to confirm the IP is not in the block list anymore

> debug dataplane show dos block-table

• Zone Protection Recommendations
• Configure Reconnaissance Protection
• Note that zone protection is applied to the ingress interface. To protect against flood scans, it should be applied to the untrusted zone.
• If you have applied zone protection profile on the trusted zone, confirm if the IP address is on the dos block-table from the CLI

> debug dataplane show dos block-table

entp:0x800000024792c828, bucket:100, entry:0
Key:
vsys_id:1, src_zone:1
ip:10.75.1.11, dst_ip:67.195.228.84
is_ipv6:0, is_src_dst_both:1

Value:
block_until:38557 (Unblock after:106 sec)
