Unable to Save Syslog Server Profile with Error “Operation Failed: Node can be at most 2048 Characters”

• Configure Syslog Server Profile
• Click "OK" after configuration.
• Error message "Operation Failed: Node can be at most 2048 Characters" message is displayed

• Palo Alto Firewalls or Panorama
• PAN-OS 10.2.0
• Syslog Profile

• CEF custom log formats have been defined within the syslog server profile configuration
• The length of some of them have surpassed the number of characters supported (2048)

Delete the non-printable characters from the CEF style format causing the issue.

1. STEP 1. Identify the log type causing the issue. This can be found in the Operation Failed window received when trying to save the Syslog Server Profile configuration.

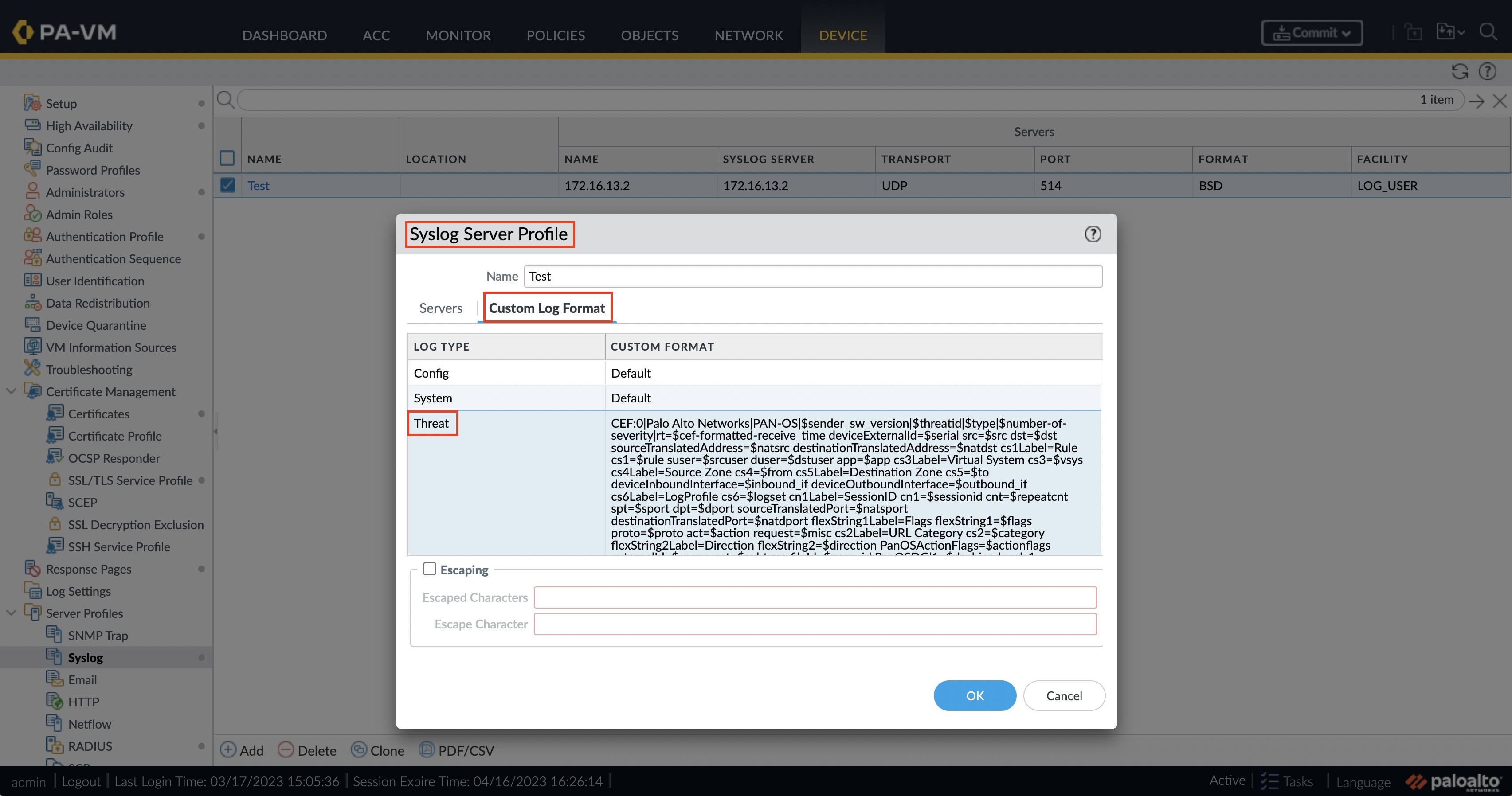

2. STEP 2. In the Syslog Server Profile window navigate to Custom Log Format tab and look for the log type at hand. Click the log format area in order to edit.

3. STEP 3. In the Edit Log Format window copy the CEF custom log format and paste it in a text editor like Notepad++ or Sublime Text.

4. STEP 4. Enable the text editor to show non-printable characters. When directly copying/pasting CEF log formats from PAN-OS integration PDF guides, it is common to see CR/LF characters appended to the end of each line.

The process to show non-printable characters is different between text editors. For Notepad++ navigate to View > Show Symbol > Show All Characters.

5. STEP 5. Manually delete CR/LF characters using the text editor and paste the cleared output in the Edit Log Format window. Select OK to save changes, then select OK in the Syslog Server Profile window.

6. STEP 6. If the issue persists after removing non-printable characters, it will be needed to delete some fields from the log to keep reducing the length to less than 2048 characters.

In this example, the following fields were removed from Threat log:

PanDstEDL=$dst_edl PanGPHostID=$hostid PanEPSerial=$serialnumber PanSrcDAG=$src_dag PanDstDAG=$dst_dag PanHASessionOwner=$session_owner PanTimeHighRes=$high_res_timestamp PanASServiceType=$nssai_sst PanASServiceDiff=$nssai_sd

Refer Syslog Field Descriptions for description ofeach field depending on the log type:

7. STEP 7. Paste the cleared output in the Edit Log Format window. Select OK to save changes, then select OK in the Syslog Server Profile window. If the length of the CEF style format is under 2048 characters, the configuration should be saved with no errors.
