Question


What is the default behaviour of Palo Alto firewall when AS path prepend is configured?



Answer

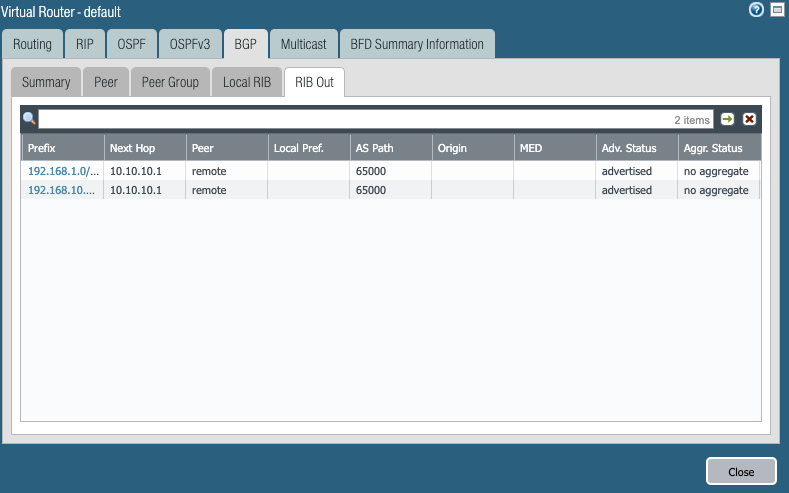

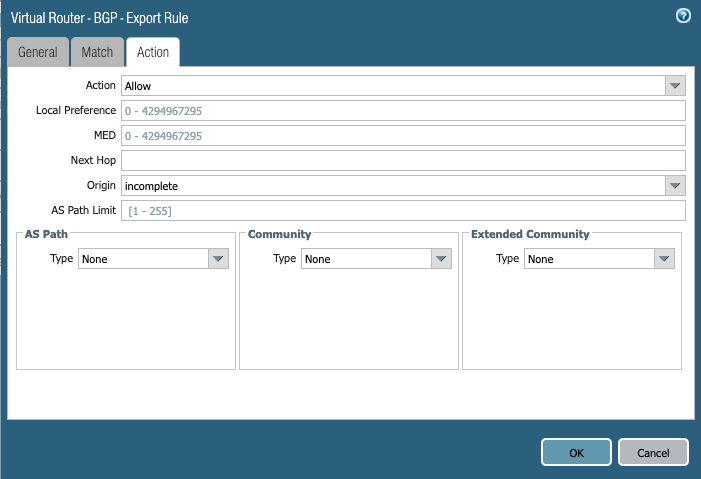

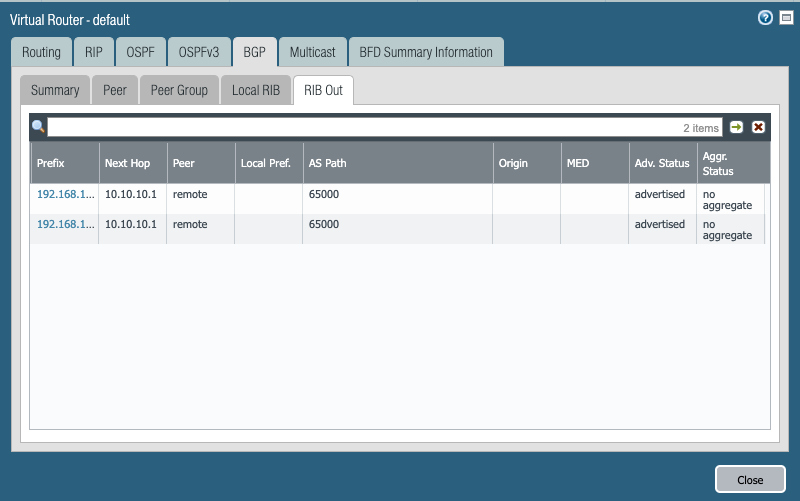

  • When there is no AS path prepend configured we will see the Local AS number only once in the rib-out table.
       User-added image   User-added image

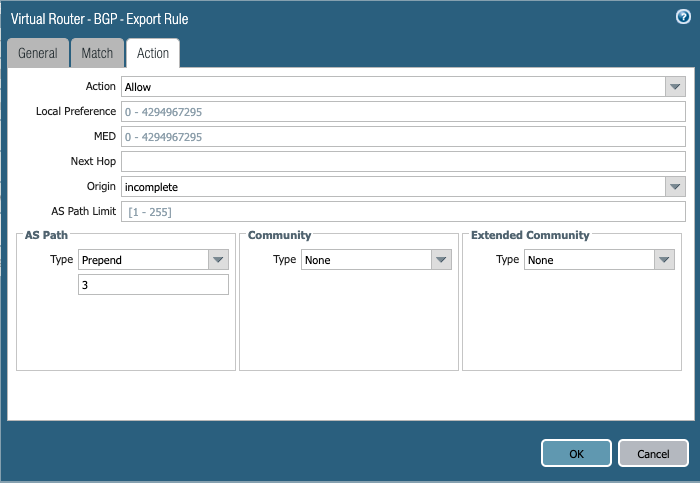

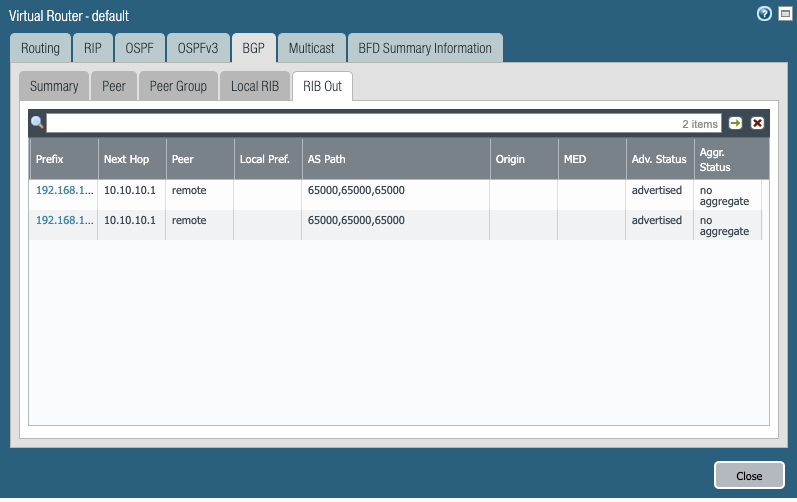

  • If we configure AS path prepend value as 3 then in the rib-out table we will see AS numbers only 3 times and not 4 times.
       User-added image     User-added image

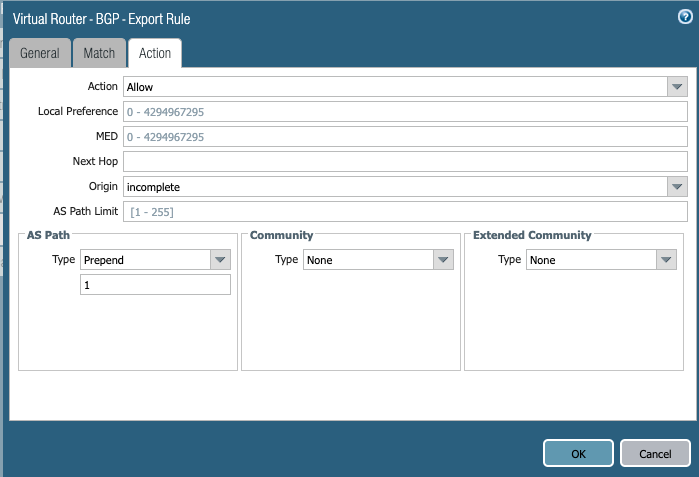

  • If we configure AS path prepend value as 1 then will see AS numbers only once in the rib-out table.
       User-added image     User-added image
  • This is an expected behaviour on Palo Alto firewalls.
  • There is no RFC which explains how the AS path prepend must be implemented. Hence the implementation of the same is open interpretation
