ID XML API窗口代理上的用户设置 UID
31561
Created On 03/20/19 16:23 PM - Last Modified 03/26/21 18:22 PM
Symptom
在 PanOS 8.0.x 和以后,当使用 XML API 呼叫在 IP 基于窗口的用户代理上添加/删除用户映射时 ID ,呼叫不会向代理添加必要的映射,随后流量出现故障。 这被认为是真实的,即使 XML API 's被视为工作没有任何问题,在以前的版本。
Cause
在 PanOS 8.0.x 及以上,基于窗口的用户 ID 代理现在要求 API 客户使用受信任的 Root 服务器签发的身份证明进行身份验证 CA 。 这样做是为了避免列出任何恶意映射或任何未授权的用户恶意删除任何映射。
Resolution
随着 XML API IP 在 8.0 中重新引入基于 Windows 的用户代理的用户映射添加目的 ID 的使用,还需要使用客户端上的客户端证书 API 进行身份验证。
以下是客户认证的广泛要求
:1. 客户端证书可以由域/企业根 CA 或 Firewall CA 服务器直接签发。
2. 颁发 CA 证书需要放置在安装基于 Windows 的代理的服务器/主机上的"可信根证书管理局"证书商店 UID 。
3. 客户需要使用已颁发的证书连接到窗口 UID 代理。
向客户签发身份证明后,请考虑使用以下步骤来配置和验证 XML API 与窗口代理的连接 UID :
+在linux机上,客户证书应以。pem格式导入。 在这种情况下,客户端证书是"cert_xmlapi_clientcert.pem"
– 使用下面的命令来测试向使用者发送消息
$ cat userid.xml | openssl s_client -cert cert_xmlapi_clientcert.pem -connect 10.193.113.143:5006
• 以下是在此过程中使用的证书信息的示例解码。
~$ openssl x509 -in cert_xmlapi_clientcert.pem -text -noout Certificate: Data: Version: 3 (0x2) Serial Number: 22 (0x16) Signature Algorithm: sha256WithRSAEncryption Issuer: CN=paloaltonetworks.local Validity Not Before: Jul 19 10:16:54 2017 GMT Not After : Jul 19 10:16:54 2018 GMT Subject: CN=xmlapi.paloaltonetworks.local Subject Public Key Info: Public Key Algorithm: rsaEncryption Public-Key: (2048 bit) Modulus: 00:d7:06:bf:46:86:1a:7d:36:4e:78:01:dd:4e:27: ff:7a:b6:0a:70:f6:06:8c:7f:35:c0:e8:07:ef:1c: e8:9d:a5:bb:c9:7b:b1:77:26:2a:7a:6e:dd:8b:0d: 09:7e:72:41:5a:0b:23:2c:96:08:ed:9e:4b:9b:ee: 2c:11:66:66:c5:b8:ba:9a:11:17:79:65:54:5a:ab: 99:5a:1e:5f:2c:71:af:a4:da:75:68:1a:11:ea:a0: 6e:a1:5d:db:11:bd:29:94:a5:fb:dc:cb:bf:33:36: b8:96:40:04:7d:5d:3a:32:24:0b:d1:c3:75:9c:a2: f8:ba:dd:28:87:6f:50:9f:45:3d:02:3d:1d:b0:bf: 32:ba:93:53:b8:07:4f:72:ad:fb:e4:72:5a:4d:92: 83:3d:b3:e4:dc:94:20:7b:00:e9:86:d6:79:e7:6f: 60:68:c0:a5:66:1a:a9:cf:83:24:f7:c6:ba:7a:60: df:db:fe:5a:de:27:6b:db:fd:b9:1a:7e:2e:e7:40: 3d:50:38:00:2a:71:71:2b:5f:f6:8e:b7:b6:87:bd: 00:7f:48:82:68:14:ce:a4:0b:92:51:2c:d2:8b:b8: 04:aa:6c:a3:aa:a9:74:99:80:cc:67:3e:5b:3c:9d: 3e:fc:0f:53:37:3f:0d:14:42:db:16:6d:f1:0a:fb: 92:55 Exponent: 65537 (0x10001) X509v3 extensions: X509v3 Basic Constraints: CA:FALSE X509v3 Key Usage: Digital Signature, Key Encipherment, Data Encipherment, Key Agreement X509v3 Extended Key Usage: TLS Web Server Authentication, TLS Web Client Authentication, IPSec End System X509v3 Authority Key Identifier: 0. X509v3 Subject Key Identifier: 5B:97:AF:6D:D2:99:E5:FE:AE:9E:24:A3:4B:F2:F6:7E:57:94:30:30 Signature Algorithm: sha256WithRSAEncryption bc:53:f4:68:8c:36:48:42:2f:3e:c0:43:ed:1e:a6:e6:96:61: c5:53:6a:37:42:ca:c6:e2:4c:be:76:3d:a5:18:70:f3:1a:9b: a1:42:d0:37:c9:3d:ff:dd:13:8c:55:a4:c6:aa:da:57:a1:19: 6e:f0:ed:82:6c:fd:b4:57:f9:26:21:46:d5:cd:95:8c:81:5e: ec:15:0f:86:4a:f8:f3:dc:d8:3b:50:bf:c9:cf:52:ec:80:62: 10:0b:7c:37:2c:b6:8e:85:45:23:bf:03:46:ee:c8:ab:5a:1a: 09:89:af:fb:4d:59:23:61:00:dc:73:9f:78:5e:fb:98:cf:cb: ca:d1:28:cb:0a:a6:e8:35:fe:b6:b1:64:bd:48:2b:d0:15:df: 9d:28:1f:5a:e7:0b:72:fe:f8:3a:c3:0a:f6:25:ef:eb:f4:80: 04:fc:01:f0:a9:2f:d9:31:e3:dd:42:18:df:70:8f:44:78:89: 0c:61:a4:c8:eb:8e:d7:0c:53:a3:f6:29:49:d6:7a:8d:8a:a5: ef:f7:c4:c2:73:21:25:dd:e9:3c:58:ba:5d:6f:c7:25:a8:a1: f5:d3:4a:b7:9e:81:d2:44:19:38:7f:65:23:48:e7:ba:16:35: 3f:ff:e5:e6:ff:86:9d:db:31:2c:74:25:d8:57:cc:2d:89:2b: db:02:c1:aa
• 一旦客户端被验证为使用正确的证书, CA API 在用户代理运行的 Windows 服务器上安装签发客户端证书的 ID 证书,以便将其验证为受信任的证书。
+要做到这一点,从窗口运行窗口运行命令"mmc"。 MMC控制台打开后,请从文件菜单中添加"证书"快照。 添加机器帐户的快照。

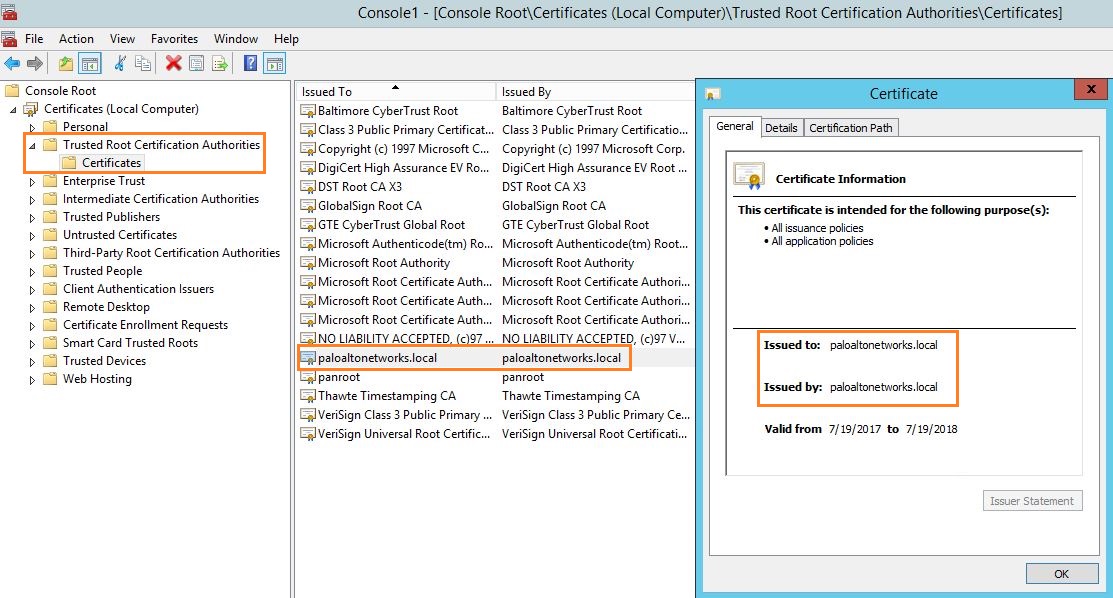

• 添加后,请将发件人 CA 证书放入"证书(本地计算机)->可信根证书机构->证书
",一旦证书放置在"可信根证书管理局"商店,请重新启动用户 ID 代理服务,因为服务在初始启动期间只读一次证书商店。

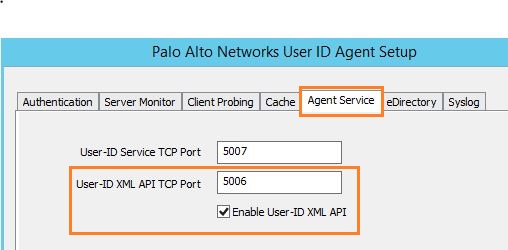

• 重新启动服务后,现在使 UID 代理能够 XML API 接收呼叫,使用"用户身份识别->设置->编辑->代理服务"下的选项,并选择"启用用户 ID XML API "选项,并指定下文所示的端口:

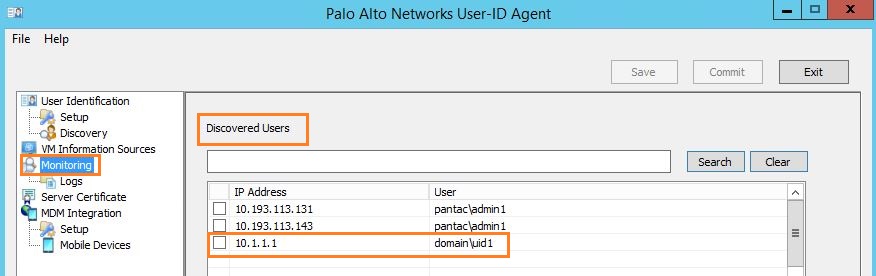

完成上述步骤后,您将开始看到 IP 下面列出的用户映射:
验证:
成功连接到 XMPALI 客户端、证书验证和用户映射等的日志可以在 ID 下面列出的窗口服务器上的用户代理 UaDebug 文件中看到:3:10:22:314[ Info 703]: New xml api connection 10.193.113.134 : 1959:1497568953. 07/19/17 13:10:22:314[ Info 747]: XML api thread 0 from 10.193.113.134 : 1959 is started. 07/19/17 13:10:22:314[Debug 355]: Event: type="XML API connection" name="10.193.113.134" status="Connected" 07/19/17 13:10:22:314[Debug 1778]: Device thread 0 send server status 10.193.113.134 : 1959 Connected (XML API) 07/19/17 13:10:22:314[Verbo 1264]: send out 268B msg post:server_status time 1500462622 with 0B body 07/19/17 13:10:22:314[Verbo 209]: CStrPairUpdate 10.193.113.134 : 1959 Connected (XML API) is freed. 07/19/17 13:10:22:317[Debug 419]: Verifying cert = /CN=xmlapi.paloaltonetworks.local 07/19/17 13:10:22:317[Debug 465]: A new certificate context has been created for /CN=xmlapi.paloaltonetworks.local. 07/19/17 13:10:22:318[Debug 381]: Got the issuer context for paloaltonetworks.local 07/19/17 13:10:22:318[ Info 371]: The self signed issuer is found in the trust store 07/19/17 13:10:22:318[Debug 481]: Certificate with subject : /CN=xmlapi.paloaltonetworks.local is valid 07/19/17 13:10:22:318[Debug 419]: Verifying cert = /CN=xmlapi.paloaltonetworks.local 07/19/17 13:10:22:318[Debug 465]: A new certificate context has been created for /CN=xmlapi.paloaltonetworks.local. 07/19/17 13:10:22:318[Debug 381]: Got the issuer context for paloaltonetworks.local 07/19/17 13:10:22:318[ Info 371]: The self signed issuer is found in the trust store 07/19/17 13:10:22:318[Debug 481]: Certificate with subject : /CN=xmlapi.paloaltonetworks.local is valid 07/19/17 13:10:22:318[Debug 419]: Verifying cert = /CN=xmlapi.paloaltonetworks.local 07/19/17 13:10:22:318[Debug 465]: A new certificate context has been created for /CN=xmlapi.paloaltonetworks.local. 07/19/17 13:10:22:319[Debug 381]: Got the issuer context for paloaltonetworks.local 07/19/17 13:10:22:319[ Info 371]: The self signed issuer is found in the trust store 07/19/17 13:10:22:319[Debug 481]: Certificate with subject : /CN=xmlapi.paloaltonetworks.local is valid 07/19/17 13:10:22:327[ Info 619]: XML api thread 0 accept finished 07/19/17 13:10:22:327[Debug 659]: XML api thread 0 SSL subject: /CN=xmlapi.paloaltonetworks.local 07/19/17 13:10:22:327[Debug 672]: XML api thread 0 SSL issuer: /CN=paloaltonetworks.local 07/19/17 13:10:22:328[Debug 325]: UserIpMap: IP 10.1.1.1 with login name domain\uid1 and timeout 1200 is added type (1). tId (3736) 07/19/17 13:10:22:328[Debug 1060]: Adding ip to chg tbl 10.1.1.1 for Add 07/19/17 13:10:22:332[ Info 580]: XML api thread 0 timeout or SSL error: 5-10053. 07/19/17 13:10:22:332[Debug 590]: XML api thread 0 ssl shutdown. 07/19/17 13:10:22:332[Verbo 1264]: send out 163B msg post:xml_data time 1500462622 with 174B body 07/19/17 13:10:22:332[Debug 355]: Event: type="XML API connection" name="10.193.113.134" status="Disconnected" 07/19/17 13:10:22:333[Debug 415]: XML api thread 0 exits. 07/19/17 13:10:22:333[ Info 417]: XML api connection 10.193.113.134 : 1959 closed. 07/19/17 13:10:22:333[Debug 431]: All XML api connection stopped! 07/19/17 13:10:22:370[Verbo 1264]: send out 163B msg post:xml_data time 1500462622 with 174B body 07/19/17 13:10:22:384[Debug 472]: UserIpMap: IP (10.1.1.1) Username (domain\uid1) queued for xmission to firewall 07/19/17 13:10:22:435[Debug 1778]: Device thread 0 send server status 10.193.113.134 : 1959 Disconnected (XML API) 07/19/17 13:10:22:435[Verbo 1264]: send out 271B msg post:server_status time 1500462622 with 0B body 07/19/17 13:10:22:435[Verbo 209]: CStrPairUpdate 10.193.113.134 : 1959 Disconnected (XML API) is freed.
