¿Por qué una interfaz del par Vwire muestra "apagado"?
48953
Created On 04/07/19 13:07 PM - Last Modified 03/26/21 17:35 PM
Question
¿Por qué una interfaz del par de cables virtuales muestra apagado?
> show interface all
<snip>
ethernet1/5 20 ukn/ukn/down(power-down) 00:1b:17:6b:e0:14
<snip>Environment
Sistema con al menos un conjunto de interfaces en un par de cables virtuales.
Answer
En las interfaces del par vwire, el paso del estado del link está habilitado de forma predeterminada.
Cuando una interfaz baja, PAN-OS apaga el otro link del par vwire debido al paso del link-state a través.
> show interface all <snip> ethernet1/4 19 ukn/ukn/down(autoneg) 00:1b:17:6b:e0:13 <<< Interface that is down due to physical link down ethernet1/5 20 ukn/ukn/down(power-down) 00:1b:17:6b:e0:14 <<< Interface powered down by PAN-OS <snip>

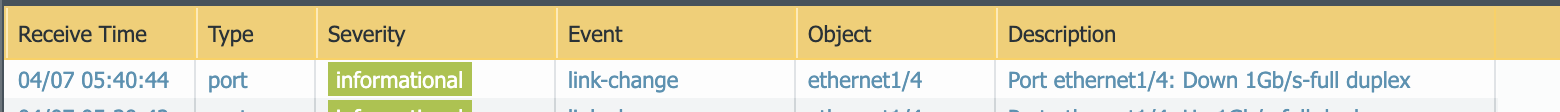

Como alternativa, puede comprobar la interfaz webde registros del
CLI sistema: :
user@firewall> show log system direction equal backward eventid equal link-change Time Severity Subtype Object EventID ID Description =============================================================================== 2019/04/07 05:40:44 info port ethern link-ch 0 Port ethernet1/4: Down 1Gb/s-full duplex
El registro del sistema, sólo registra la interfaz que va físicamente hacia abajo. Para obtener más información, consulte los siguientes artículos:
https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClqMCAS
también se puede comprobarhttps://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClzQCAS
registrobrdagent:
admin@firewall> less dp0-log brdagent.log 2019-04-07 05:40:44.600 -0700 Port 4: (port_linked) PHY shows down, val 0x7949 2019-04-07 05:40:44.601 -0700 Port 4: Down 1Gb/s-full duplex 2019-04-07 05:40:44.602 -0700 PORT4: board_port_autoneg_enabled -> board_port_autoneg, link: 0, mode: 1 2019-04-07 05:40:44.620 -0700 Port 5: POWERDOWN command received <<< 2019-04-07 05:40:44.621 -0700 PORT5: board_port_autoneg_enabled -> board_port_powerdown, link: 0, mode: 1 2019-04-07 05:40:44.621 -0700 Port 5: Powered down
"comando POWERDOWN recibido" indica el comando brdagent recibido de mprelay para apagar la interfaz.
mprelay log se puede marcar por razones que muestran la interfaz bajando.
Se detecta el primer link Ethernet1/4 abajo y se detecta inmediatamente link-state-pass-through:
admin@firewall> less dp0-log mprelay.log 2019-04-07 05:40:44.608 -0700 Interface ethernnet1/4 link down, changed from cached state: yes 2019-04-07 05:40:44.608 -0700 IFMon: vwire interface ethernet1/4 link down, check link-state-pass-through
Entonces el Ethernet1/5 se fija a abajo:
2019-04-07 05:40:44.609 -0700 Set vwire interface ethernet1/5 link state to down 2019-04-07 05:40:44.609 -0700 get interface link properties: name ethernet1/5 2019-04-07 05:40:44.617 -0700 Interface ethernet1/5 current state, speed 3 duplex 2 link 1 2019-04-07 05:40:44.617 -0700 set interface link properties: name ethernet1/5 speed auto duplex auto state down disable no 2019-04-07 05:40:44.624 -0700 IFMon: post event interface ethernet1/4 link down 2019-04-07 05:40:44.624 -0700 IFMon: scheduled link-passthrough scan at 15 seconds later 2019-04-07 05:40:44.625 -0700 IFMon: sys.s1.p5.status changed 2019-04-07 05:40:44.625 -0700 Interface ethernnet1/5 link down, changed from cached state: no 2019-04-07 05:40:44.625 -0700 Interface 5 mode changed from 1 to 3 2019-04-07 05:40:44.625 -0700 Interface 5, if_admin_mode_mask=0x30
Una vez que la interfaz que se trae físicamente hacia arriba, la interfaz apagada se enciende.
mprelay log:
2019-04-07 06:02:56.175 -0700 IFMon: sys.s1.p4.status changed 2019-04-07 06:02:56.176 -0700 Interface ethernnet1/4 link up, changed from cached state: yes 2019-04-07 06:02:56.176 -0700 IFMon: vwire interface ethernet1/4 link up, check link-state-pass-through 2019-04-07 06:02:56.176 -0700 Set vwire interface ethernet1/5 link state to up
registro bradagent:
2019-04-07 06:02:56.176 -0700 PORT4: board_port_autoneg -> board_port_autoneg_linked, link: 1, mode: 1 2019-04-07 06:02:56.176 -0700 Port 4: Up 1Gb/s-full duplex 2019-04-07 06:02:56.179 -0700 Port 4: MAC enabled 2019-04-07 06:02:56.179 -0700 PORT4: board_port_autoneg_linked -> board_port_autoneg_enabled, link: 1, mode: 1 2019-04-07 06:02:56.187 -0700 Port 5: AUTONEG command received 2019-04-07 06:02:56.187 -0700 PORT5: board_port_powerdown -> board_port_reset, link: 0, mode: 3 2019-04-07 06:02:56.187 -0700 Port 5: Power up
Additional Information
¿Por qué pasa link-state?
https://docs.paloaltonetworks.com/ pan-os /7-1/ pan-os -web-interface-help/network/network-virtual-wires
¿Cómo habilitar/deshabilitar el paso de estado de enlace?
https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClMiCAK
