How to Configure a Schedule for a Security Policy
112459
Created On 09/27/18 11:09 AM - Last Modified 06/15/23 23:01 PM
Environment
PAN-OS 9.1 and above
Resolution
- First, create the Schedule either from the GUI or CLI.

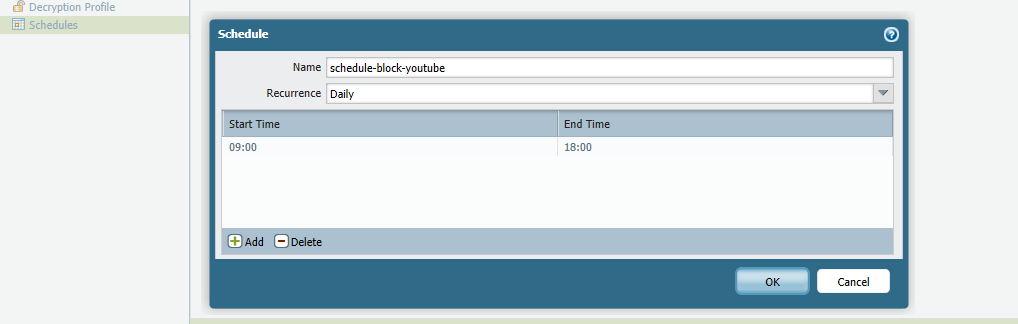

- GUI: Go to Objects > Schedules then click Add. Choose daily, weekly or non-recurring. To select multiple days during the week, choose weekly, day of week, start time, end time, click OK.
-
CLI: Use the set schedule command from configure mode
> configure # set schedule schedule-block-youtube recurring daily 09:00-18:00
- GUI: Go to Objects > Schedules then click Add. Choose daily, weekly or non-recurring. To select multiple days during the week, choose weekly, day of week, start time, end time, click OK.
- Attach the Schedule Object from GUI or CLI to a current Security Policy or Create a Security Policy Rule

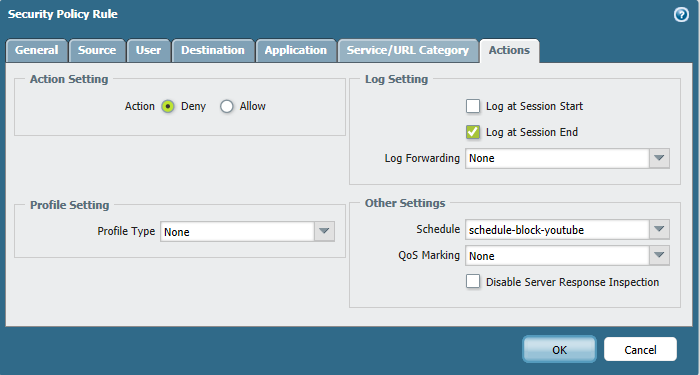

- GUI: Go to POLICIES > Security, select the Security Policy Rule, click Actions tab, click the drop-down box for Schedule, select the created Schedule Object from first step. Click OK
- CLI: Use the set rulebase security rules command from configure mode
> config # set rulebase security rules block-youtube from L3-Trust to L3-Untrust source any destination any application youtube schedule schedule-block-youtube service any log-end yes action deny
- GUI: Go to POLICIES > Security, select the Security Policy Rule, click Actions tab, click the drop-down box for Schedule, select the created Schedule Object from first step. Click OK
- Commit the change
Additional Information
- Note: Time Zone for Schedule is based on system time configured on Device > Setup > Management > General Settings - Time Zone
- See Policy Object: Schedules for more information
