URL Filtering - Dynamic Block List - External Block List EDL

163002
Created On 09/26/18 13:44 PM - Last Modified 08/05/20 22:21 PM


Symptom


In earlier versions of PAN-OS, Dynamic Block List (EDL - External Dynamic List) or External Block Lists (EBL) allowed a firewall administrator to block a list of IP subnets or ranges based on an external file containing the IPs.

Starting with PAN-OS 7.1, blocking like this has become easier than ever with the introduction of URLs as a separate list type.



Environment


  • PAN-OS 7.1
  • External Dynamic List (EDL)


Resolution




Requirements
Each URL list is treated as a category, using the name of the list as the category name.

  • Those categories are available in URL filtering profiles and in the security rules.
  • Updates can be set to 5 minutes, hourly, daily, weekly, or monthly.
  • If a 5-minute interval is set, only changes to list content will trigger a commit, and only once-per-hour.
  • If the list is updated on the external site, but it’s not seen on the local firewall, check the config audit/candidate config to see the new items pulled from the list.
  • The URL list can be hosted on an HTTPS site. All validation will be checked (CA validation, CN/SAN check, expiration check, OCSP, & CRL).  Note that this validation is only supported in PAN-OS 8.0 and later (https://www.paloaltonetworks.com/documentation/80/pan-os/newfeaturesguide/authentication-features/authentication-for-external-dynamic-lists).
Hardware Specs
PA-200, PA-500, PA-2000, PA-3000, PA-4000 and PA-VM platforms
  • 30 lists combined (IP + DNS + URL).
  • 50,000 IPs total with no individual list limitation.
  • 50,000 total DNS + URLs combined, no limit per list.

PA-5000 & PA-7000 series

  • 30 lists combined (IP + DNS + URL).
  • 150,000 IPs total with no individual list limitation.
  • 50,000 total DNS + URLs combined, no limit per list.

Note: If more than the maximum 50K URLs is used, the firewall will use the first 50K and truncate the list. A system log is generated for this event.

Configuration
Step 1.

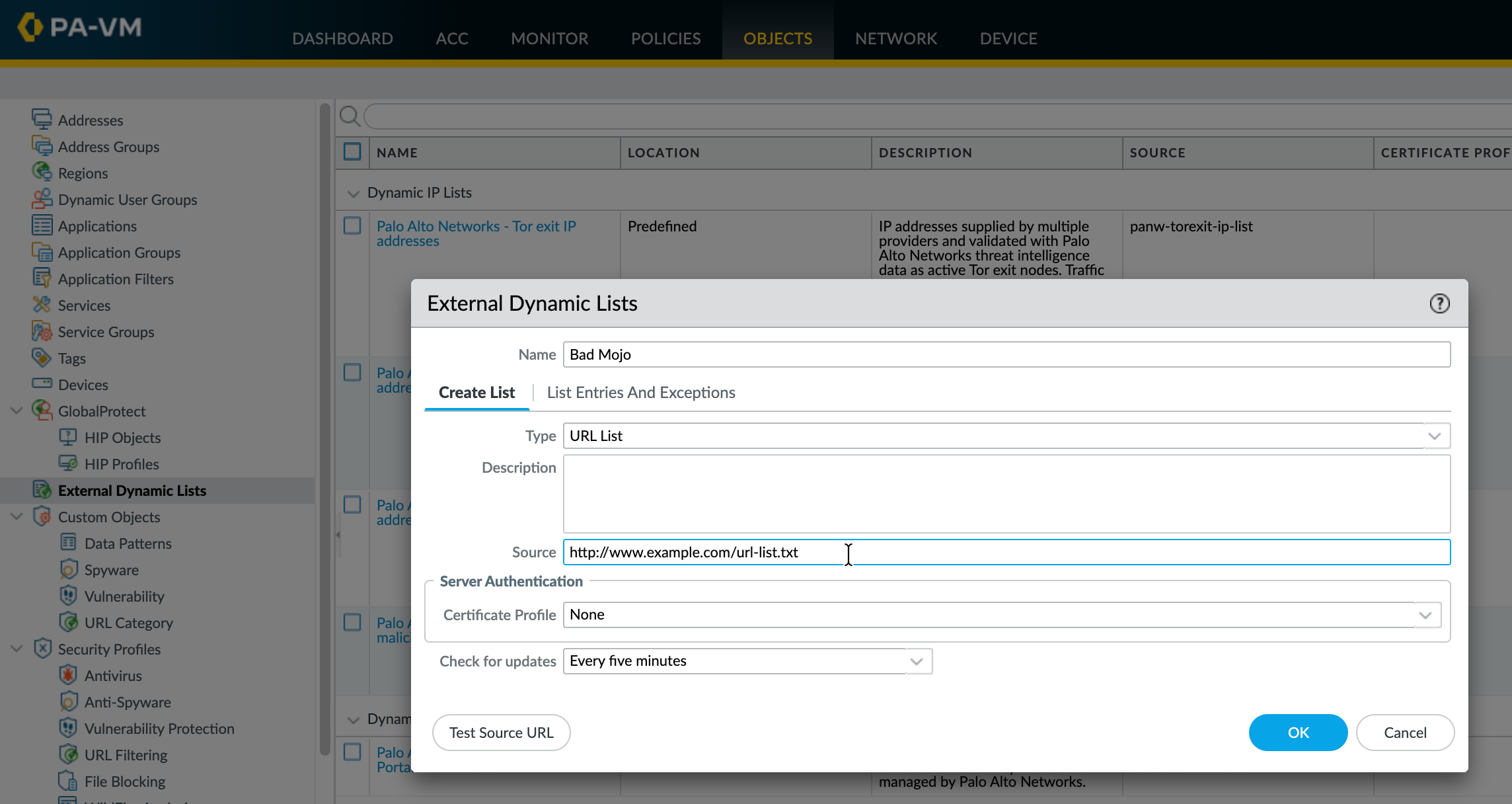

To create a new External list, navigate to Objects > External Dynamic Lists > Add. I used 'Bad Mojo' as the name. Add the external Source. I used "http://www.example.com/url-list.txt". Also notice the 'repeat.' which is set to 'Five Minute' as the refresh rate for this external list.

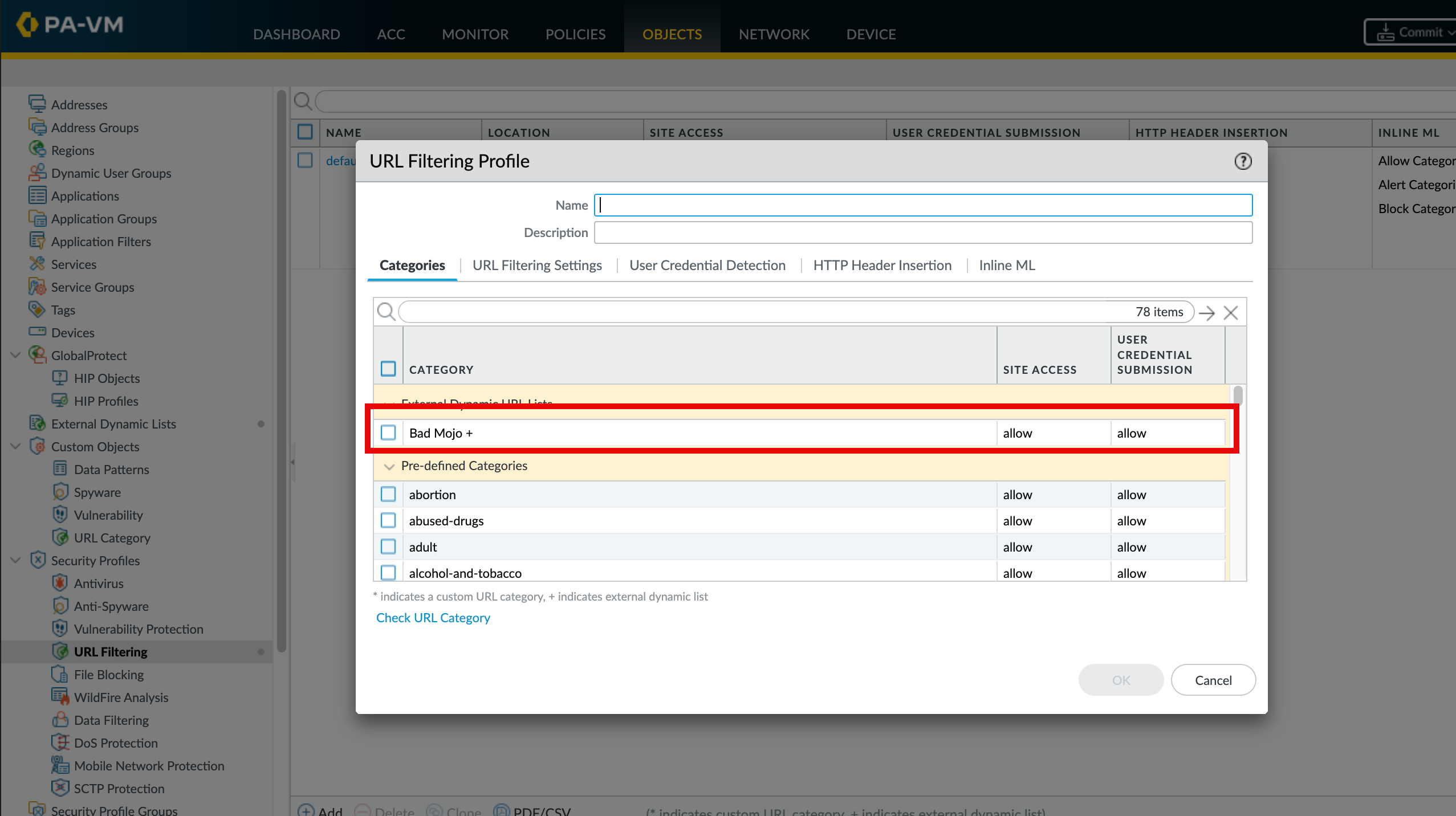

Step 2. To create a New URL Filtering Profile inside Objects > Security Profiles > URL Filtering > Add a new profile. Scroll to the bottom to see the newly created list.
Note: Action is 'allow' for new profiles created after the EDL is created.

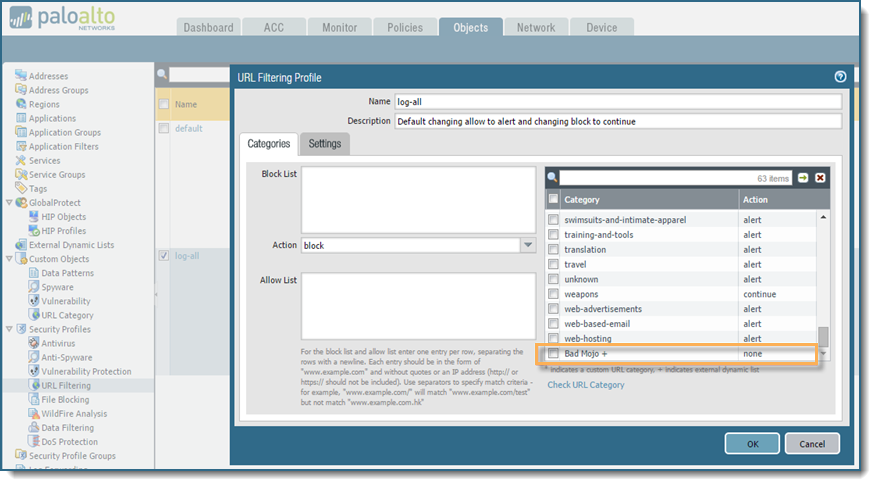

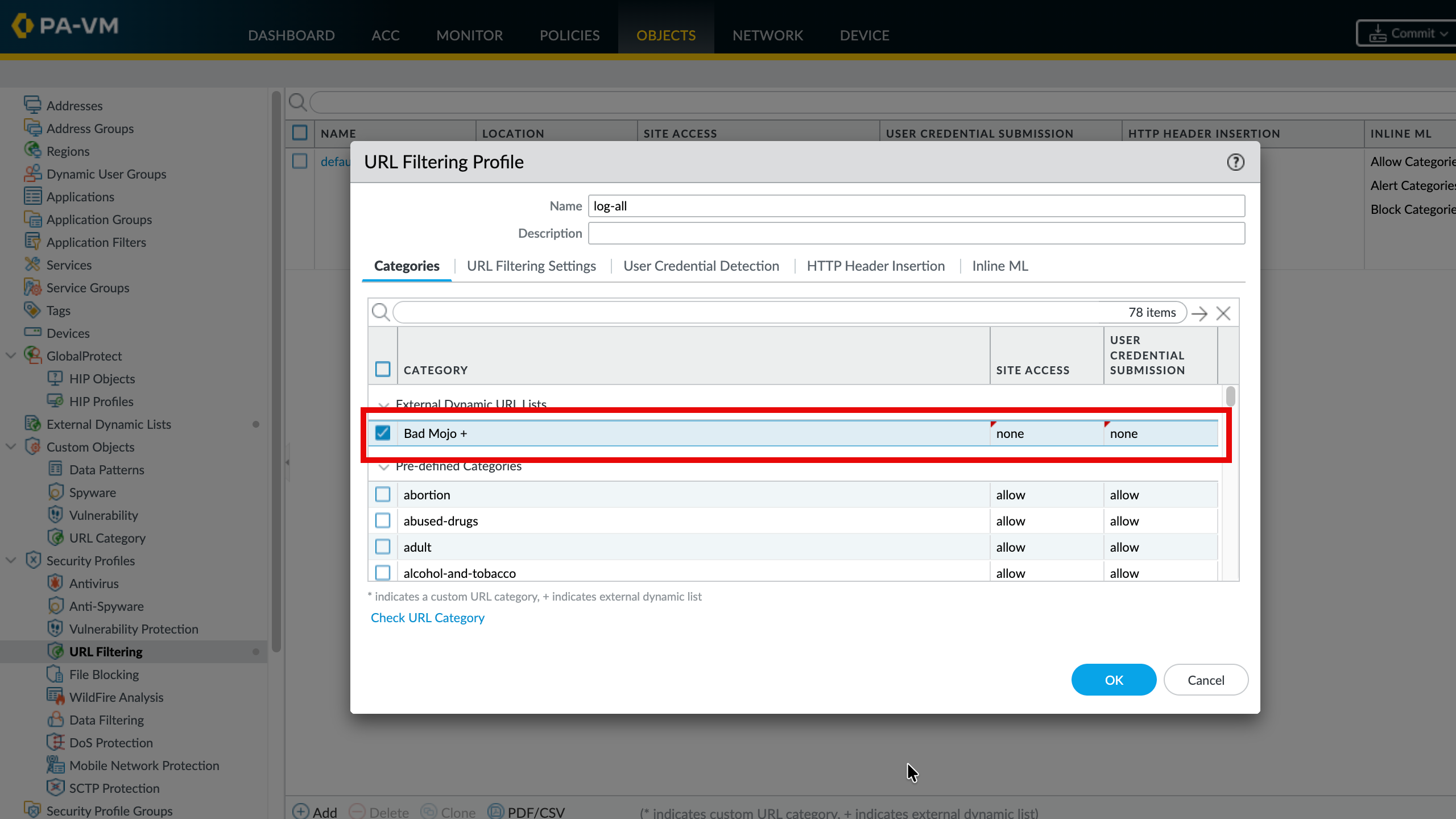

Step 3. To edit an existing profile, choose Objects > Security Profiles > URL Filtering, Edit it by clicking on the name.
Note: Action is 'none' until an admin changes it. Same behavior as custom URL categories.

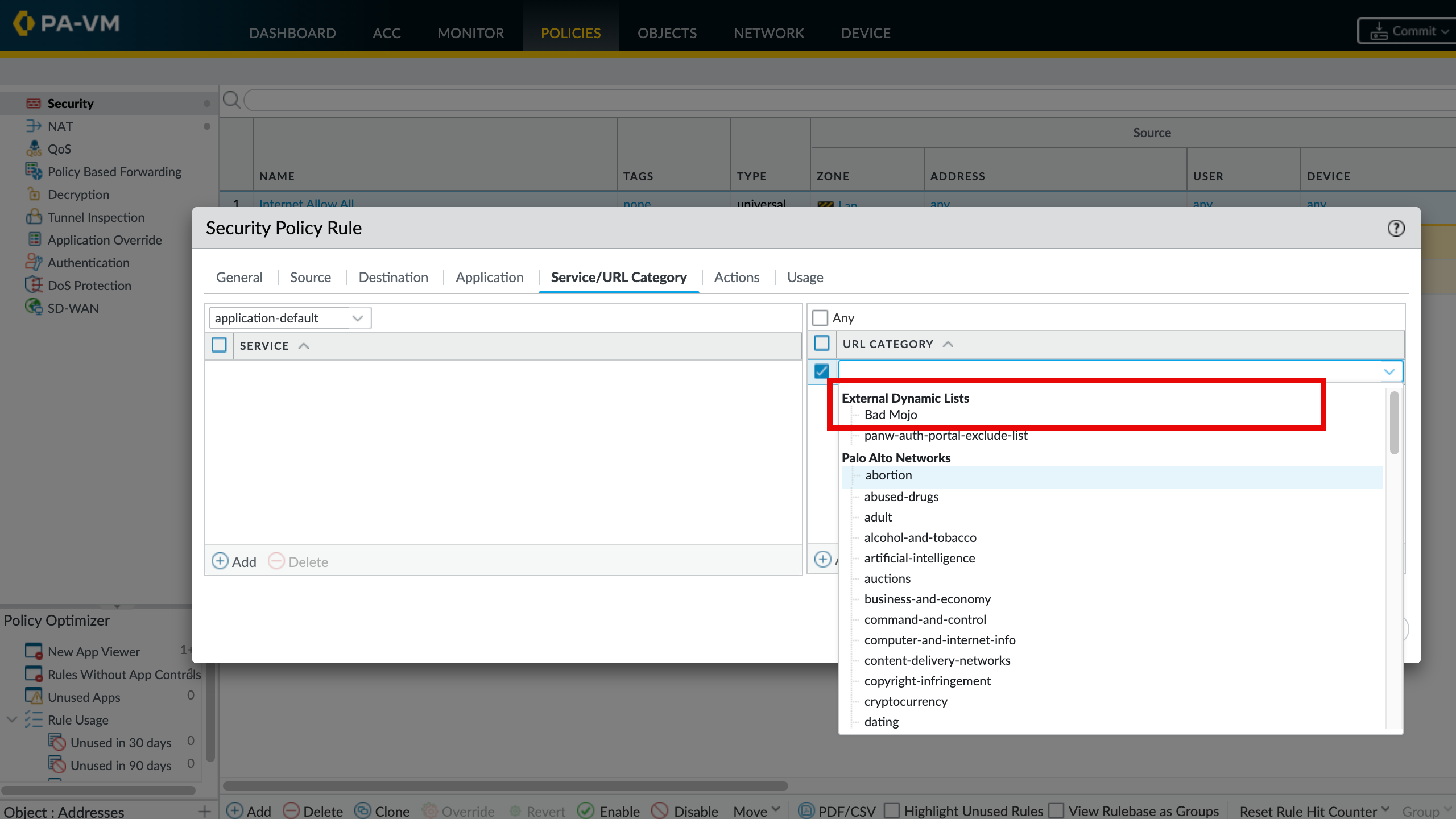

Step 4. Inside  a Secutiy Policy View (Policies > Security), click on a rule name to edit the rule, then inside the Service/URL Category, you will see the Bad Mojo list under External Dynamic Lists:


Step 5. Commit to enable this list.

List format requirements

  • List must be a plain text document (no HTML, no PDF, etc.).
  • Scheme is optional, and will be truncated if found – even if it is incomplete.
  • http:// is not needed.
  • Wildcards (*) are supported.
  • Maximum length per line is 1024 characters.
  • Double-byte characters not supported.
  • If specifying a domain, use both formats (as with custom URL categories):
    • example.com
    • *.example.com
CLI changes (creating dynamic block list)
Multi-vsys environment:
> set shared/<vsys vsys> external-list <tab>

{displays a list of current added lists}
<name>


> set shared/<vsys vsys1> external-list <name>

+ description description
+ url         url
+ type        type
> recurring   recurring
<Enter> Finish input


> set shared/<vsys vsys1> external-list <name> type <tab>

+ domain Domain List
+ ip IP List
+ url URL List


Single-vsys environment

> set external-list <tab>

-list of current added lists
<name>


> set external-list <name>

+ description description
+ url       url
+ type      type


> recurring recurring
<Enter> Finish input


> set external-list <name> type <tab>

+ domain Domain List
+ ip IP List
+ url URL List


Panorama:

> set shared/<device-group dg name> external-list <tab>

{displays a list of current added lists}
<name>


> set shared/device-group dg name> external-list <name>

+ description description
+ url       url
+ type      type
+ recurring recurring
<Enter> Finish input



> set shared/device-group dg name> external-list <name> type <tab>

+ domain Domain List
+ ip IP List
+ url URL List


CLI changes (refresh & show commands)

> request system external-list show type

+ domain Domain list type
+ ip    IP list type
+ url   URL list type


> request system external-list show type url name <tab>

+ edl-url1  edl-url1
+ edl-url2  edl-url2
+ <name>    <name>


> request system external-list show type url name edl-url1

{displays list of URL entries}


> request system external-list refresh type

+ domain Domain list type
+ ip   IP list type
+ url  URL list type


> request system external-list refresh type url name <tab>

+ edl-url1 edl-url1
+ edl-url2 edl-url2
+ <name>   <name>


> request system external-list refresh type url name edl-url1


Panorama
When managing versions older than 7.1, only 'IP' type external block lists may be used.

Objects of type 'url' will be stripped from the config when pushed to a 7.0 or older PAN-OS version.

  • If a policy references a URL list type, commit will fail.
