How to Verify MTU Size Exceeded

Overview

This document describes how to verify MTU size and configure it on the interface.

Details

Look for the following global counters which indicate a drop on flow_fwd_mtu_exceeded:

> show counter global filter packet-filter yes delta yes

:flow_fwd_mtu_exceeded    7   0 info      flow     forward   Packets lengths exceeded MTU

:flow_fwd_ip_df    5        0 drop      flow   forward   Packets dropped: exceeded MTU but DF bit present

The above counters appear when the MTU size is less than 1500. If drops are seen on the counters specified above, set the MTU size for the applicable interface to 1500.

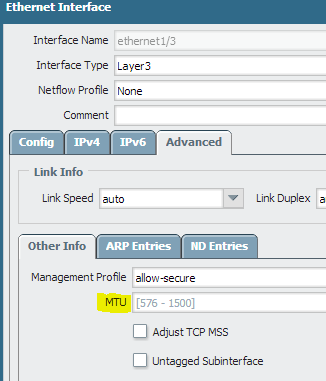

Go to Network > Interface > Ethernet1/3 > Advanced > MTU to configure the MTU value.

Also, via the CLI, you can check the MTU size with the following command:

> show interface ethernet1/3

--------------------------------------------------------------------------------

Name: ethernet1/3, ID: 18

Link status:

  Runtime link speed/duplex/state: 1000/full/up

  Configured link speed/duplex/state: auto/auto/auto

MAC address:

  Port MAC address 00:1b:17:a6:41:12

Operation mode: layer3

Untagged sub-interface support: no

--------------------------------------------------------------------------------

Name: ethernet1/3, ID: 18

Operation mode: layer3

Virtual router default

Interface MTU 1500

Interface IP address: 10.66.24.60/23

Interface management profile: ping-only

  ping: yes  telnet: no  ssh: no  http: no  https: no

  snmp: no  response-pages: no

Verify if the DF bit (Do not Fragment) is set to 1 in the packets received on the Palo Alto Networks firewall by looking at WireShark captures. Check for the MTU value of the packets received by the firewall and the MTU value of the interface. If the value on receiving packets exceed the value set on the interface, then the firewall would drop the packets giving the above counter values.

Note: When MTU size is exceeded, it may cause issues loading some websites.
