How to Configure LACP

How to Configure LACP

188701
Created On 09/25/18 17:30 PM - Last Modified 06/16/23 20:52 PM


Environment


  • Palo Alto Firewalls
  • PAN-OS 8.1 and above
  • LACP


Resolution


Overview



This document specify how to aggregate multiple interfaces on PA to acts a single logical interface.



Details



For PAN-OS versions 8.1.x & above, the following Palo Alto Networks firewalls support LACP: PA-400, PA-500, PA-800, PA-3000 Series, PA-3200 Series, PA-3400 Series, PA-4000 Series, PA-5000 Series, PA-5200 Series, PA-5400 Series and PA-7000 Series. The firewalls support LACP for HA3 (only on the PA-500, PA-3000 Series, PA-4000 Series, and PA-5000 Series), Layer 2, and Layer 3 interfaces.

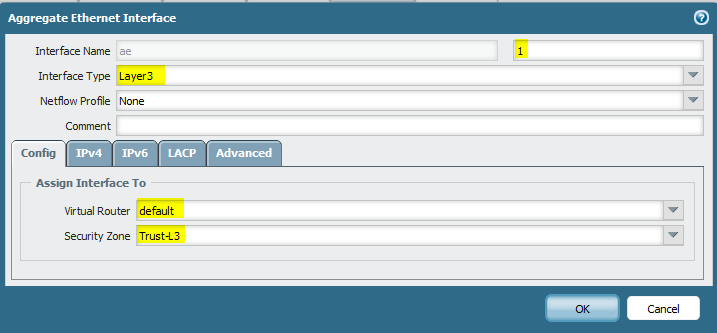

Step 1. Create an Aggregate Interface



Aggregate Interface.png

Step 2. Enable LACP. Make sure at least one side is in active mode.



Enable LACP.png



Step 3. Assign physical interface to Aggregate interface

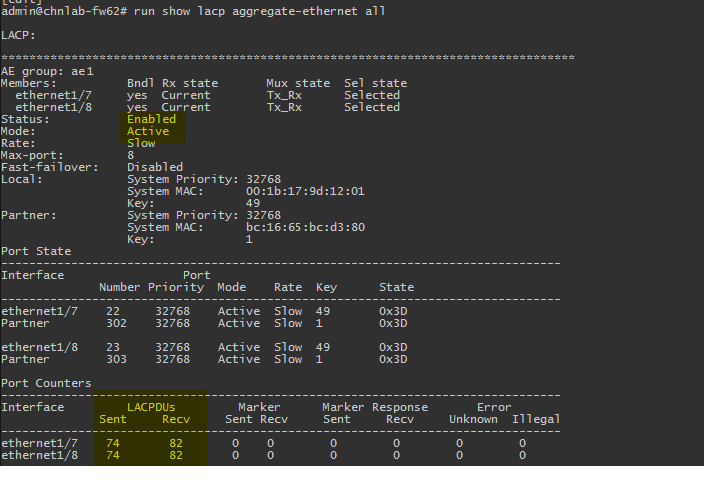

Verification command: PA> show lacp aggregate-ethernet all

Verification command.png
