Path Monitoring Never Recovers With Strict IP Address Check
16848
Created On 06/18/20 04:40 AM - Last Modified 09/15/20 03:08 AM
Symptom
- Firewall is dual homed to two ISPs with path monitoring over the primary link:

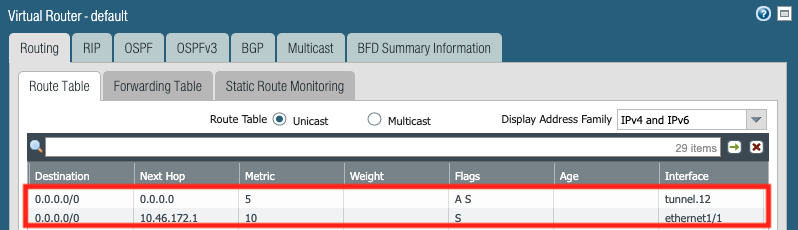

GUI: Network --> Virtual Routers --> More Runtime Stats:

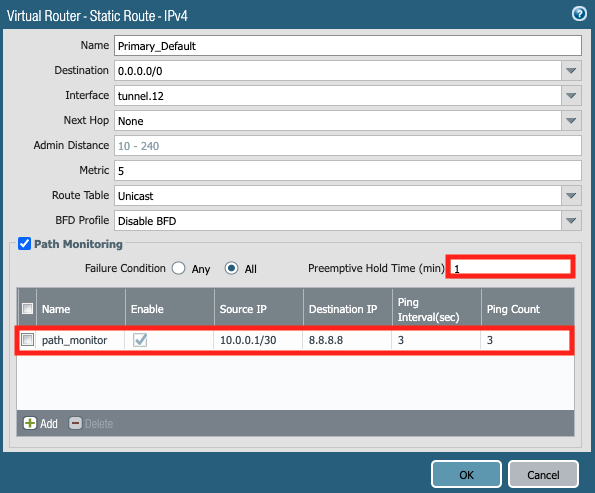

Network --> Virtual Router --> Static Routes:
- Each ISP interface has a Zone Protection profile with 'Strict IP Address Check'
Network --> Zones:
Network --> Zone Protection --> Packet Based Attack Protection:
- Primary path fails and is deleted/removed; while the secondary path is flagged as 'Active' and installed in the FIB:
Monitor --> System:
Network --> Virtual Router --> Static Routes:
- Service is restored on the primary link but the primary link never preempts or takes over after the 'Preemptive Hold Time' expires. The RIB does not even get updated and continues to use the secondary link for routing.
Environment
- Any PAN-OS
- Palo Alto Firewall.
- Path-monitoring is configured for redundancy/failure scenarios.
- Zone Protection is in use on both zones with Strict IP Address Check enabled
Cause
Global counter on the filter for the path-monitored source/destination IP indicates that the monitored traffic is being dropped with a reason: Packets dropped: Zone protection option 'strict-ip-check.'
admin@PA-VM> debug dataplane packet-diag show setting
--------------------------------------------------------------------------------
Packet diagnosis setting:
--------------------------------------------------------------------------------
Packet filter
Enabled: yes
Match pre-parsed packet: no
Index 1: 10.0.0.1/32[0]->8.8.8.8/32[0], proto 0
ingress-interface any, egress-interface any, exclude non-IP
Index 2: 8.8.8.8/32[0]->10.0.0.1/32[0], proto 0
ingress-interface any, egress-interface any, exclude non-IP
--------------------------------------------------------------------------------
admin@PA-VM> show counter global filter packet-filter yes delta yes
Global counters:
Elapsed time since last sampling: 231.955 seconds
name value rate severity category aspect description
--------------------------------------------------------------------------------
pkt_recv 3 0 info packet pktproc Packets received
flow_dos_pf_strictip 63 0 drop flow dos Packets dropped: Zone protection option 'strict-ip-check'
flow_tunnel_decap_err 63 0 drop flow tunnel Packet dropped: tunnel decapsulation error
flow_tunnel_ipsec_esp_encap 77 0 info flow tunnel Packet encapped: IPSec ESP
flow_tunnel_encap_resolve 77 0 info flow tunnel tunnel structure lookup resolve
--------------------------------------------------------------------------------
Total counters shown: 5
--------------------------------------------------------------------------------
Resolution
- Disable 'Strict IP Address Check' in the Zone Protection Profile; or
- Place the primary and secondary links in two separate virtual routers
Either of these solutions should result in path recovery with the primary path installed as 'Active' route:
Monitor --> System:

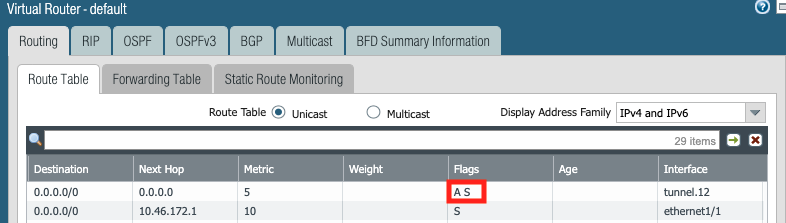

Network --> Virtual Router --> More Runtime Stats:
