Firewall breaks SCCM communication for agent push/download between client and server

42093

Created On 05/05/20 16:17 PM - Last Modified 07/08/20 02:02 AM

HTTP

Policy

8.1

9.0

PAN-OS

Symptom

The push of the agent between client and servers requires Microsoft BITS to download the required files from the HTTP(DP).
Firewall traffic log is not showing any deny/drop packets for the communication between source and destination IPs over tcp/80 and tcp/443.
Even after creating additional test security policies on the firewall not restricting any port and service but still having a security profile, the Microsoft upgrade is not completing properly across the FW.
Global counters are showing the following counter: ctd_http_range_response

Environment

Pan-OS 8.1.x,9.0.x

Cause

FW has the "Allow HTTP partial response" disabled

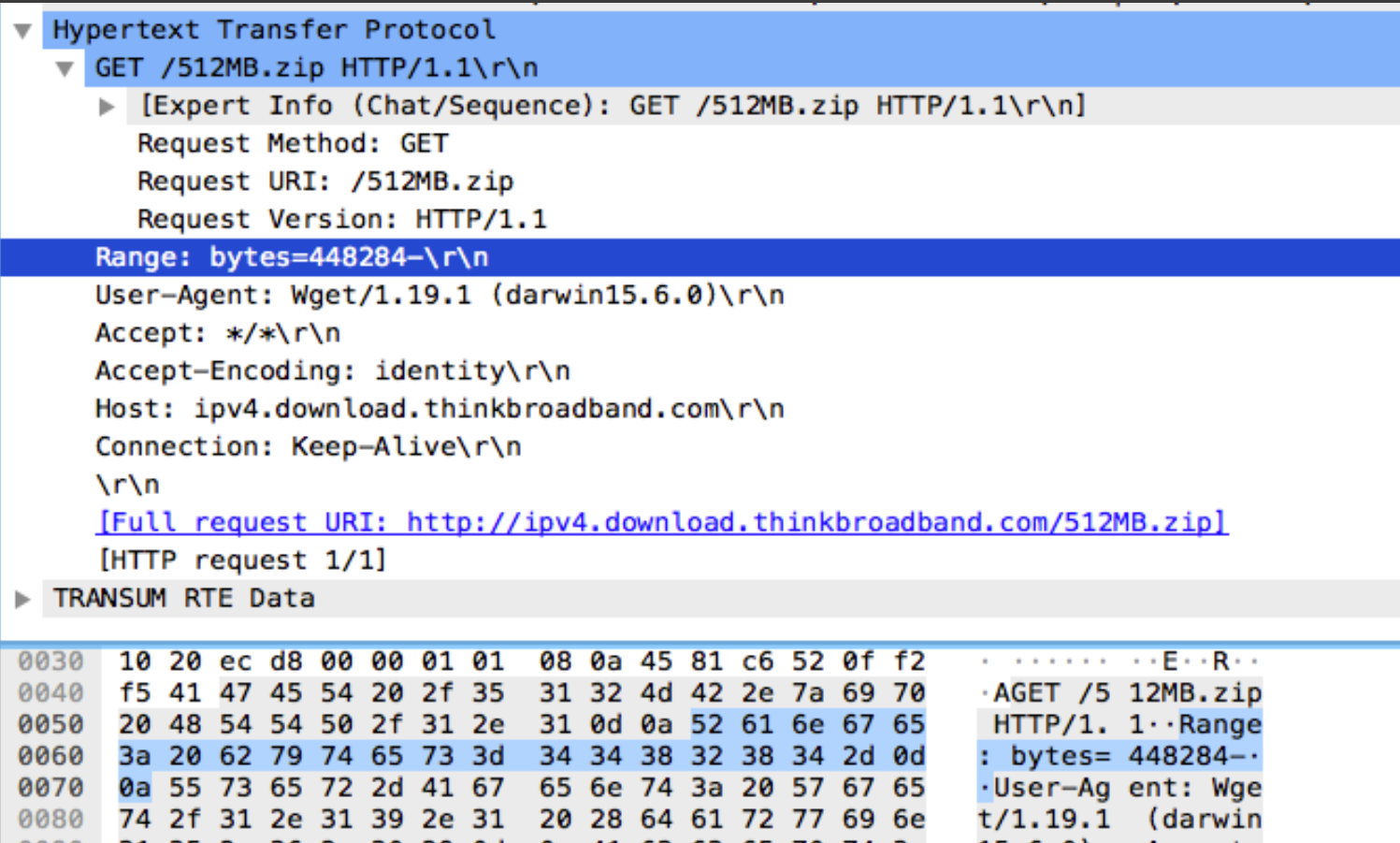

And the client HTTP get has the below HTTP range requesting a partial download/response form the server.
User-added image

When the option above is disabled the FW will send the HTTP get to the server followed by a TCP reset to break the connection.

Resolution

From the GUI:
Check the box for: Device >> Setup >> Content-ID >> Content -ID Settings >> Allow HTTP Partial response

Note:
By default, the Allow HTTP partial response is enabled. However, Palo Alto Networks recommends you disable this option for maximum security. Disabling this option should not impact device performance; however, HTTP file transfer interruption recovery may be impaired. In addition, disabling this option can also impact streaming media services, such as Netflix, Microsoft Updates, and Palo Alto Networks content updates.
