How to create GRE over IPSec using loopback interface

• Palo Alto Firewalls
• PAN-OS PANOS- 9.1, 10.1, 10.2, 11.0 and 11.1
• IPSec Tunnel
• GRE Tunnel

• IPSec Tunnel is configured between FW-1 and FW-2. The tunnel interface is tunnel.1
• GRE Tunnel is configured over the existing IPSEC tunnel. The tunnel interface is tunnel.2
• Firewall-1 192.168.1.1 <--------ipsec (tunnel.1)--------------> Firewall2 192.168.1.2
• loopback   10.20.20.1 <--------  GRE (tunnel.2) -------------> loopback 10.20.20.1

1. Configure IPSec between the two Firewalls using the external IP address. Refer to the knowledge article "How to configure IPSec tunnel "
2. In the advanced option ensure "Add GRE Encapsulation" is enabled. Here tunnel.1 interface is used for the IPsec tunnel, configure remote side with opposite IP address.

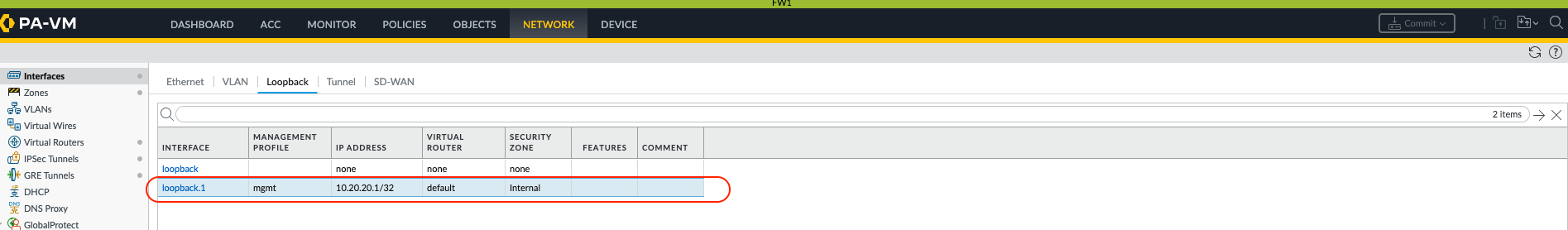

3. Configure loopback interface and create a static route in both sites to reach that loopback IP address via IPsec tunnel ( in this example its tunnel.1 interface). In this example loopback IP address is 10.20.20.1/32 and the remote loopback IP address is 10.30.30.1/32. Static route is created via a tunnel.1 (ipsec) to reach 10.30.30.1/32

GUI: Network > Virtual Routers > (name of VR)> Static Routes > Add

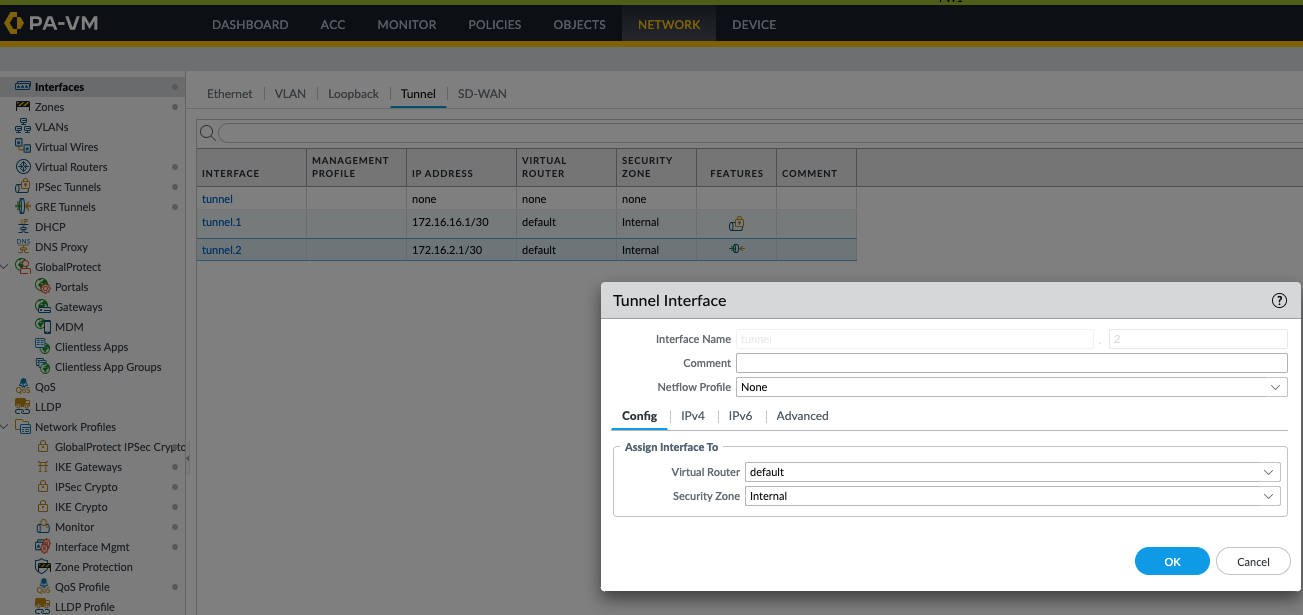

4. Create a tunnel interface for GRE and create GRE tunnel using loopback as local IP address and peer IP address and assign tunnel interface (in this example it's tunnel.2) on both sides, make sure to enable GRE keepalive which is being routed over IPsec tunnel.

GUI: Network > GRE Tunnels > Add

5. Confirm the GRE tunnel is up by running the command "show interface tunnel <no>"

adminn@PA-FW1> show interface tunnel.2
--------------------------------------------------------------------------------
Name: tunnel.2, ID: 258
Operation mode: layer3
Virtual router default
Interface MTU 1500
Interface IP address: 172.16.2.1/30
Interface management profile: N/A
Service configured:
Zone: Internal, virtual system: vsys1
Adjust TCP MSS: no
Ignore IPv4 DF: no
Policing: no
Proxy protocol: no
--------------------------------------------------------------------------------
GRE tunnel name:               GRE
tunnel interface state:        Up
disabled:                      False
erspan:                        False
copy-tos:                      False
keep alive enabled:            True
local-ip:                      10.20.20.1
peer-ip:                       10.30.30.1

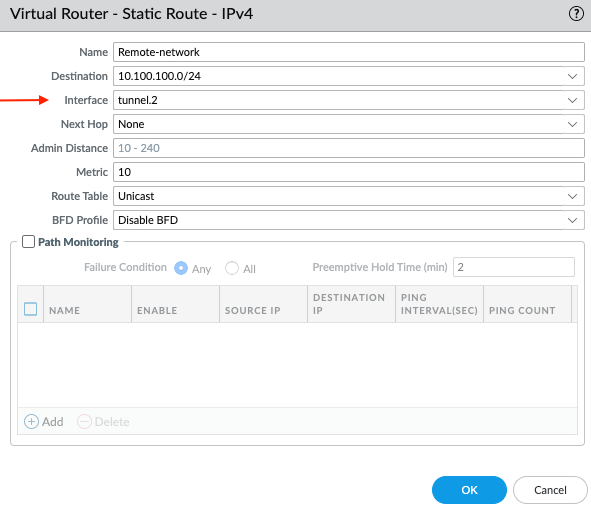

6. Add a route to reach remote networks over GRE tunnel

7.  Verify the connectivity by pinging the remote side. To confirm the session id can be checked ("show session all" and check one of the ping). This will show traffic is traversing over GRE tunnel over IPsec

adminn@PA-FW1> show session id 7632

Session            7632

        c2s flow:
                source:      10.10.10.1 [Internal]
                dst:         10.100.100.1
                proto:       1
                sport:       26067           dport:      1
                state:       INIT            type:       FLOW
                src user:    unknown
                dst user:    unknown

        s2c flow:
                source:      10.100.100.1 [Internal]
                dst:         10.10.10.1
                proto:       1
                sport:       1               dport:      26067
                state:       INIT            type:       FLOW
                src user:    unknown
                dst user:    unknown
         .. <Output Omitted> ...
        session traverses tunnel             : True
        session terminate tunnel             : False
        captive portal session               : False
        ingress interface                    : ethernet1/2
        egress interface                     : tunnel.2
        session QoS rule                     : N/A (class 4)
        end-reason                           : aged-out
