PA-7050 fan tray Fault LED turns red when no fan failure reported
3821
Created On 02/13/23 02:12 AM - Last Modified 08/22/24 03:08 AM
Symptom

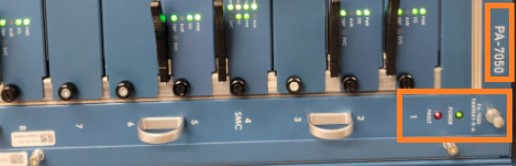

- PA-7050 fan tray Fault LED light turns red when no fan failure reported
- There is no Fan Alarm reported in "show system environmentals"
> show system environmentals
----Fan Tray----
Slot Description Alarm Inserted
S4 Fan Tray #1 (Left) False True
S4 Fan Tray #2 (Right) False True
----Fans----
Slot Description Alarm RPMs Min RPM
S4 Fan #1.1 RPM False 3668 1500
S4 Fan #1.2 RPM False 3647 1500
S4 Fan #1.3 RPM False 3640 1500
S4 Fan #1.4 RPM False 3673 1500
S4 Fan #1.5 RPM False 3682 1500
S4 Fan #1.6 RPM False 3648 1500
S4 Fan #1.7 RPM False 3661 1500
S4 Fan #1.8 RPM False 3636 1500
S4 Fan #2.1 RPM False 6372 2000
S4 Fan #2.2 RPM False 6237 2000
S4 Fan #2.3 RPM False 6413 2000
S4 Fan #2.4 RPM False 6182 2000
S4 Fan #2.5 RPM False 6420 2000
S4 Fan #2.6 RPM False 6235 2000
S4 Fan #2.7 RPM False 6425 2000
S4 Fan #2.8 RPM False 6199 2000
Environment
- PA-7050
- PAN-OS 10.1.6
- Fan Tray Fault LED
Cause
Fan tray LED intermittently reporting FAULT during bootup
Resolution
- The issue is resolved under PAN-205590 in PAN-OS 10.1.9, 10.2.4 and 11.0.1 versions.
- Upgrade of the above will resolve the issue.
- A a workaround remove then re-insert the affected fan tray, the FAULT LED will turn off showing correct status.
