How to use APP-ID with service on non-standard ports

How to use APP-ID with service on non-standard ports

11220
Created On 11/08/22 10:27 AM - Last Modified 11/10/23 03:55 AM


Objective


To Use APP-ID on a non-standard(custom) port.

Environment


  • Palo Alto Firewalls
  • PAN-OS 9.1 and above
  • APP-IDs

Procedure


  1. Identify what are the standard ports by searching the application on Applipedia
  2. Create a separate rule for each application that needs to run on a non-standard port
  3. Fill in the fields General, Source and Destination as per your needs
  4. In the 'Application' tab select the application you need
  5. In the 'Service' tab select/create the service needed
Example: In this scenario SSH is allowed on Port 222 instead of the standard port 22
  1. The following policy in place that should allow SSH traffic
  2. GUI: Policies > Security

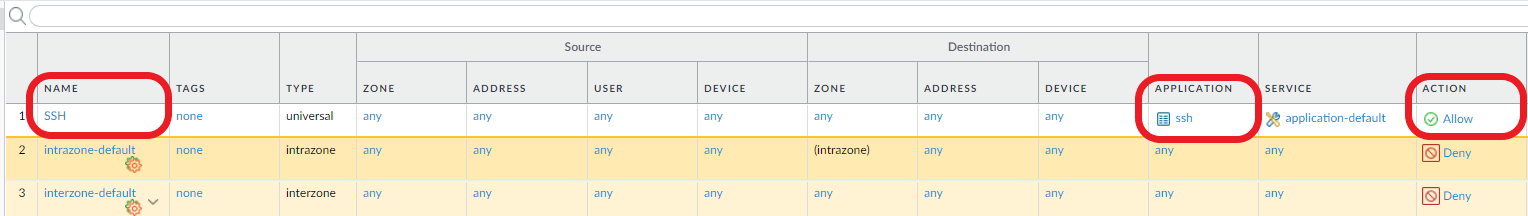

intrazone deny on 222 - policies.PNG
  1. This traffic is denied (GUI: Monitor > Logs > Traffic) as the SSH traffic is being received on Port 222 (non standard port)

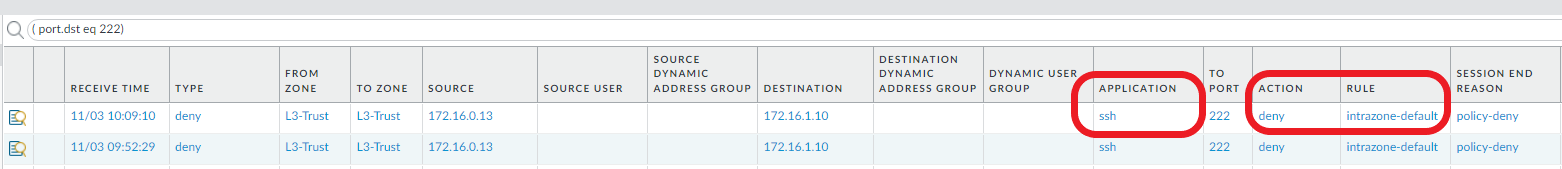

intrazone deny on 222.PNG
  1. Create a new service object with TCP port 222 (example TCP_222)
  2. Modify the Policy to add the new service  'TCP_222'

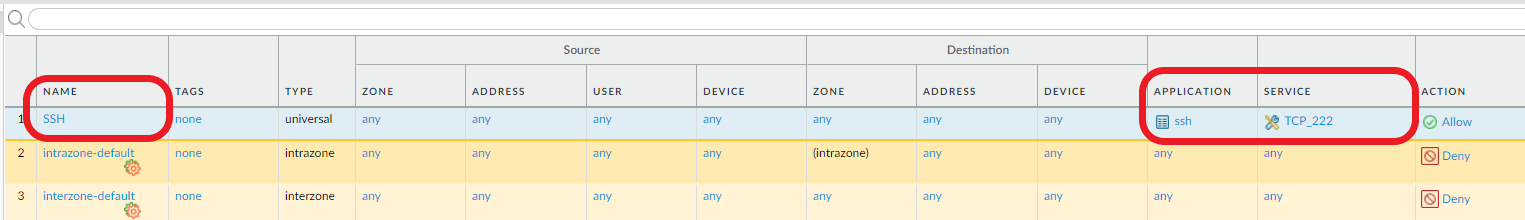

SSH 222 ALLOW - policies.PNG
  1. The SSH traffic using port 222 is now allowed (GUI: Monitor > Logs > Traffic)

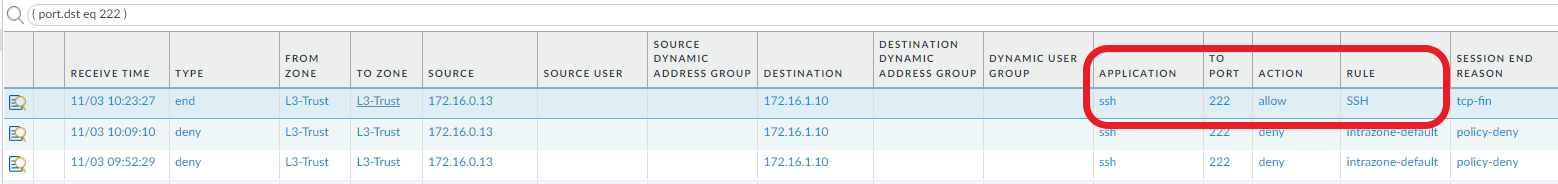

rule ALLOW on 222.PNG





Additional Information


Considerations:
  • Modifying the existing rule policy will only allow the traffic on the added port (In this example SSH is now blocked on port 22 and allowed only on 222).
  • To allow both standard and non standard ports, create new policies for allowing the apps on non-standard ports.
