TCP packets dropped by Firewall due to Invalid Timestamp option

• TCP SYN and TCP SYN/ACK packets are not dropped by the firewall and are forwarded as expected
• Firewall  randomly drops packets and global counter "tcp_invalid_ts_option" increments.

        > show counter global filter packet-filter yes delta yes

        Global counters:

        Elapsed time since last sampling: 3.298 seconds

        name value rate severity category aspect description

        --------------------------------------------------------------------------------

        tcp_drop_packet 1 0 warn tcp pktproc packets dropped because of failure in tcp reassembly

        tcp_invalid_ts_option 1 0 info tcp pktproc tcp packets with invalid timestamp option     >>>>>> Increment in Counter

• Please refer the below document which explains how to check the global counter for a specific traffic:

• TCP timestamp option is exchanged between the client and server
• “Check Timestamp option” is enabled on firewall

• Firewall will drops all packets, except syn and syn-ack TCP packets where the TSVal (Timestamp Value) is zero.

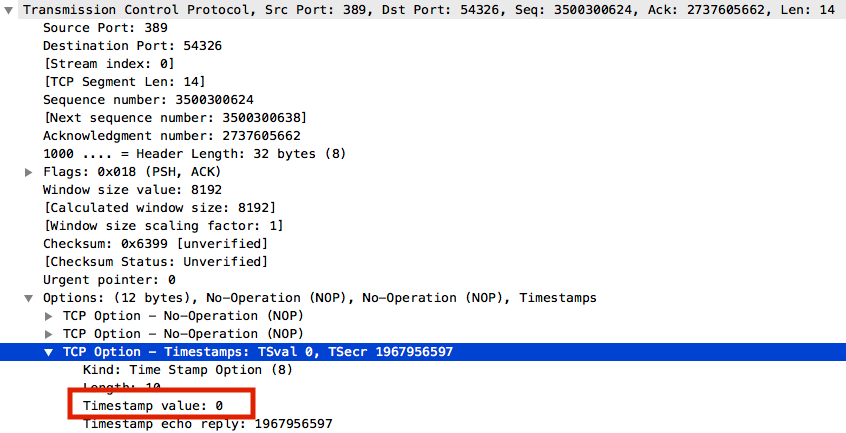

• To check the TSVal in a TCP packet, refer the screenshot below:

• By default “Check Timestamp option”  is enabled. Hence the firewall will drop this packet. We can check the setting by running the below command in CLI

       > show running tcp state

       session with asymmetric path : bypass inspection

       Bypass if OO queue limit is reached : no

       Favor new seg data : no

       Urgent data : clear

       Drop if zero after clear urgent flag : yes

       Check Timestamp option : yes -----> This option is set to Yes by default

       Allow Challenge Ack : yes

       Remove MPTCP option : yes

• As per current design, the firewall will drop the packets with TSVal set to 0.
• If this is legitimate traffic and you wish to allow, you can disable the "Timestamp Check".

• From CLI:

       > configure
       # set deviceconfig setting tcp check-timestamp-option no
       # commit

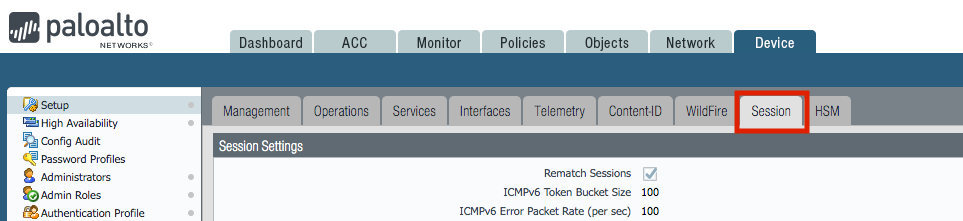

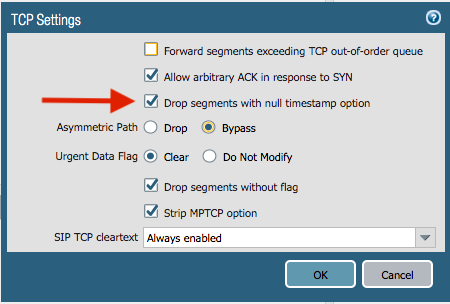

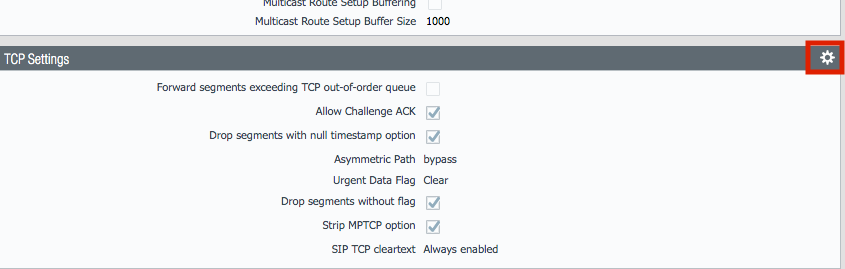

•  From GUI:
