Managed Firewall shows Disconnected on Panorama, after a route change on the default Gateway of Panorama
22376
Created On 03/27/19 03:16 AM - Last Modified 05/20/20 02:01 AM
Symptom
- Certain managed firewalls showing as disconnected on Panorama
- This happened after a destination route change to the firewall, on the default gateway of the panorama.
- The Default gateway has ICMP redirect enabled.
Environment
- Panorama
- All PAN-OS
- Route change on default Gateway
Cause

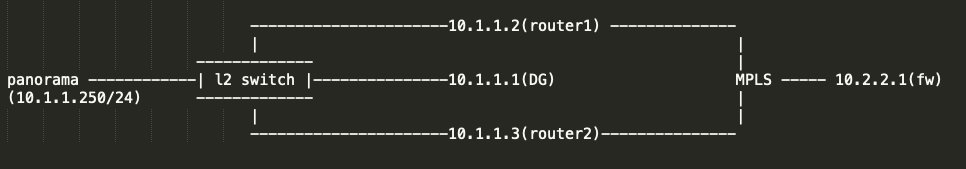

Consider the below scenario:
- Panorama is 10.1.1.250/24 and the default gateway(DG) is 10.1.1.1.
- DG has a route to the managed firewalls through MPLS from either 10.1.1.2 or 10.1.1.3.
- At a given point, let's say the preferred route is 10.1.1.2(router1), then the DG sends an ICMP redirect message to the panorama and is cached in the panorama.
- The issue starts when the path through router1 is broken for the destination in question.
- The panorama does not know about the route change and continues to send packets to router1, though the DG has a route change to 10.1.1.3(router2).
- This is because Panorama has the route to destination cached due to ICMP redirect message from DG.
- Panorama caches the icmp redirect message and does not clear it unless we restart the panorama.
Resolution
Clear the cached route entry using one of the following methods :
- Restart the panorama.
- Clear the ICMP route cache from root (Reach out to Support to perform this operation).
