How To Be Alerted for Version Mismatches Between HA Peers

How To Be Alerted for Version Mismatches Between HA Peers

13970
Created On 04/12/19 00:55 AM - Last Modified 06/19/24 04:19 AM


Objective


How to be alerted when there is a version mismatch between HA peers using the PAN-OS Log Forwarding feature.

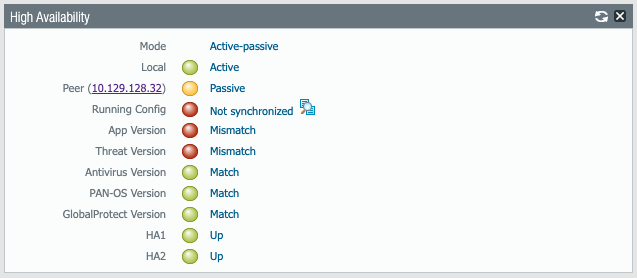

View of the HA status from the WebUI dashboard


Environment


PANOS 8.0 or higher

Procedure


  • Go to Device > Log Settings
  • In System, click the Add button
  • Give a name and description to the System Log Forwarding rule.
  • In the Filter section, click Filter Builder.
  • In the text box, type:
    (eventid eq peer-version-match) AND (severity geq medium)
  • Click the tab View Filtered Logs to check the filter rule is working.

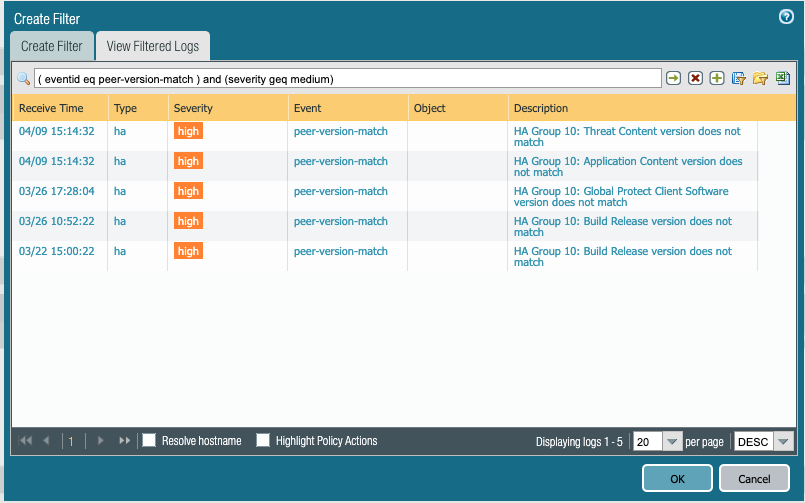

The filter is working
  • Click OK to validate.
  • Then in the Forward Method, add the destination of the log.
  • Click OK to validate.
  • Commit your changes to save.



Additional Information


For additional information, please review the following article:
PAN-OS Documentation: Configure Log Forwarding
