How to Configure LACP

How to Configure LACP

234300
Created On 09/25/18 17:30 PM - Last Modified 01/04/24 02:21 AM


Objective


This document specify how to aggregate multiple interfaces on PA to acts a single logical interface.

Environment


  • Palo Alto Firewalls
  • PAN-OS 8.1 and above
  • LACP


Procedure


1. Create an Aggregate Interface

Aggregate Interface.png

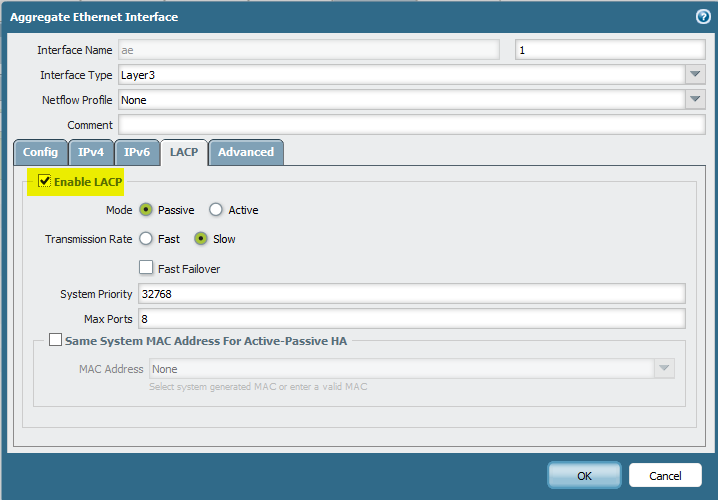

2. Enable LACP. Make sure at least one side is in active mode.

Enable LACP.png

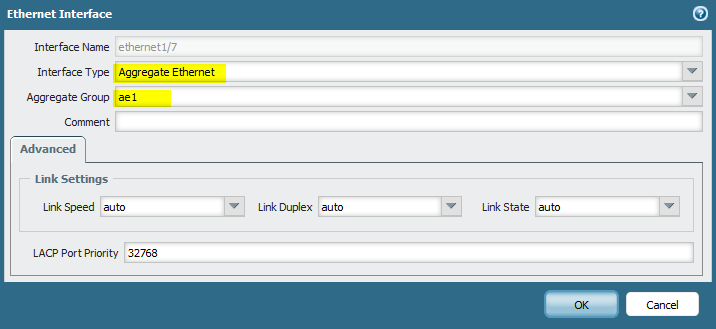

Step 3. Assign physical interface to Aggregate interface


4. Verification command: > show lacp aggregate-ethernet all
Verify LACP with show lace aggregate-ethernet command



Additional Information


Configure an Aggregate Interface Group
