Question
What is the maximum number of IP Pools configurable for GlobalProtect Gateway endpoints?

Environment
  • PAN-OS 9.0 and above.
  • Palo Alto Firewall.
  • GlobalProtect Agent 5.1.1


Answer
The maximum number of client IP pools configurable within GlobalProtect is 64. After this, the Add button will become grayed out and unusable.

Note: This is the IP pool configuration on the client level under Network > GlobalProtect > Gateways > "Selected Gateway" > Agent > Client Settings.

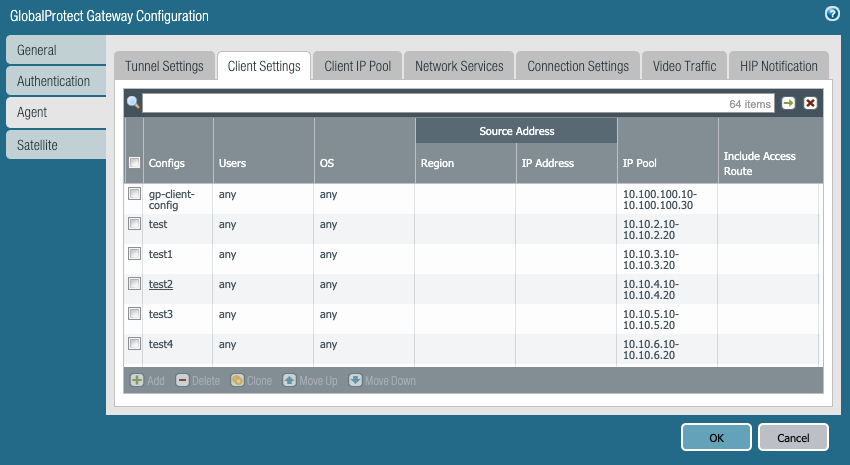

Screenshot displaying the maximum 64 client IP pools configured in GlobalProtect.


Additional Information
For additional information regarding the configuration of the GlobalProtect Gateway and other features, please refer to the following documentation:

https://docs.paloaltonetworks.com/globalprotect/9-1/globalprotect-admin/globalprotect-gateways/configure-a-globalprotect-gateway.html
https://docs.paloaltonetworks.com/globalprotect/9-1/globalprotect-admin.html
