Selected used policy rules when marking 'Highlight unused rules' checkbox

• When Read-only accounts click checkbox option "Highlight unused rules" over Policies> Security/NAT unused and used rules get wrongly selected

Affected Behavior

• GUI: Device > Administrator > $name > Administrator type Dynamic - Superuser(read-only) || Device Administrator (read-only)

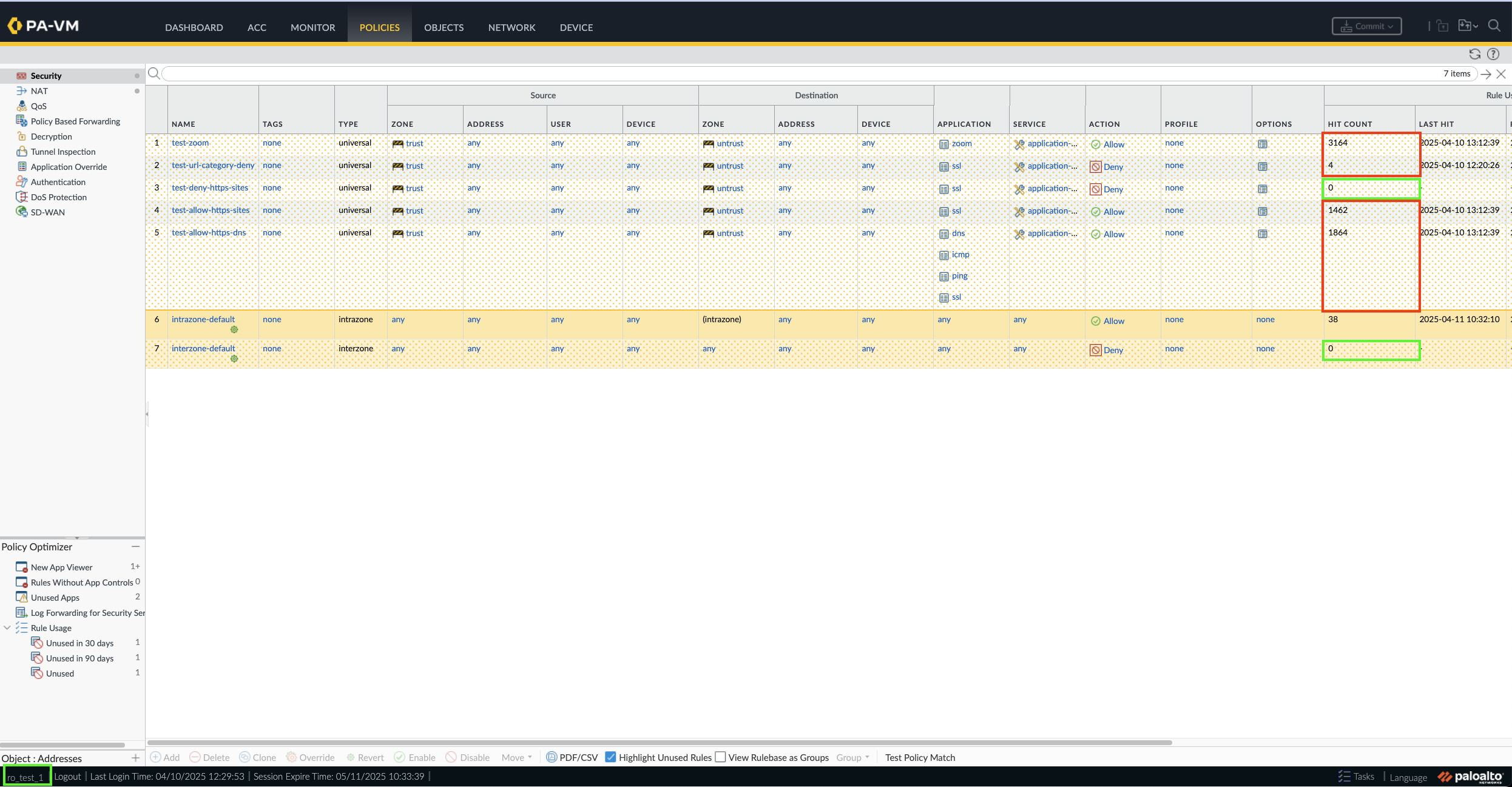

• The highlighted rules are a total of 5

Correct Behavior:

• GUI: Device > Administrator > $name > Administrator type Dynamic - Superuser(read-only) || Device Administrator

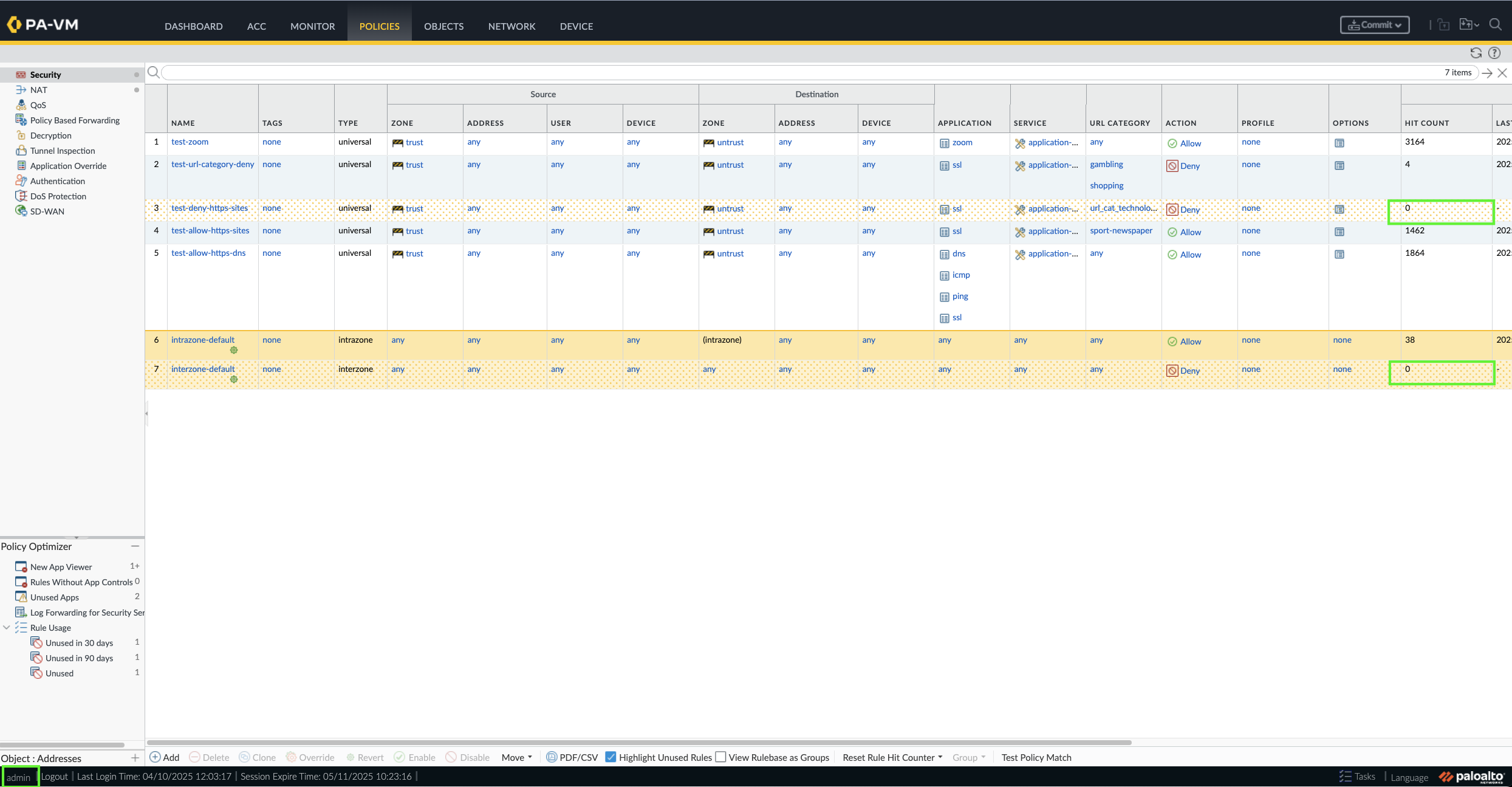

• Only 1 rule is highlighted.

• Any Panorama
• Any Palo Alto Firewalls
• PANOS 10.2.x, 11.1.x, 11.2.x and 12.1.x

• Software Issue

1. The issue is fixed under PAN-268614.
2. The following versions has the fix for the issue.
   • 11.2.7, 11.2.8, 12.1.2, 12.2.0, 11.1.11, 10.2.16, 10.2.17, 11.1.9, 11.1.7-h2, 11.1.6-h7, 11.1.4-h18, 10.2.13-h8, 10.2.7-h29, 10.2.10-h19
3. Upgrading to the fixed versions or later will resolve the issue (some of the above versions are still unreleased).
4. As a workaround, using the following CLI command with match "0" to to highlight the correct unused rules.

   Firewall> show rule-hit-count vsys vsys-name vsys1 rule-base security rules all | match ' 0 '



11.1.9- release notes
