GlobalProtect App fails to connect to the GlobalProtect Portal when using Windows 365 and SAML authentication via the embedded browser

GlobalProtect App fails to connect to the GlobalProtect Portal when using Windows 365 and SAML authentication via the embedded browser

2072
Created On 07/30/25 07:34 AM - Last Modified 09/29/25 23:23 PM


Symptom


  • The GlobalProtect App fails to connect to the GlobalProtect Portal when using Windows 365 and SAML authentication via the embedded browser

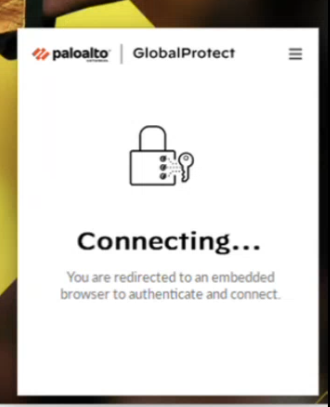

  • GP App displays "Connecting... You are redirected to an embedded browser to authenticate and connect"
  • Thereafter no message appears and displays "Not Connected"
  • the GP client just shows,  but nothing actually happens and then it shows "Not Connected".



Then -



Environment


  • SAML authentication
  • Embedded browser
  • GlobalProtect App 6.2.8
  • Windows 365


Cause


  • The embedded browser did not receive the response from IDP within 30 sec of timeout.
  • This is displayed in the PanGPA.log by the log message "webview2 callback timeout".
11:31:11:479 CPanSAMLView: clear autofill
11:31:11:479 CPanSAMLView: clear server certificateerroractions
11:31:11:527 ClearServerCertificateErrorActions Error 0
11:31:11:529 NavigationStarting URL https://login.microsoftonline.com/9f8ff257-76bc-46c6-8b06-18664d42a197/saml2?SAMLRequest=xxxxxx
11:31:12:426 CPanSAMLView: Browser Process Exited
11:31:33:003 Display the main panel when user click the tray icon.
11:31:33:010 Show the main panel.
11:31:41:482 CPanSAMLView::OnTimer webview2 callback timeout.


Resolution


  1. Update the webview2 call back timeout registry to a value larger than 30s.
  2. This is done by adding a new key in the registry of Windows.
  3. Once the registry key is added, Restart the PanGPS service
  4. The key is added under:
HKEY_LOCAL_MACHINE\SOFTWARE\Palo Alto Networks\GlobalProtect\Settings
    • keyname : webview2-timeout
    • type: string
    • Value: 60 (meaning 1 minute, can be longer)
