Enabling the explicit proxy on the Palo Alto firewall causes some sessions to be reset, leading to inconsistent traffic drops.

• Explicit Proxy enabled on the Firewall
• Inconsistent traffic drops affecting specific TCP streams
• Traffic flows are visible in packet capture but not in firewall logs
• Same source/destination traffic is allowed in some sessions and dropped in others

LOG_SIGNATURES

• TCP reset (RST) from the proxy server after approximately 15 seconds without upstream interface initiation
• Missing entries for dropped sessions in firewall traffic logs

tcp.port == 59180 ( Not working ), we se
[21871][debug][filter] [source/extensions/filters/listener/original_src/original_src.cc:21] Got a new connection in the original_src filter for address &client-IP:59180. Marking with 123, 16 << client IP and Src.port.
[21871][trace][filter] [source/extensions/filters/listener/http_inspector/http_inspector.cc:182] Mark parse status as true final_seg false << false for final segment, where it should be true since there are no more chunks coming.

PACKET_CAPTURES

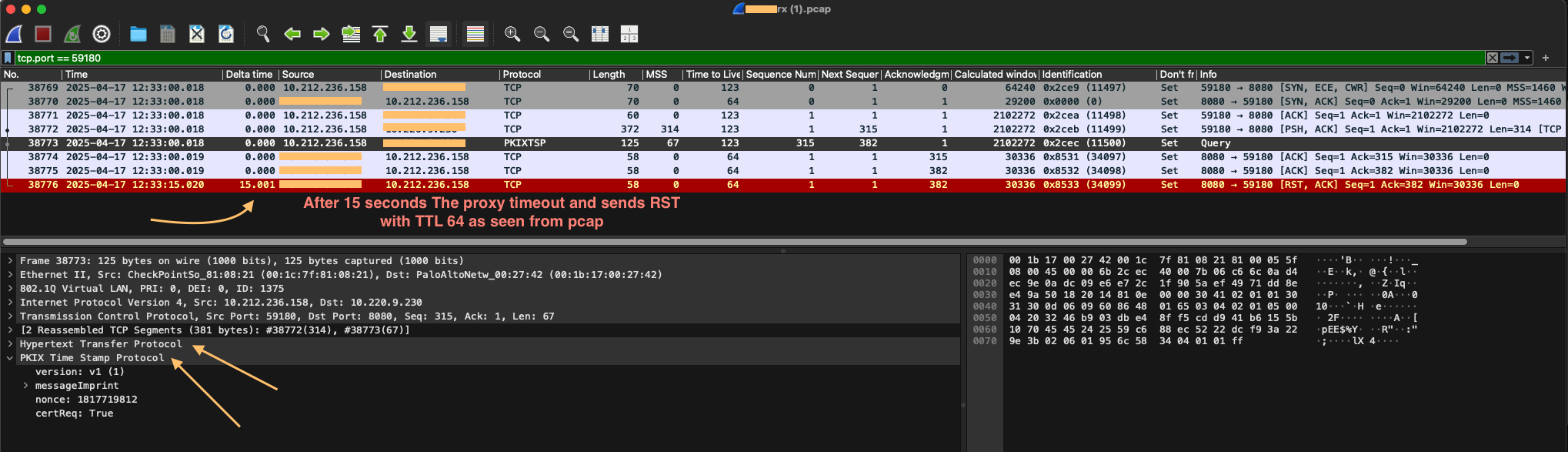

Captures on the listening interface showing the below: ( the protocol might differ, in this example it's PKIX Time stamp protocol )

• Palo Alto VM based Firewalls
• Palo Alto HW based Firewalls
• PAN-OS 11.1.x
• Explicit Proxy



• The HTTP inspector in the Palo Alto Networks firewall fails to identify the standard "\r\n\r\n" sequence in HTTP requests when data arrives in a single packet or combined chunks.
• Some protocols, like OCSP and the PKIX timestamp protocol, do not inherently include this marker, causing the proxy to incorrectly terminate sessions with a TCP reset.
• The issue is recognized as a software issue, and the fix is in the following releases and above:
  11.2.7, 11.2.8, 12.1.2, 11.1.11, 11.1.10-h1, 11.1.6-h13, 11.2.4-h10, 11.1.4-h21

1. The issue is fixed under PAN-275047.
2. Upgrading the PanOS version to 11.1.11 or 11.2.7 (or higher) will fix the issue.
3. The workaround is to bypass the proxy until the upgrade for the problematic traffic.
