Advanced Routing Engine - BGP: How to configure route redistribution

Using the Topology below:

• Advertise the static Routes into BGP
• Advertise the connected Routes into BGP

• Advanced Routing Engine
• Logical Router
• BGP
• Route Redistribution
• PAN-OS version

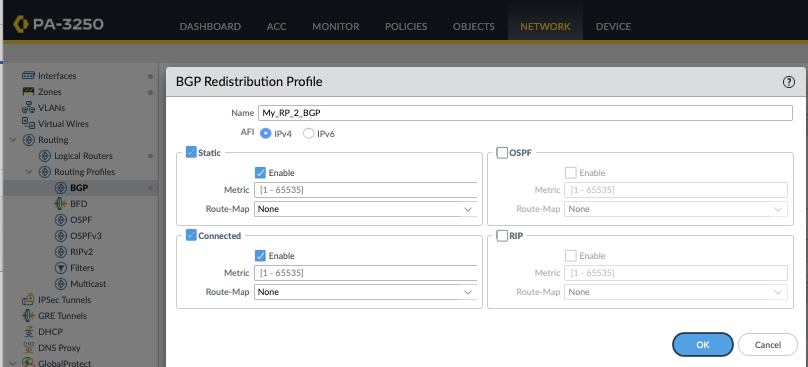

1. Configure the BGP Redistribution Profile by going to Network > Routing > Routing Profiles > BGP > BGP Redistribution Profile > Add. The following parameters are using in this example:
   1. Name: My_RP_2_BGP
   2. Static: checked
   3. Connected: checked

2. Click OK to save
3. Apply the above BGP Redistribution Profile to the Logical Router by going to Network > Routing > Logical Router > [Logical_Router_Name] > BGP > Redistribution > IPv4 Redistribution Profile, and use the profile created above.

4. Click OK then Commit to save
5. To verify, Use the following CLI command:

admin@PA-3250-ENT> show advanced-routing bgp peer advertised-routes peer-name ISP1

Status codes:  R removed, d damped, * valid, r ribFailure, S stale, = multipath,
               s suppressed, i internal, > best, h history
Nexthop codes: @NNN nexthop's vrf id, < announce-nh-self
Origin codes:  e egp, i igp, ? incomplete

Peer: ISP1                                                    Logical router: ENT
----------------------------------------------------------------------------------
   Network              Next Hop             Metric LocPrf Weight Path
*> 172.16.0.0/24        172.16.1.254             10    100  32768  ?
*> 172.16.1.0/24        0.0.0.0                   0    100  32768  ?
*> 172.16.2.0/24        0.0.0.0                   0    100  32768  ?
*> 172.16.3.0/24        172.16.1.254             10    100  32768  ?
*> 172.16.4.0/24        172.16.1.254             10    100  32768  ?

-----Snipped for brevity-----------

*> 172.16.30.0/24       172.16.1.254             10    100  32768  ?
*> 172.16.31.0/24       172.16.1.254             10    100  32768  ?
*> 192.168.1.0/24       172.16.1.254             10    100  32768  ?
*> 192.168.2.0/24       172.16.1.254             10    100  32768  ?
*> 192.168.3.0/24       172.16.1.254             10    100  32768  ?

-----Snipped for brevity-----------

*> 192.168.254.0/24     172.16.1.254             10    100  32768  ?
*> 192.168.255.0/24     172.16.1.254             10    100  32768  ?
----------------------------------------------------------------------------------
Total number of prefixes 286

admin@PA-3250-ENT>
