Configure HA Active-Passive in OCI in two separate regions
3219
Created On 07/04/24 00:04 AM - Last Modified 07/09/24 20:38 PM
Question
We have two firewalls in two different regions (Madrid - Marsella), we want to deploy an Active/Passive configuration on these firewalls, but we don't know if it's possible.
Environment
VM firewalls in OCI HA (A/P) pair
Answer
Currently, HA (Active - Passive ) configuration is supported in same region. One can have the Active/Passive pair in separate Availability Domains but not in separate regions.

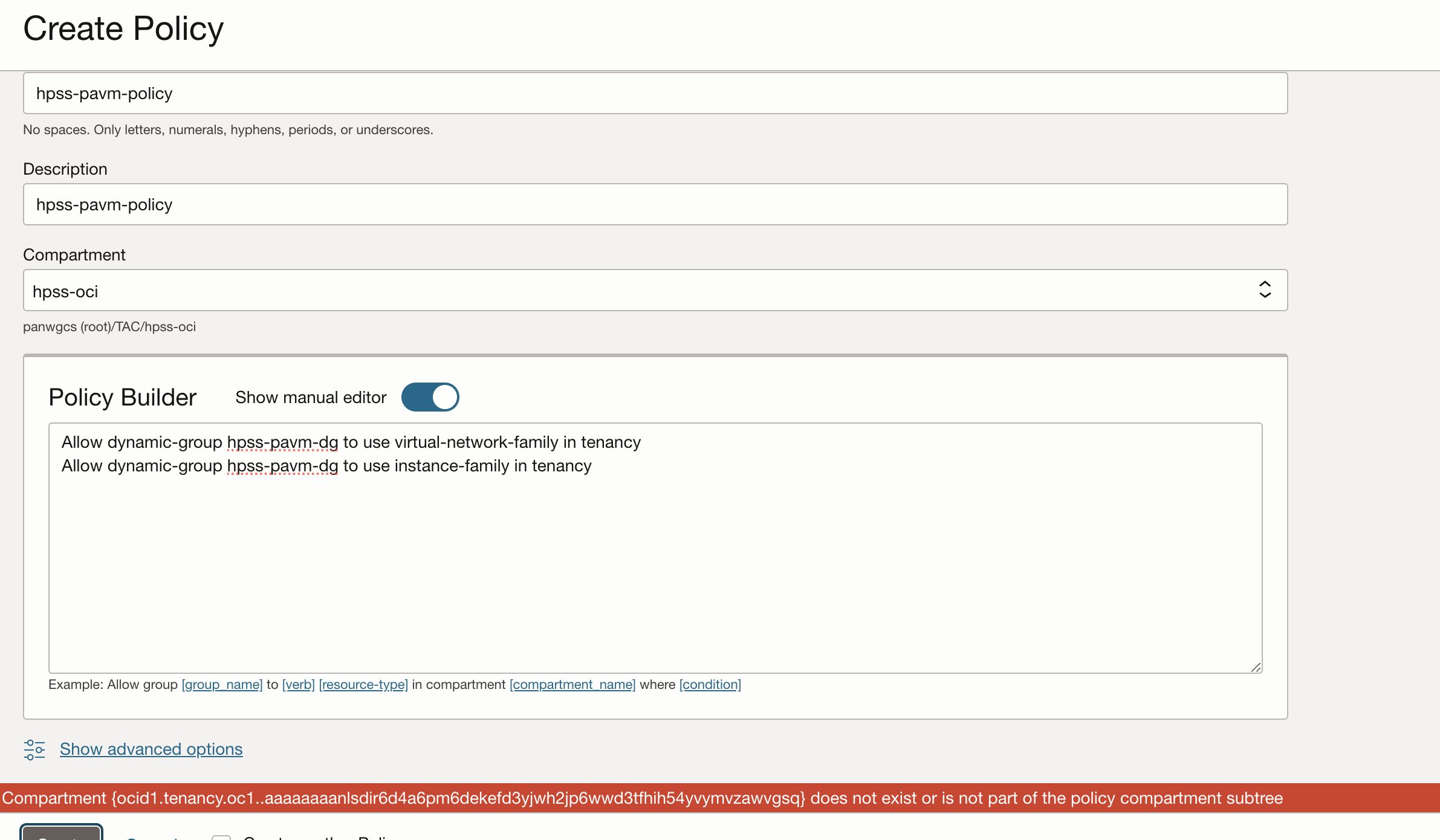

This is because while setting up HA setting up policy under Identity and security in OCI an error comes up for the compartment not being present. The primary firewall will not be able to send API call to the other firewall present in different regions due to which HA failover will be unsuccessful.
Additional Information
https://docs.paloaltonetworks.com/vm-series/11-0/vm-series-deployment/set-up-the-vm-series-firewall-on-oracle-cloud-infrastructure/configure-activepassive-ha-on-oci
