使用 WinRM 配置服务器监控HTTP使用 Kerberos 显示未连接
40923
Created On 10/05/22 08:39 AM - Last Modified 01/07/25 05:12 AM
Symptom
- 配置 WinRM 结束HTTP使用 Kerberos 显示未连接。
- 系统日志状态“连接失败，Kerberos 错误”。
- 端口 5985 已打开 firewall
- Ping 到 Kerberos 服务器成功。

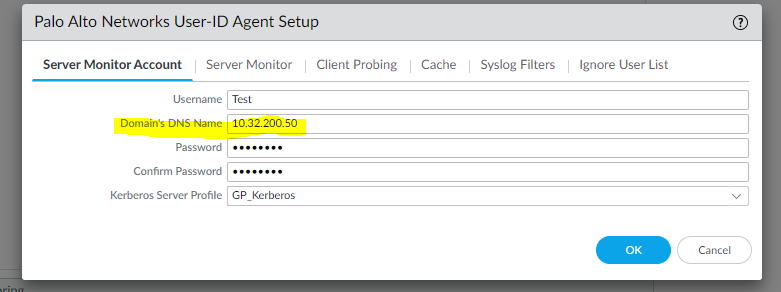

- 导航设备>用户识别>帕洛阿尔托网络用户-ID代理设置>服务器监控帐户.
- 配置IP地址在域的DNS名称.
- 显示系统日志：
high userid connect 0 Server monitor MHG1DC01V(vsys1): connection failed, Kerberos error high userid connect 0 Server monitor MHG2DC01V(vsys1): connection failed, Kerberos error high userid connect 0 Server monitor MHG1DC01V(vsys1): connection failed, Kerberos error high userid connect 0 Server monitor MHG2DC01V(vsys1): connection failed, Kerberos error
- 查看 userid.logs
+1000 Error: pan_user_id_krb5_init_ticket(pan_user_id_win.c:2063): failed to get krb5 tgt ticket with error -1765328316. +1000 Error: pan_user_id_krb5_init_ticket(pan_user_id_win.c:2068): krb5: accout=svcMHG2FW01Vuid, domain=TEST.PALOALTONETWORKS.COM.AU,principal=svcMHG2FW01Vuid@TEST.PALOALTONETWORKS.COM.AU,cached file=/opt/pancfg/.userid/krb5_cache_1_MHG1DC01V_1662698913. +1000 Error: pan_user_id_krb5_init_ticket(pan_user_id_win.c:2094): krb5 error -1765328316: Realm not local to KDC. +1000 Warning: pan_user_id_krb5_set(pan_user_id_win.c:2182): failed to acquire krb5 tgt ticket on vsys 1 for server MHG1DC01V. +1000 Error: pan_user_id_winrm_query(pan_user_id_win.c:2725): failed to prepare winrm connection in vsys 1, server=MHG1DC01V. +1000 connecting to ldap://[10.31.200.50]:389 ... +1000 Error: pan_ldap_bind_simple(pan_ldap.c:396): ldap_sasl_bind result return(49) : Invalid credentials +1000 Error: pan_ldap_ctrl_connect(pan_ldap_ctrl.c:1086): pan_ldap_bind() failed
Environment
- PAN-OS
- USER-ID
- 使用 WinRM 进行监控 HTTP
Cause
- 错误的DNS IP地址用于“域的DNS名称”字段下设备>用户识别>帕洛阿尔托网络用户-ID代理设置>服务器监控帐户
Resolution
- 输入DNS受监控服务器的名称。
- 如果使用 Kerberos 配置对受监控服务器的访问以进行服务器身份验证，请输入 Kerberos 领域域
