Configured server monitoring using WinRM over HTTP with Kerberos shows not connected
40910
Created On 10/05/22 08:39 AM - Last Modified 01/07/25 05:12 AM
Symptom
- Configuring WinRM over HTTP with Kerberos shows not connected.
- System logs state " connection failed, Kerberos error ".
- Port 5985 is open on the firewall
- Ping to the Kerberos server is successful.

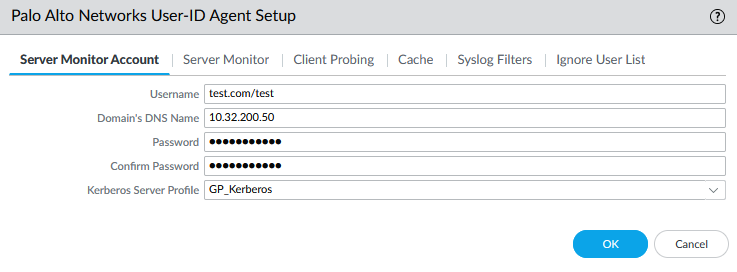

- Navigate to Device > User identification > Palo Alto Networks User-ID Agent Setup > Server Monitor Account.
- Configuring IP address in Domain's DNS Name.
- show system logs:
high userid connect 0 Server monitor MHG1DC01V(vsys1): connection failed, Kerberos error high userid connect 0 Server monitor MHG2DC01V(vsys1): connection failed, Kerberos error high userid connect 0 Server monitor MHG1DC01V(vsys1): connection failed, Kerberos error high userid connect 0 Server monitor MHG2DC01V(vsys1): connection failed, Kerberos error
- Looking at userid.logs
+1000 Error: pan_user_id_krb5_init_ticket(pan_user_id_win.c:2063): failed to get krb5 tgt ticket with error -1765328316. +1000 Error: pan_user_id_krb5_init_ticket(pan_user_id_win.c:2068): krb5: accout=svcMHG2FW01Vuid, domain=TEST.PALOALTONETWORKS.COM.AU,principal=svcMHG2FW01Vuid@TEST.PALOALTONETWORKS.COM.AU,cached file=/opt/pancfg/.userid/krb5_cache_1_MHG1DC01V_1662698913. +1000 Error: pan_user_id_krb5_init_ticket(pan_user_id_win.c:2094): krb5 error -1765328316: Realm not local to KDC. +1000 Warning: pan_user_id_krb5_set(pan_user_id_win.c:2182): failed to acquire krb5 tgt ticket on vsys 1 for server MHG1DC01V. +1000 Error: pan_user_id_winrm_query(pan_user_id_win.c:2725): failed to prepare winrm connection in vsys 1, server=MHG1DC01V. +1000 connecting to ldap://[10.31.200.50]:389 ... +1000 Error: pan_ldap_bind_simple(pan_ldap.c:396): ldap_sasl_bind result return(49) : Invalid credentials +1000 Error: pan_ldap_ctrl_connect(pan_ldap_ctrl.c:1086): pan_ldap_bind() failed
Environment
- PAN-OS
- USER-ID
- Monitoring using WinRM over HTTP
Cause
- Wrong DNS IP address is used in the "Domain's DNS Name" field under Device > User identification > Palo Alto Networks User-ID Agent Setup > Server Monitor Account
Resolution
- Enter the DNS name of the monitored server.
- If you Configure Access to Monitored Servers using Kerberos for server authentication, enter the Kerberos Realm domain

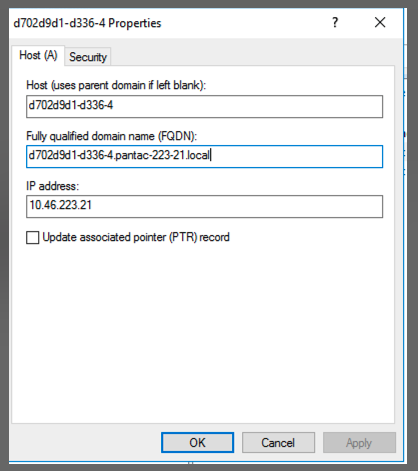

On Windows server, FQDN of Kerberos server can be found under Server Manager->Tools->DNS Manager-><name-of-server>->Forward Lookup Zones-><domain-name>
