IPSec Phase 1 negotiation fails with "NO_PROPOSAL_CHOSEN" seen in System Logs - DH Group mismatch in Phase 1
17174
Created On 08/02/22 18:18 PM - Last Modified 08/05/22 18:24 PM
Symptom
- VPN Tunnel not coming up or went down
- System Logs showing "no proposal chosen."
- System Logs showing "<IKEGateway> unauthenticated NO_PROPOSAL_CHOSEN received, you may need to check IKE settings"
- CLI show command outputs on the two peer firewalls showing different DH Groups (Example: DH Group 20 vs DH Group 14)
- Packet Capture showing "NO_PROPOSAL_CHOSEN" in the IKE packets (UDP port 500)

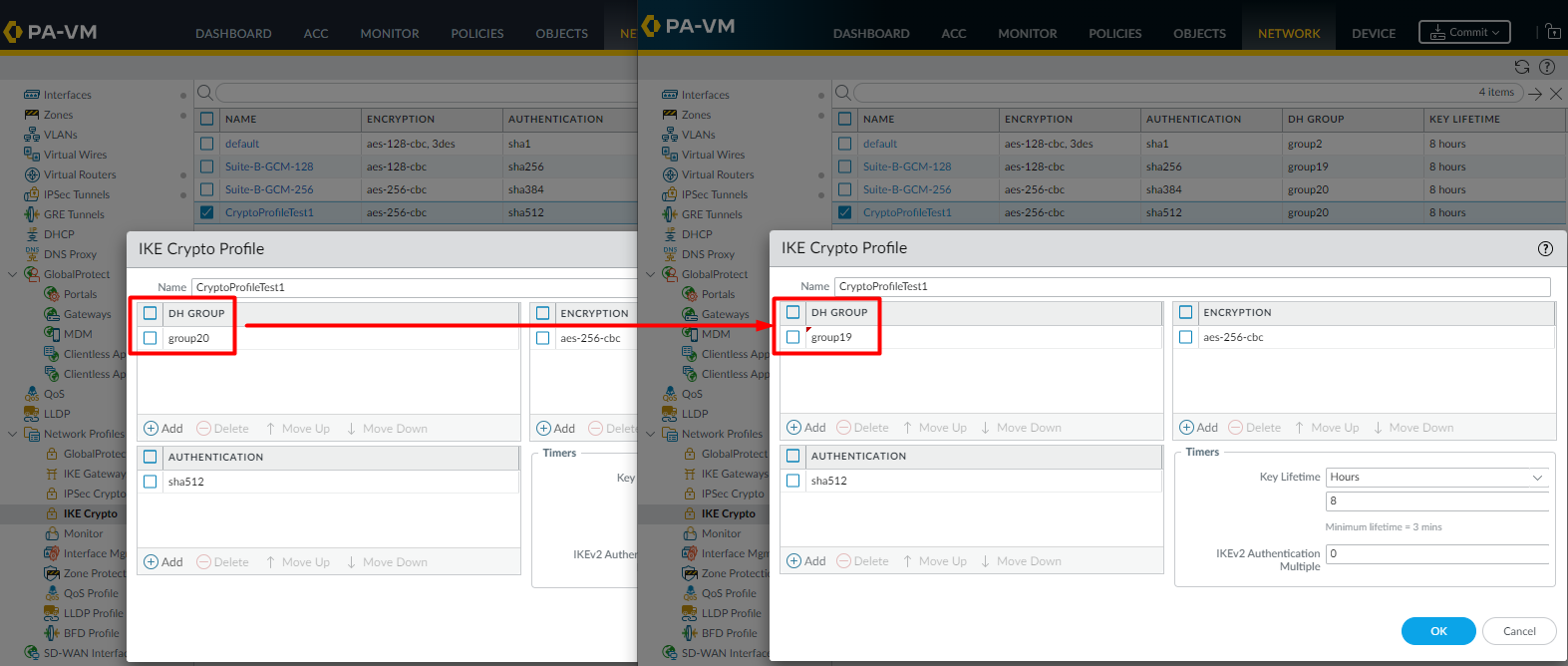

Web UI
Navigate to Network > IKE Crypto Profile > edit IKE Crypto Profile > edit DH Group
CLI
On both VPN peers, run the below command(s) via CLI
>show vpn gateway name <name>
FW1> show vpn gateway name IKEGatewayTest1
GwID Name Peer-Address/ID Local Address/ID Proposals
1 IKEGatewayTest1 203.0.113.200 203.0.113.100 [PSK][DH20][AES256][SHA512]
FW2> show vpn gateway name IKEGatewayTest1
GwID Name Peer-Address/ID Local Address/ID Proposals
1 IKEGatewayTest1 203.0.113.100 203.0.113.200 [PSK][DH19][AES256][SHA512]

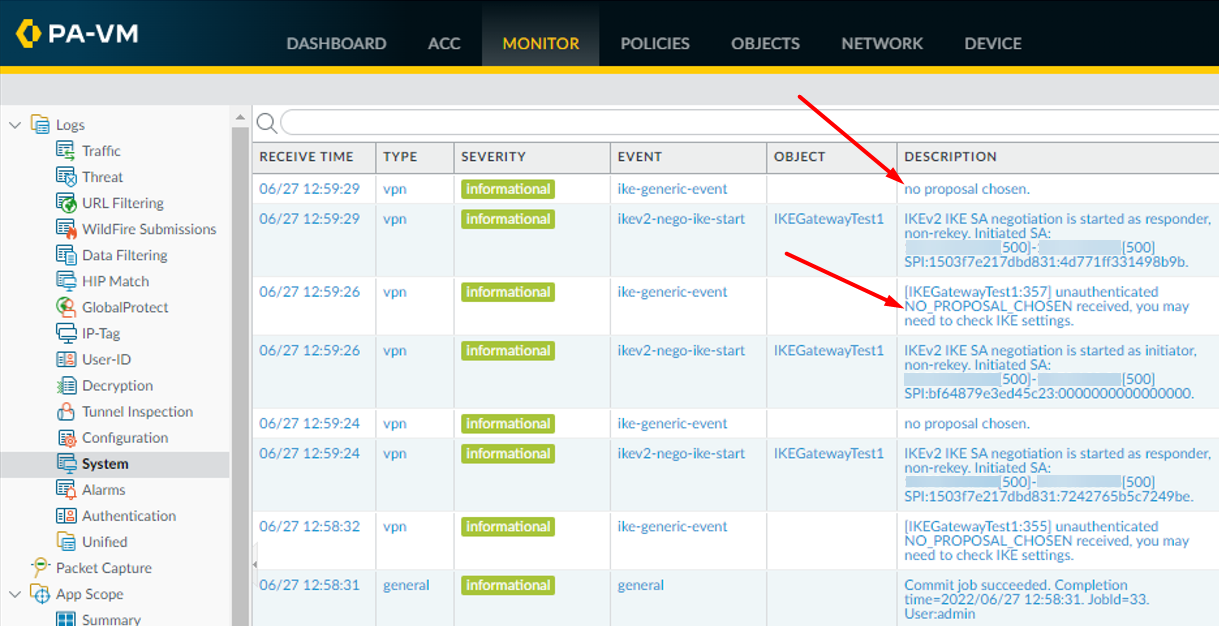

System Logs
Navigate to Monitor > System Logs

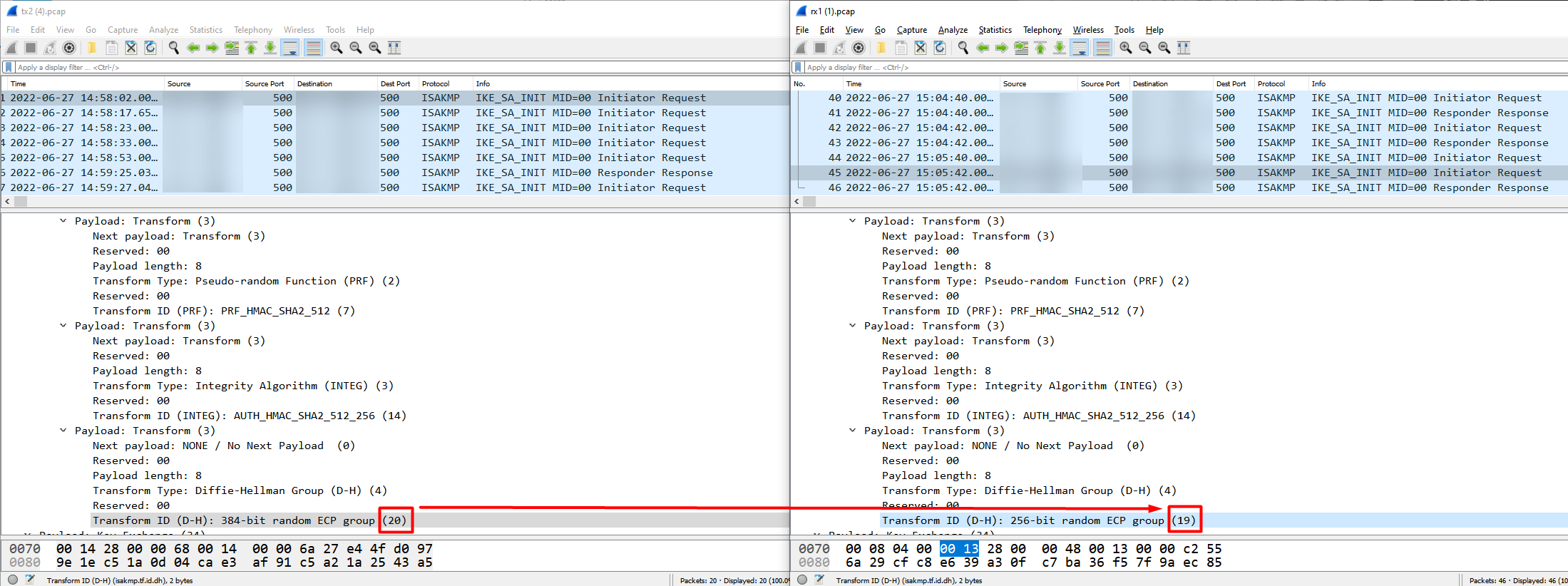

Wireshark
Take a packet capture on both VPN peers and open them in Wireshark side-by-side

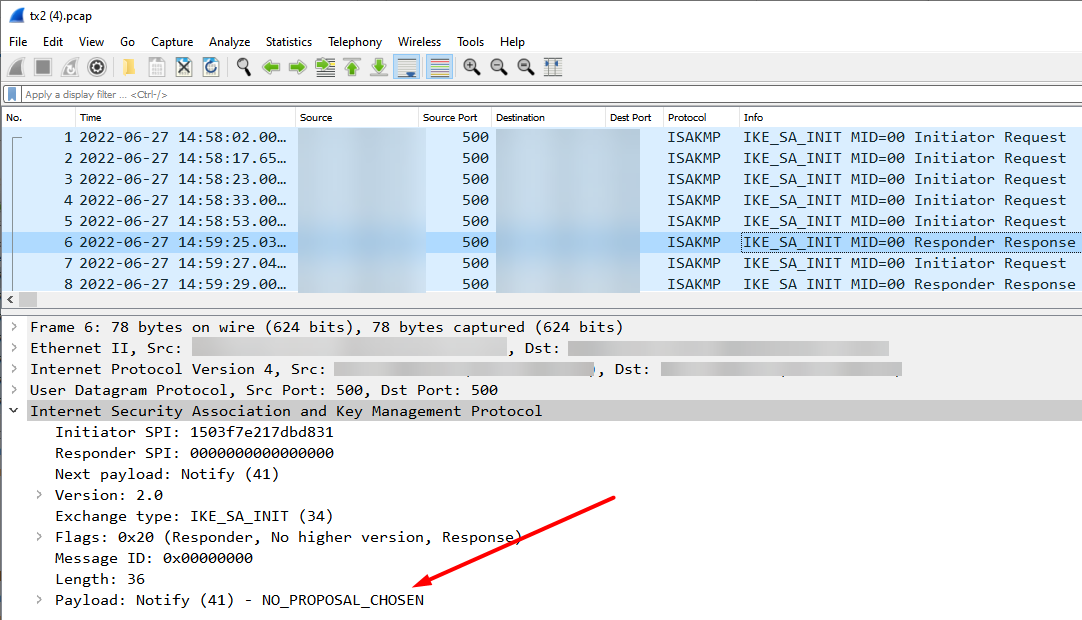

This will cause the VPN negotiation to fail with this message:
ikemgr.log
Run the below command via CLI on both peers
>less mp-log ikemgr.log
2022-06-27 12:10:41 [ERR ]: Proposal Unmatched.! 2022-06-27 12:10:41 [PWRN]: [IKEGatewayTest1:360] IKEv2 proposal doesn't match, please check crypto setting on both sides. 2022-06-27 12:10:41 [PERR]: no proposal chosen. 2022-06-27 12:11:40 [PWRN]: [IKEGatewayTest1:354] unauthenticated NO_PROPOSAL_CHOSEN received, you may need to check IKE settings.
Environment
- PAN-OS
- Palo Alto Networks firewall configured with IPSec VPN Tunnel
Cause
This issue occurs when the two VPN peers have a mismatch in DH Group
Resolution

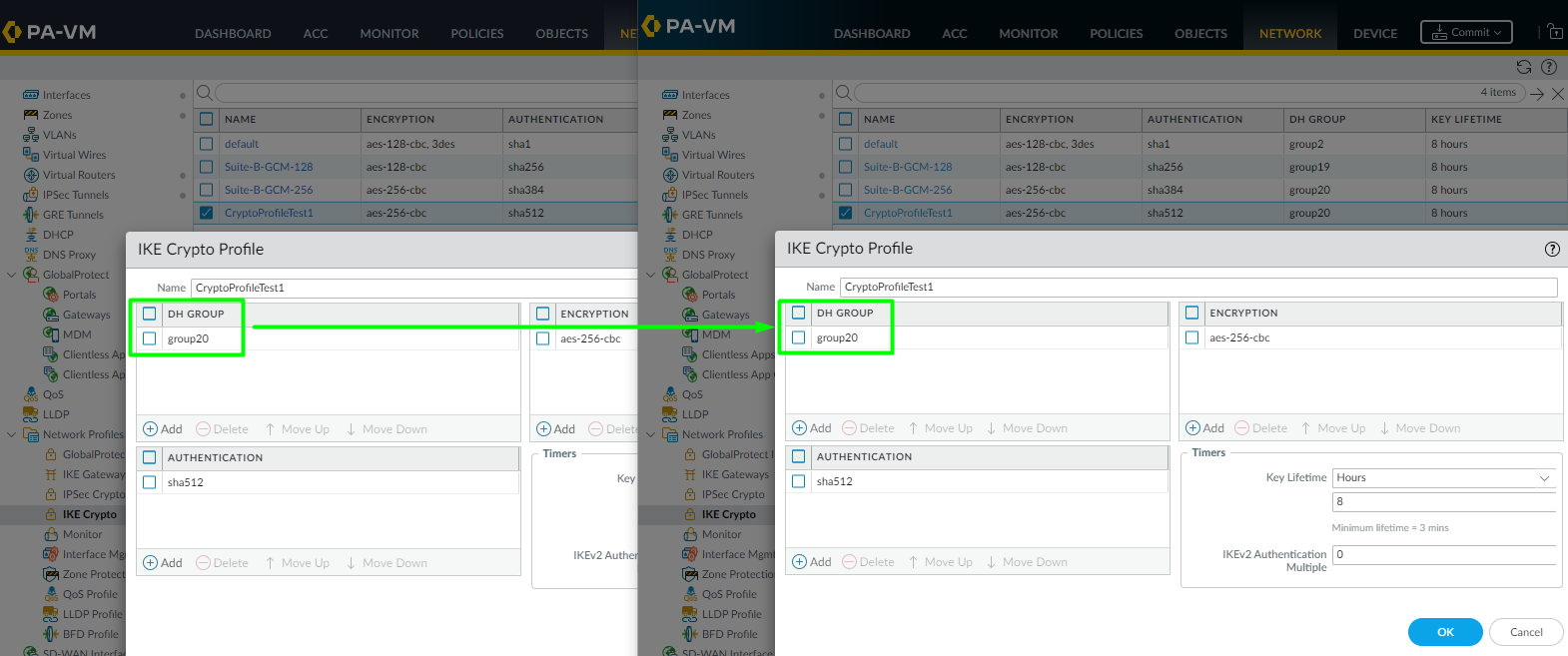

- Configure both sides of the VPN to have a matching DH Group algorithm
(If your VPN peer is a different vendor firewall, perform their equivalent/same Phase 1 DH Group configuration change on their firewall if they are the source of the mismatch)
- Perform a Commit
- Run the below commands a couple times each on both the VPN peer firewall CLIs to get them to freshly initiate and form:
>clear vpn ike-sa gateway <name> >clear vpn ipsec-sa tunnel <name>
