SSH Decryption Supported Key exchange algorithms (KEX) and Host Key Algorithms when seeing 'decrypt-unsupport-param' as the session end reason

SSH connections are not successful when enabling decryption for SSH sites (SSH Proxy).  Where the Session end-reason is 'decrypt-unsupport-param'

Example of SSH session end-reason of 'decrypt-unsupport-param'

> show session id 512455

Session          512455

        c2s flow:
                source:      10.10.10.78 [TRUST]
                dst:         52.224.xx.xx
                proto:       6
                sport:       62222           dport:      22
                state:       INIT            type:       FLOW
                src user:    paloalto\test
                dst user:    unknown

        s2c flow:
                source:      52.224.xx.xx [UNTRUST]
                dst:         10.10.10.78
                proto:       6
                sport:       22              dport:      4422
                state:       INIT            type:       FLOW
                src user:    unknown
                dst user:    paloalto\test

        start time                           : Wed Nov 14 12:03:07 2024
        timeout                              : 15 sec
        total byte count(c2s)                : 1572
        total byte count(s2c)                : 858
        layer7 packet count(c2s)             : 10
        layer7 packet count(s2c)             : 5
        vsys                                 : vsys1
        application                          : ssh
        rule                                 : SSH
        service timeout override(index)      : False
        session to be logged at end          : True
        session in session ager              : False
        session updated by HA peer           : False
        address/port translation             : source + destination
        nat-rule                             : NAT-RULE-1(vsys1)
        layer7 processing                    : enabled
        URL filtering enabled                : True
        URL category                         : any
        session via syn-cookies              : False
        session terminated on host           : False
        session traverses tunnel             : False
        session terminate tunnel             : False
        captive portal session               : False
        ingress interface                    : ethernet1/4
        egress interface                     : ethernet1/2
        session QoS rule                     : N/A (class 4)
        tracker stage firewall               : TCP FIN
        end-reason                           : decrypt-unsupport-param

PANOS-10.0 and Later

SSH Decryption Supported Key exchange algorithms (KEX) and Host Key Algorithms when seeing 'decrypt-unsupport-param' as the session end reason.

The session end reason is giving 'decrypt-unsupport-param' as the error message. From the working pcaps when decryption is not enabled we see the ssh server sending 'Key Exchange (method:diffie-hellman-group14-sha1)' as the Key exchange algorithm. From my research it looks like we currently only support the following Key exchange algorithms (KEX):

diffie-hellman-group-exchange-sha256
diffie-hellman-group-exchange-sha1

For some reason we do not list supported KEX algorithms in the online documentation. We do mention the 'Host' Key Algorithms SSH-RSA (2048-bit) & SSH-DSS (2048-bit), but not the KEX algorithms:
https://docs.paloaltonetworks.com/compatibility-matrix/reference/supported-cipher-suites/cipher-suites-supported-in-pan-os-10-2/cipher-suites-supported-in-pan-os-10-2-decryption#idf5ea9a25-3f5c-47d7-90f7-51c7a93696b4

If you would like we can run the debug flow basic, proxy basic, ssl basic during a test to confirm the above. Otherwise you will need to make a decryption exception at least for those ssh servers

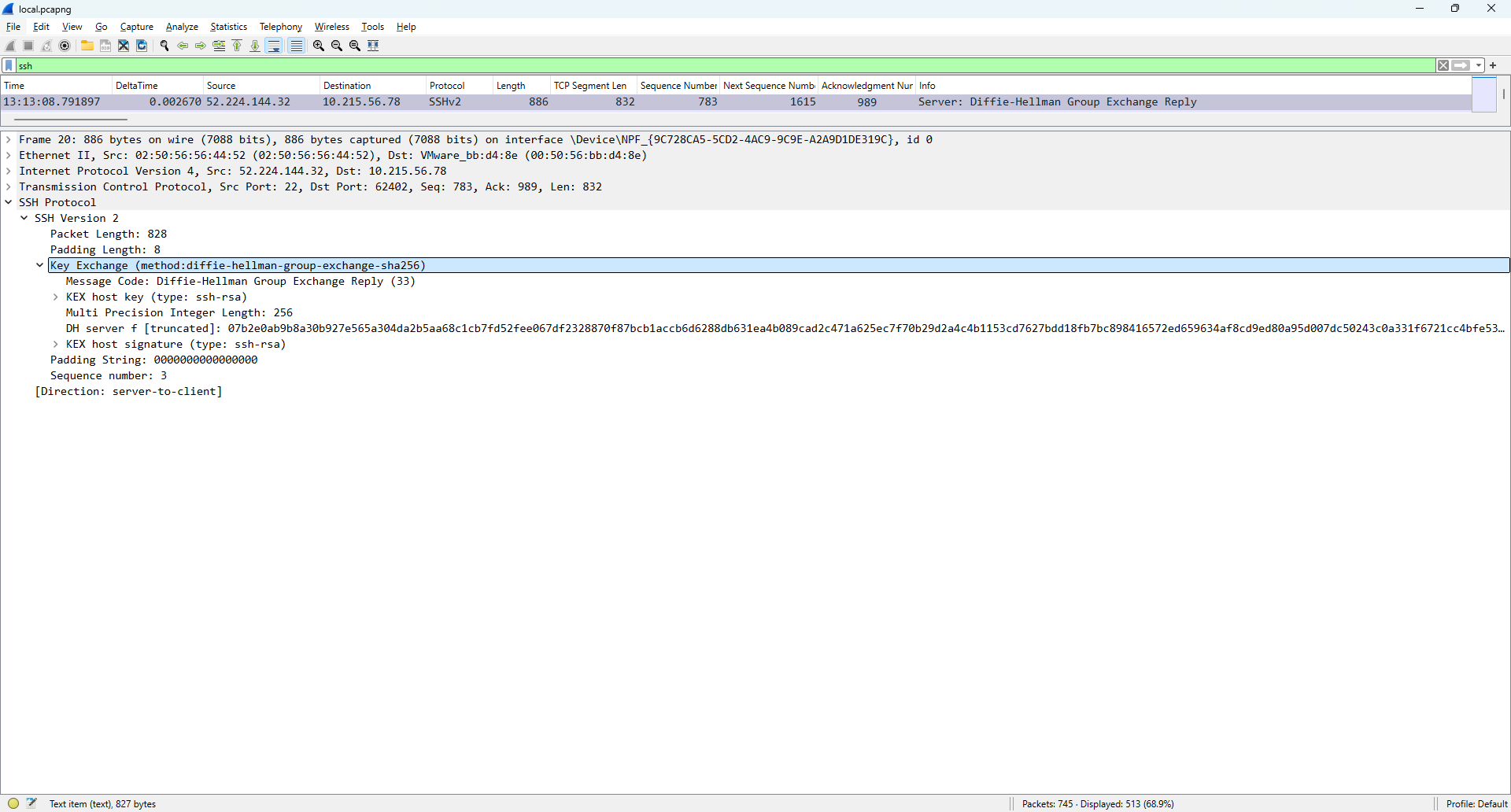

To verify what SSH destination servers are using take a packet capture from the end user's computer while not decrypting and on the packet line named 'Server:  Diffie-Hellman Group Exchange Reply' and in the Packet Details window in Wireshark expand the 'SSH Protocol' and expand the 'Key Exchange' and note the KEX after the word 'method' as seen in the screenshot below.  In this example the SSH server is showing it uses 'Key Exchange (method:diffie-hellman-group-exchange-sha256)' and the KEX host key is 'KEX host key (type: ssh-rsa)':

Make a non-decrypt policy for SSH destinations servers that do not support or have the following enabled:

PA supported Key exchange algorithm.
1. diffie-hellman-group-exchange-sha256
2. diffie-hellman-group-exchange-sha1

PA supported host key algorithm.
1. ssh-rsa
2. ssh-dss
