Authentication Portal generates 500 Internal Server Error

Authentication Portal generates 500 Internal Server Error

5331
Created On 05/28/24 08:54 AM - Last Modified 12/12/24 05:08 AM


Symptom


  • User is configured to receive a captive portal page.
  • The firewall presents him a captive portal Page.
  • Now the user changes the language on the browser from English to French (or any other).
  • User enters the credentials and clicks on login.

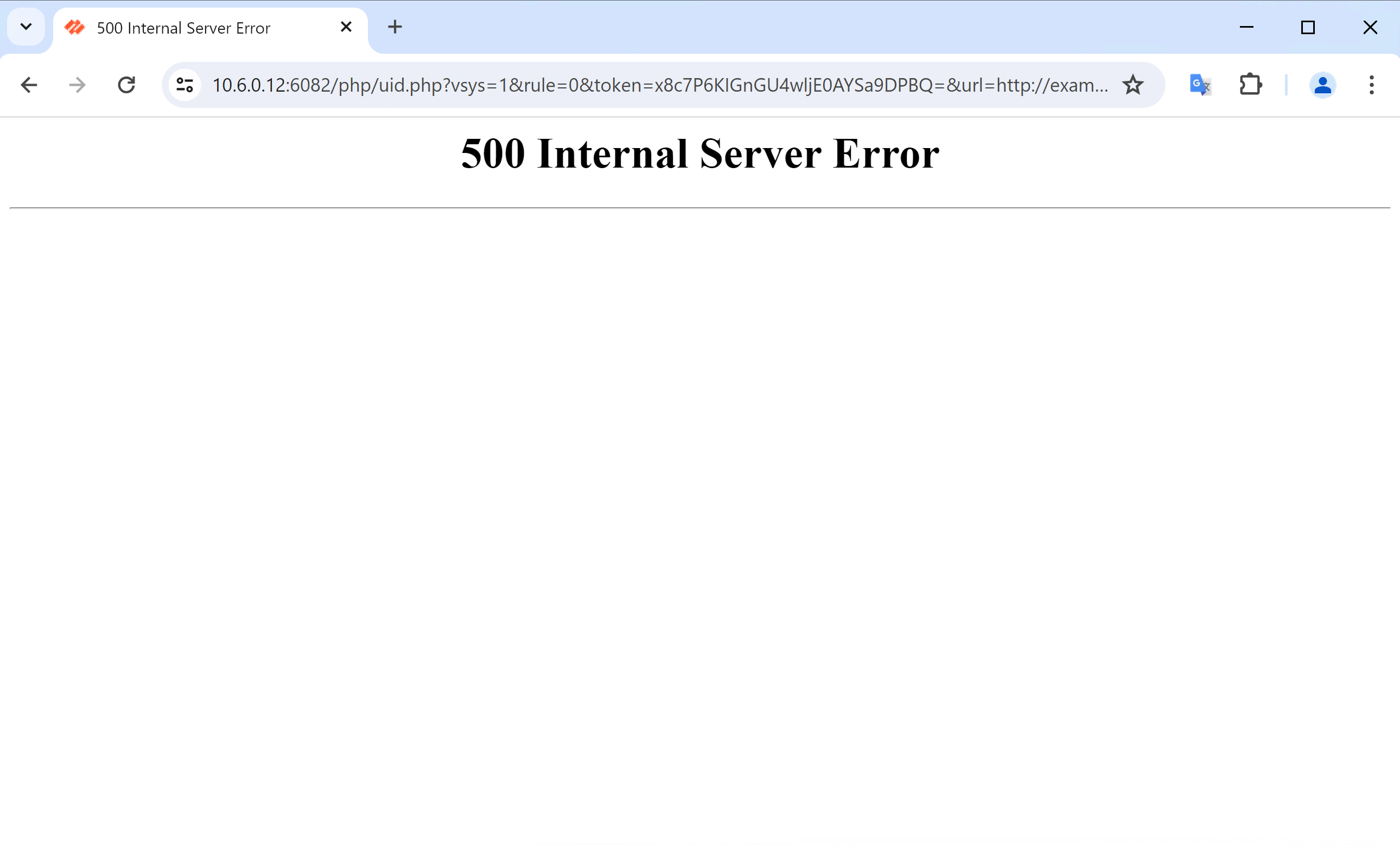

  • Here the captive portal (Authentication Portal) displays "500 Internal Server Error"


Environment


  • Palo Alto Networks Firewalls
  • Supported PAN-OS
  • Authentication Portal in Redirect Mode

Cause

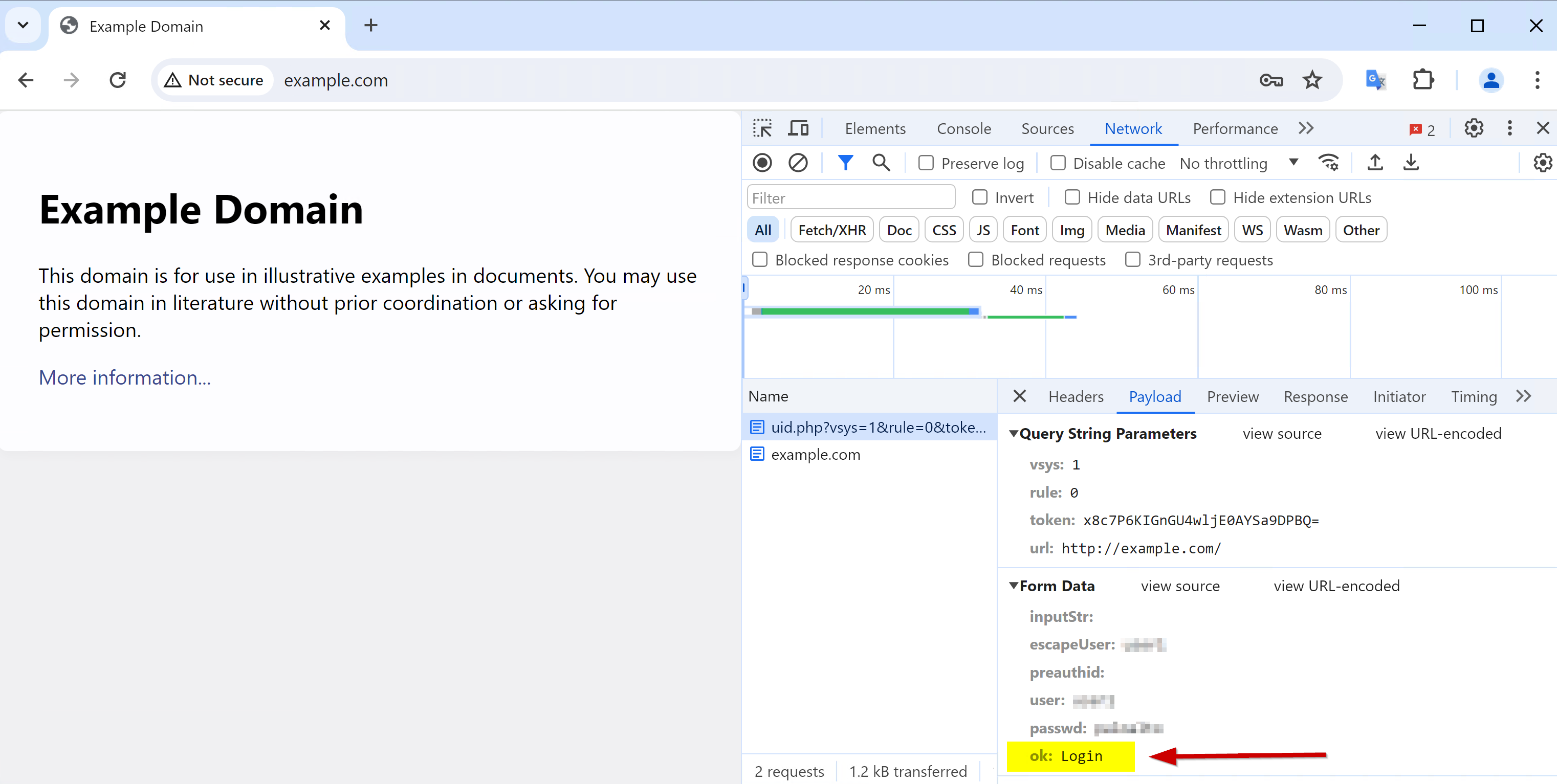

  • The firewall is expected to receive an HTTP POST with a payload that has the ok: field set to Login:
  • But when the authentication portal is translated, the payload of the HTTP POST doesn't have the ok: field set to Login, so the firewall considers this as a different page.

  • l3svc_ngx_error.log generates the following error:
> tail follow yes mp-log l3svc_ngx_error.log
21:15.923 -0700 Error:  pan_parse_uid_post_params(pan_l3svc_utils.c:2347): Login OK not present

Resolution


  1. This is expected as the "ok" field is now changed.
  2. The resolution is not to change the web page language during authentication.
