How to verify if the firewall is nearing or has reached its maximum capacity of URLs or IP Addresses in External Dynamic Lists
21987
Created On 03/23/23 23:58 PM - Last Modified 05/19/26 21:12 PM
Objective
- Check if the firewall is nearing or has reached its 'Maximum Number of IPs/URLs per System
- Reduce the number of URLs and/or IPs within the EDL's configured on a firewall
- In Cloud NGFW for Azure and Cloud NGFW for AWS, EDL's are referred to as Intelligent Feeds
Environment
- NGFW
- External Dynamic Lists (EDL's)
- Security Policy
Procedure
- Check the maximum capacity of Max IPs per System or Max URLs per System for your firewall model
- Using firewall CLI:
> show system state filter cfg.general.max-edl-ip cfg.general.max-edl-ip: 50000 > show system state filter cfg.general.max-edl-url cfg.general.max-edl-url: 50000
- Use the Product Comparison Tool to find the Max IPs per System and Max URLs per System (see EDL section)
- For VM-Series Firewalls, see Maximum Limits Based on Tier and Memory (see EDL section)
- For Cloud NGFW Firewall for Azure, see Maximum Limit per Cloud NGFW Resource (see 'IP addresses across all feeds')
- For Cloud NGFW Firewall for AWS, see Maximum Limit per Cloud NGFW Resource (see 'IP addresses across all feeds')
- Verify if the firewall is nearing or has reached its Total Capacity for any values:

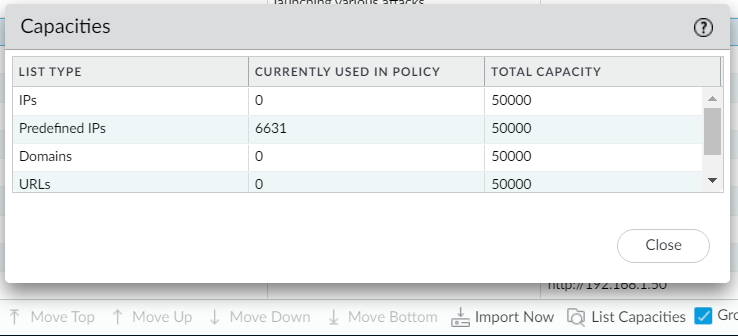

- Navigate to Objects > External Dynamic Lists > click List Capacities
- Using firewall CLI:
> request system external-list list-capacities List Type Currently used in policy Total Capacity IP 0 50000 Domain 0 50000 URL 0 50000 IMSI/IMEI 0 2000 Predefined-IP 6631 50000Note: List entries count toward the maximum only if the external dynamic list is used in policy. If you exceed the maximum number of entries the model supports, the firewall generates a System Log and skips the entries that exceed the limit. More Info
- Discover which EDL contains a high number of (or any unused/unnecessary) IP or URL entries to View External Dynamic List Entries

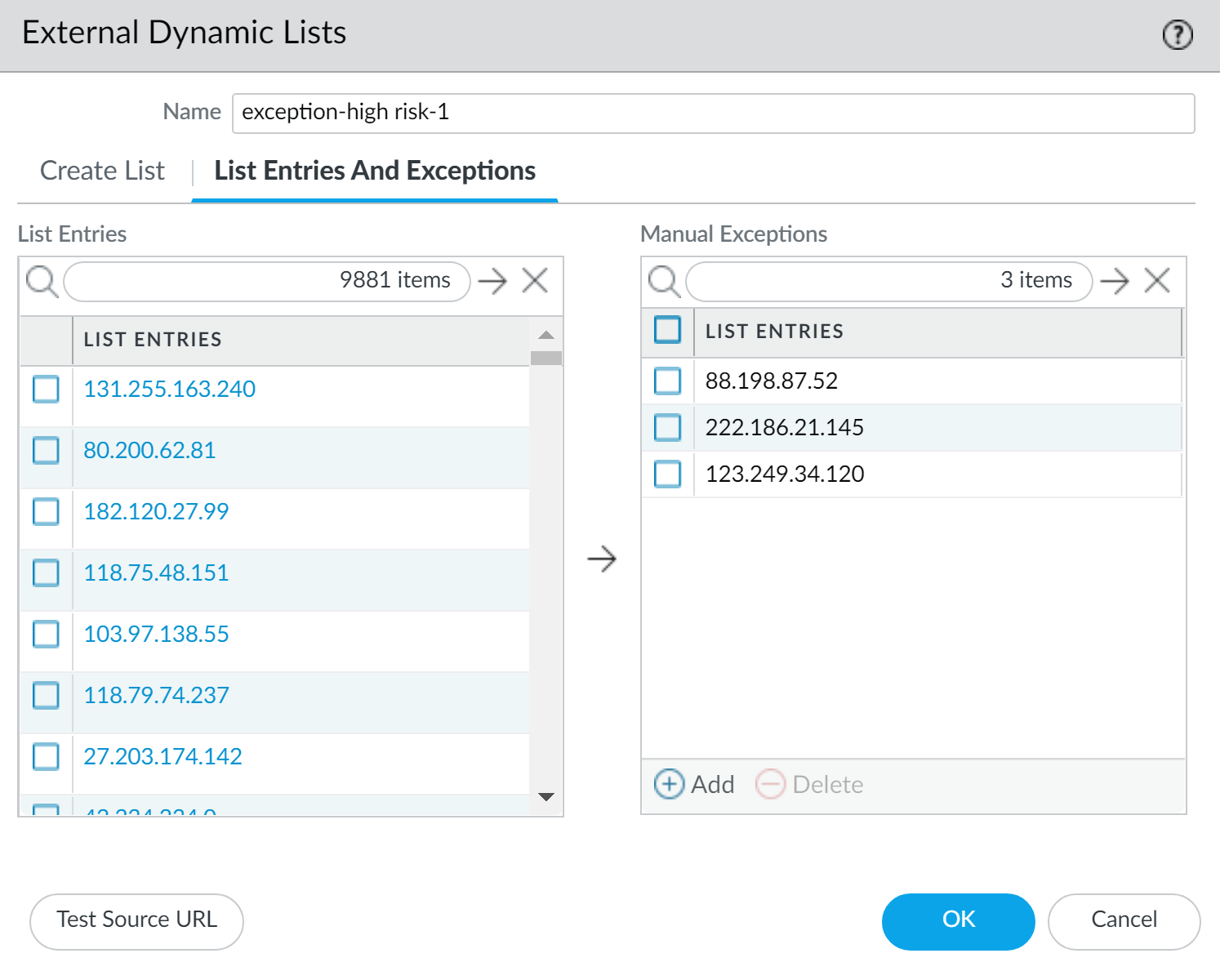

- Navigate to Objects > External Dynamic Lists > edit EDL > click List Entries and Exceptions
- Go to the EDL Source (not on the firewall), and delete any unnecessary / unused entries on that list
Additional Information
- If using the Cloud NGFW for Azure or Cloud NGFW for AWS, go to the Intelligent Feed source and view the contents of the Intelligent Feed there.
- External Dynamic Lists (EDL) are evaluated in a specific order that impacts how the firewall allocates resources.
-
Evaluation Order: EDLs are processed from top to bottom as they appear in the WebGUI.
-
Capacity Limits: Entries are only calculated against the firewall’s hardware capacity limits if the EDL is actively used in a Security Rule.
-
Log Notifications: If the firewall exceeds its maximum entry limit, a System Log is generated, and any entries beyond the limit are skipped.
-
