How to reduce the number of EDL's configured on the firewall
15837
Created On 03/22/23 19:45 PM - Last Modified 08/23/23 18:41 PM
Objective
- Check if the firewall is nearing or has reached its Max Number of Custom Lists for EDL's
- Reduce the number of EDL's configured on a firewall
Environment
- NGFW
- External Dynamic Lists (EDL's)
Procedure
- Check the maximum capacity of External Dynamic Lists (EDL's) for the firewall
- Using firewall CLI:
admin@PA-VM> show system state filter cfg.general.max-edl-objs cfg.general.max-edl-objs: 30
- Use the Product Comparison Tool to find the Max number of custom lists (see EDL section)
- For VM-Series Firewalls, see Maximum Limits Based on Tier and Memory (see EDL section)
- Navigate to Objects > External Dynamic Lists > check the number of EDL's configured (excluding Predefined lists)
Note: if your firewall is multi-vsys, you need to add the number of items listed under each vsys to get the total of EDL's configured on the firewall
- Delete any unnecessary/unused EDL's from Objects > External Dynamic Lists
Additional Information
For more information on configuring EDL's and what counts towards the maximum, see the below:
PAN-OS® Administrator’s Guide - External Dynamic List
PAN-OS Web Interface Help - Objects > External Dynamic Lists
PAN-OS® Administrator’s Guide - Use an External Dynamic List in Policy
PAN-OS® Administrator’s Guide - Configure the Firewall to Access an External Dynamic List
PAN-OS® Administrator’s Guide - Enforce Policy on an External Dynamic List
Note: List entries only count toward the firewall limits if they belong to an external dynamic list that is referenced in policy. This can be verified under Objects > External Dynamic Lists > click List Capacities ( or using the CLI command: > request system external-list list-capacities )

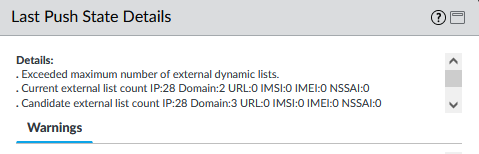

If you perform a Commit while the number of EDL's configured is exceeding the Max, you may see the below Commit Error:
Commit Error: Exceeded maximum number of external dynamic lists. Current external list count IP:12 Domain:1 URL:3 Candidate external list count IP:19 Domain:1 URL:11 Failed to refresh EDL config Commit failed
Additionally, you may find the below error in ms.log:
>less mp-log ms.log 2020-02-20 19:48:29.390 -0800 Error: pan_ebl_cfg_load_new_config(pan_cfg_ebl.c:6332): EDL Exceeded maximum number of external dynamic lists. Current external list count IP:10 Domain:0 URL:0 Candidate external list count IP:31 Domain:0 URL:0
