Receiving Alarms with message "HIGH DISK CAPACITY UTILIZATION" in Prisma SD-WAN UI
776
Created On 02/21/23 11:09 AM - Last Modified 06/24/25 04:33 AM
Symptom

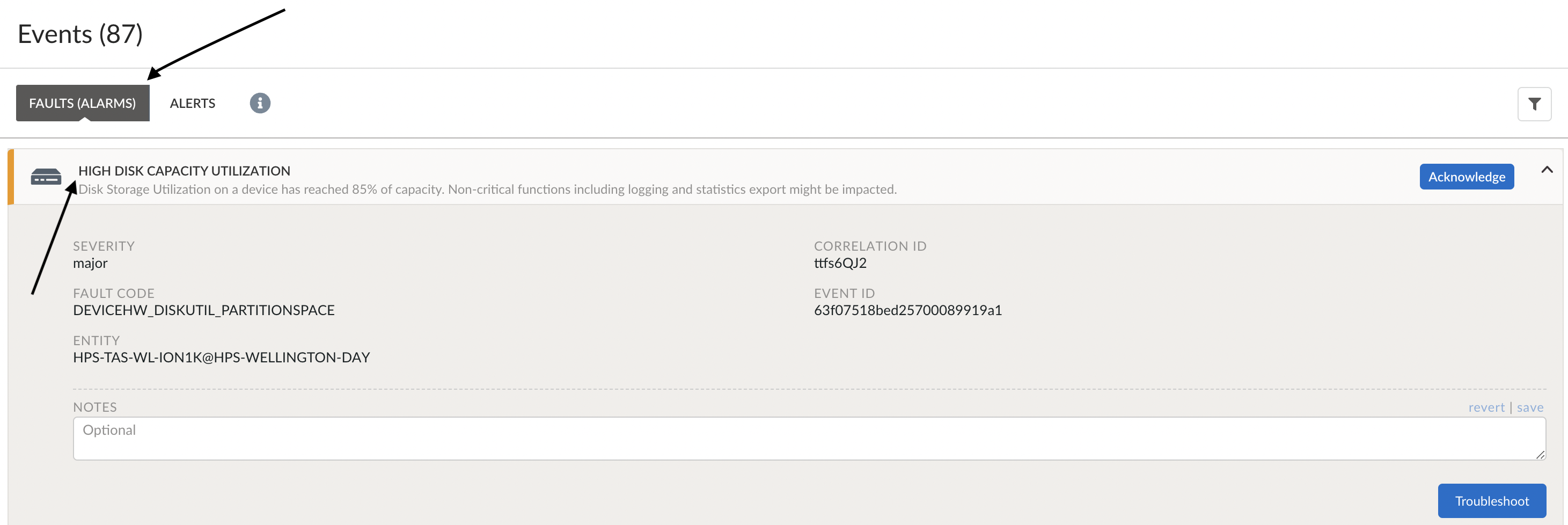

- When logging to SD-WAN UI, events page, "HIGH DISK CAPACITY UTILIZATION" alarms are seen
Environment
- Prisma SD-WAN
- Events
- Alarms
- High Disk Capacity Utilization
Cause
- You may run into this error message when the free disk storage utilization on a device has reached 85% of capacity.
Resolution
- Login to the Ion Device
- Run the command from the CLI to list the core files on the disk.
# file list core
Example:
N-HPS-WELLINGTON-DAY-1K# file list core
total 2.3G
55M core..NET ThreadPool.11084.10-006092-8487.1676160732.5.6.3-b11.gz
.....
- Delete the outdated core files by using the CLI command below. Read "Note" before running the command
file remove core (File Name)
Example:
file remove core core..NET ThreadPool.11084.10-006092-8487.1676160732.5.6.3-b11.gz
Note: The files of "ThreadPool" and "Python" can be removed without issues. The other core files like "FC", VPNd, "TCPProxy" must not be removed if there is a need of troubleshooting / analysis of any issues.Additional Information
If the High Disk Utilization Alarms continue after removing core files, Open a Support case for investigation.
