HA1-Backup link shows Down on the HA widget but up on the CLI

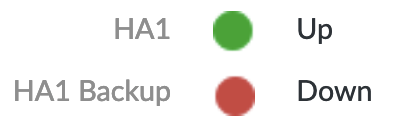

• HA1-Backup link shows Down on the High-Availability widget in the web GUI: Dashboard > High Availability widget

• On the CLI, the HA interface shows as "up". In this example, interface 1/4 is configured as the HA1-Backup link.

admin@FW-A(active)> show interface all

name               id    speed/duplex/state            mac address
---------------------------------------------------------------------------
ethernet1/4        19    10000/full/up                 7c:89:c3:1d:27:13

name             id    vsys zone       forwarding          tag    address
---------------- ----- ---- ---------- ------------------- ------ ------------------
ethernet1/4      19    1               ha                  0      192.168.1.1/30

• "show high-availability all" CLI command reports interface "Up" as well

admin@FW-A(active)> show high-availability all
!!!
    HA1 Backup Control Link Information:
      IP Address: 192.168.1.1/30
      MAC Address: 7c:89:c3:1d:27:13
      Interface: ethernet1/4
      Link State: Up; Setting: 10Gb/s-full
!!!

• Palo Alto Networks Firewalls configured in High-Availability.
• Supported PAN-OS.
• HA1-Backup link configured.

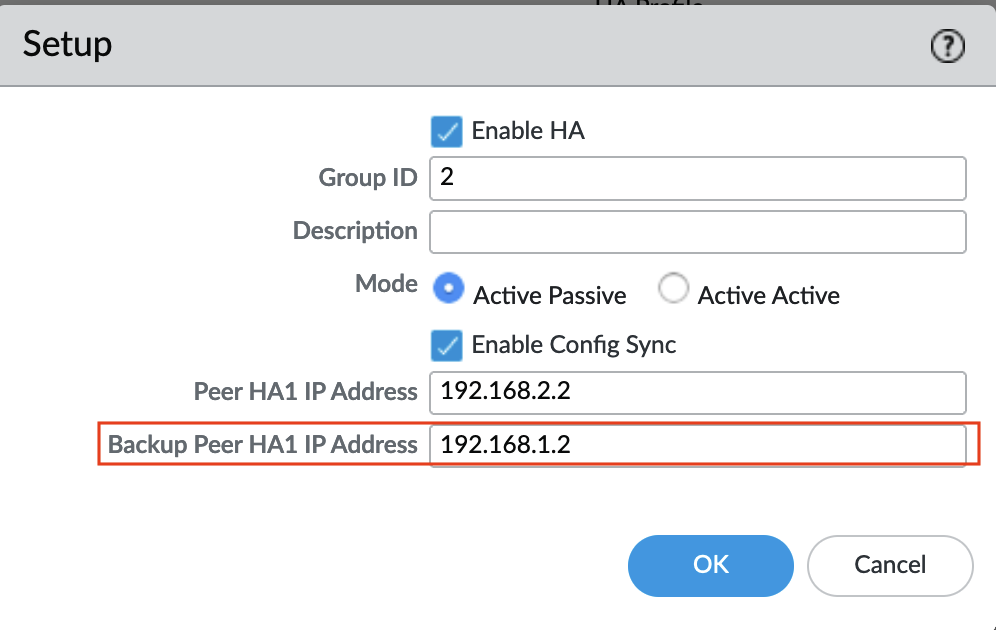

• Configure the correct Backup Peer HA1 IP address in both High Availability devices:
• Commit the configuration.
