Manual Global Protect gateway selection fails to connect
2438
Created On 11/14/22 18:46 PM - Last Modified 08/04/23 21:13 PM
Symptom
- Gateway auto-selection works fine.
- When the same gateway is manually selected from the GP client, it does not connect
- No error message is displayed.
Environment
- Palo Alto Firewalls
- Supported PAN-OS
- Global protect Manual gateway selection
Cause
- The leading space in the configured gateway name.
- This can be confirmed by the logs in PanGPS.log.
- Notice the error below during the "Manual Gateway processing starts" phase
(P3176-T4412)Debug(4279): 11/11/22 16:28:18:800 ----Manual Gateway processing starts----
(P3176-T4412)Debug(4292): 11/11/22 16:28:18:800 user-profile-type tag exists with value 0
(P3176-T4412)Debug(4309): 11/11/22 16:28:18:800 ProcessManualSetGateway Second_External_Gateway
(P3176-T4412)Debug( 750): 11/11/22 16:28:18:800 SetNextScheduledHipCheckTime to 0
(P3176-T4412)Debug( 772): 11/11/22 16:28:18:800 m_bScheduleFlag is set to 0
(P3176-T4412)Debug(4316): 11/11/22 16:28:18:800 Reset just resumed
(P3176-T4412)Debug(1492): 11/11/22 16:28:18:800 GetExternalGatewayItemByIP: gatewayIP is Second_External_Gateway
(P3176-T4412)Debug(1502): 11/11/22 16:28:18:800 pGatewayItem->GetGatewayStr() is vpn1-xyz.com
(P3176-T4412)Debug(1527): 11/11/22 16:28:18:800 pGatewayItem->GetRemoteHostStrV6() is
(P3176-T4412)Debug(1502): 11/11/22 16:28:18:800 pGatewayItem->GetGatewayStr() is vpn2-xyz.com
(P3176-T4412)Debug(1527): 11/11/22 16:28:18:800 pGatewayItem->GetRemoteHostStrV6() is
(P3176-T4412)Debug(1544): 11/11/22 16:28:18:800 pGatewayItem->GetDescription() is First_External_Gateway
(P3176-T4412)Debug(1544): 11/11/22 16:28:18:800 pGatewayItem->GetDescription() is Second_External_Gateway <<< There is a leading space in the gateway name
(P3176-T4412)Debug(1551): 11/11/22 16:28:18:800 GetExternalGatewayItemByIP does not find Second_External_Gateway
(P3176-T4412)Error(4324): 11/11/22 16:28:18:800 Cannot retrieve gateway ip while processing manual set gateway <<< Gateway Manual selection failure
(P3176-T4412)Info ( 531): 11/11/22 16:28:18:800 msgtype = manual-gatewayResolution

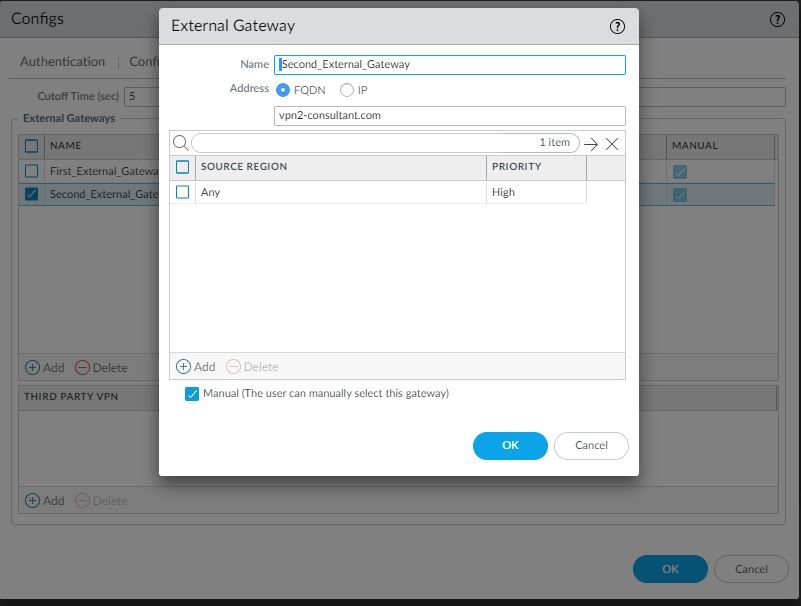

- Edit the portal configuration and remove the leading space in the external gateway name.
- Click on OK and Commit the changes.
GUI: Network > GlobalProtect > Portals > (portal name) > External > (Click, and remove the space the portal name)
