The captive portal comfort page is not loading custom images from third-party sites properly.

The captive portal comfort page is not loading custom images from third-party sites properly.

6225
Created On 11/09/22 16:19 PM - Last Modified 12/02/23 00:59 AM


Symptom


  • When configured with external third-party images, the Captive Portal response page will not display the images.

CP without Logo edited.png





Environment


  • Palo Alto Firewalls
  • Supported PAN-OS
  • Captive Portal configured

Cause


  • This is seen when captive portal is enabled for all traffic from Trust zone to Untrust (to the internet)
  • Captive Portal will also be applied to the custom image site, which will prevent logo/image loading without prior authentication
  • Therefore, 3rd-party images will not load correctly on the response page

Resolution


  1. Create a Custom URL Category for the external image's URL.

Example: In this example, the following image link is used
> www.paloaltonetworks.com/content/dam/pan/en_US/images/logos/brand/primary-company-logo/PANW_Parent_Brand_Primary_Logo_RGB.png

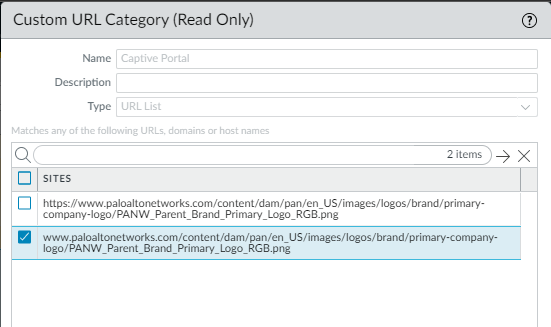

CP URL Category.png
  1. Create a new Authentication Policy including the above-created URL category with the action as 'default-no-captive-portal' and put the rule on top of all rules.

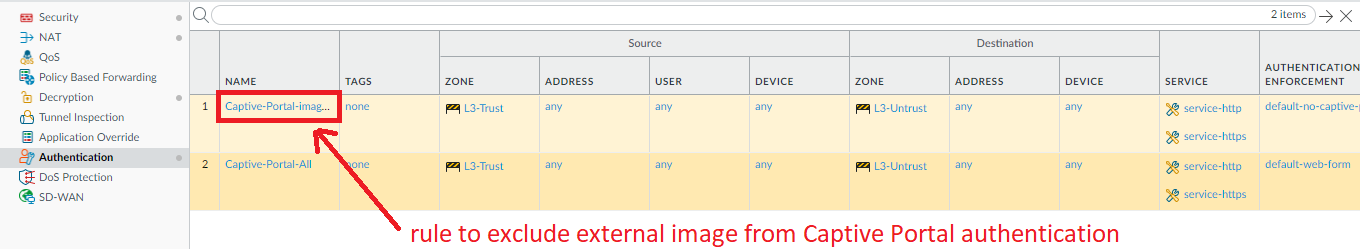

CP Rules edited.png

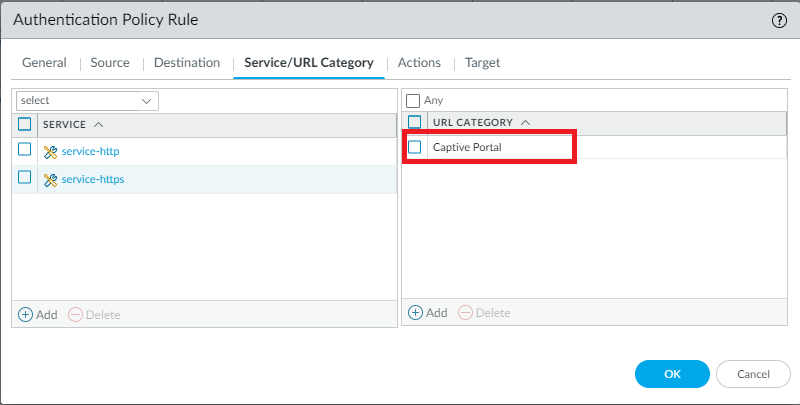

CP Auth URL edited.png

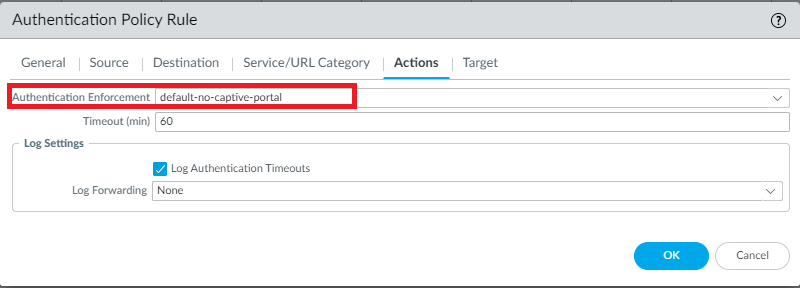

CP Auth Action edited.png

  1. Commit and Verify the working

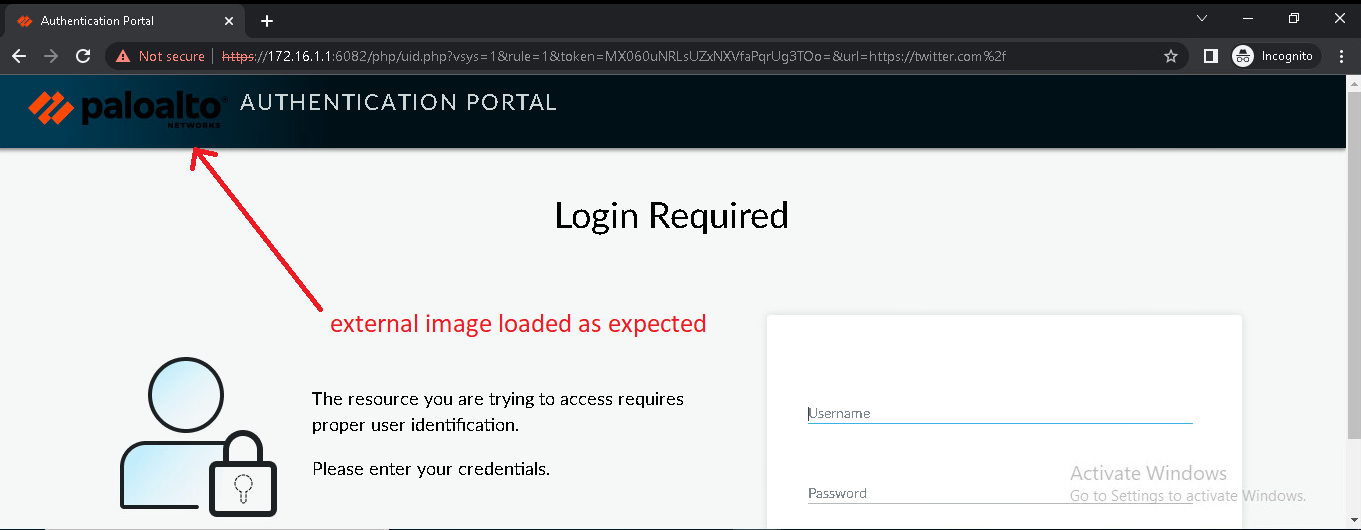

CP with Logo edited.png
