Panorama template unable to select virtual router(VR) for next hop with multiple VR

Panorama template unable to select virtual router(VR) for next hop with multiple VR

2087
Created On 10/31/22 15:42 PM - Last Modified 04/29/24 23:14 PM


Symptom


  • Configure multiple VR (Virtual Routers) in the Panorama Template

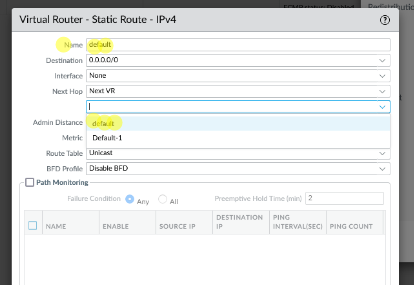

  • Create a static route, select "Next VR", and try to add the newly configured VR as the next hop.
  • Panorama does not display any of the configured VRs but only displays its own VR for the next hop.



Environment


  • Any Panorama
  • Template Configuration
  • Virtual Routers (VR)


Cause


Software Issue.

Resolution


  1. The issue is resolved under defect PAN-176379
  2. Upgrading to the fixed versions will resolve the issue 10.2.4, 10.1.9
  3. As a work-around, configure the next hop VR using from CLI command.
set template <template-name> config network virtual-router <vr-name> routing-table ip static-route Test destination <destination-address> nexthop next-vr
