How to add DUO SAML authentication to GlobalProtect

16646

Created On 09/28/22 18:50 PM - Last Modified 05/08/24 20:26 PM

Authentication Profile

GlobalProtect App

SAML

User Mapping

Authentication

VPNs

Configuration Module

9.1

10.2

10.1

11.1

11.0

GlobalProtect

PAN-OS

Next-Generation Firewall

Objective

Configure DUO SAML authentication for GlobalProtect.

Environment

PaloAlto firewall
Active Directory Domain Controller on prem
GlobalProtect already configured to connect to external gateway. it uses LDAP authentication profile.
A service account exists in AD with read permissions

Procedure

1. Create admin account in DUO:

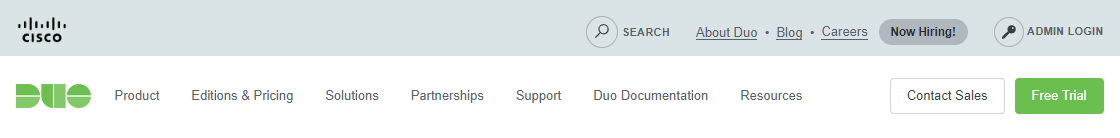

go to https://duo.com
click Free Trial
Fill in required details
Enable Duo push with Duo Mobile app, follow on screen instructions

2. To use SAML we need to configure Single Sign On and Authentication source first.

on your AD DC open Duo Admin Panel and click Single Sign-On
agree T&C, click Activate and Start Setup
it's not possible to customize SSO subdomain in free trial
on the Add Authentication Source page choose Active Directory
Install the Authentication Proxy - it is an application which links your DUO account and on prem Active Directory. Later when you log in to GP, it will check if there is a valid user in AD
click on Add Authentication Proxy, download installer and install it
Find and open authproxy.cfg (C:\Program Files\Duo Security Authentication Proxy\conf\authproxy.cfg) or open Duo Authentication Proxy Manager
add service account credentials to authproxy.cfg, in DUO click your newly created Authentication proxy
click Copy next to point 1.2 in Duo portal and paste content in authproxy.cfg, uncomment lines with service account username and password and enter credentials, for example

[sso]
rikey=...
service_account_username=...
service_account_password=...

in [ad client] section of authproxy.cfg, uncomment and add your AD DC IP address, service account credentials and search_dn, for example:

[ad_client]
host=10.193.182.20
service_account_username=...
service_account_password=...
search_dn=DC=pantac-182-20,DC=local

click Validate, in case of any errors correct configuration
back on DUO portal connect the Authentication Proxy to Duo, click Generate Command, open command line on AD DC with elevated privileges, paste command and execute
click Run test under "3. Verify the proxy is connected", it should say Connected to Duo
click Return to Configuration to return to the "Active Directory Configuration" page

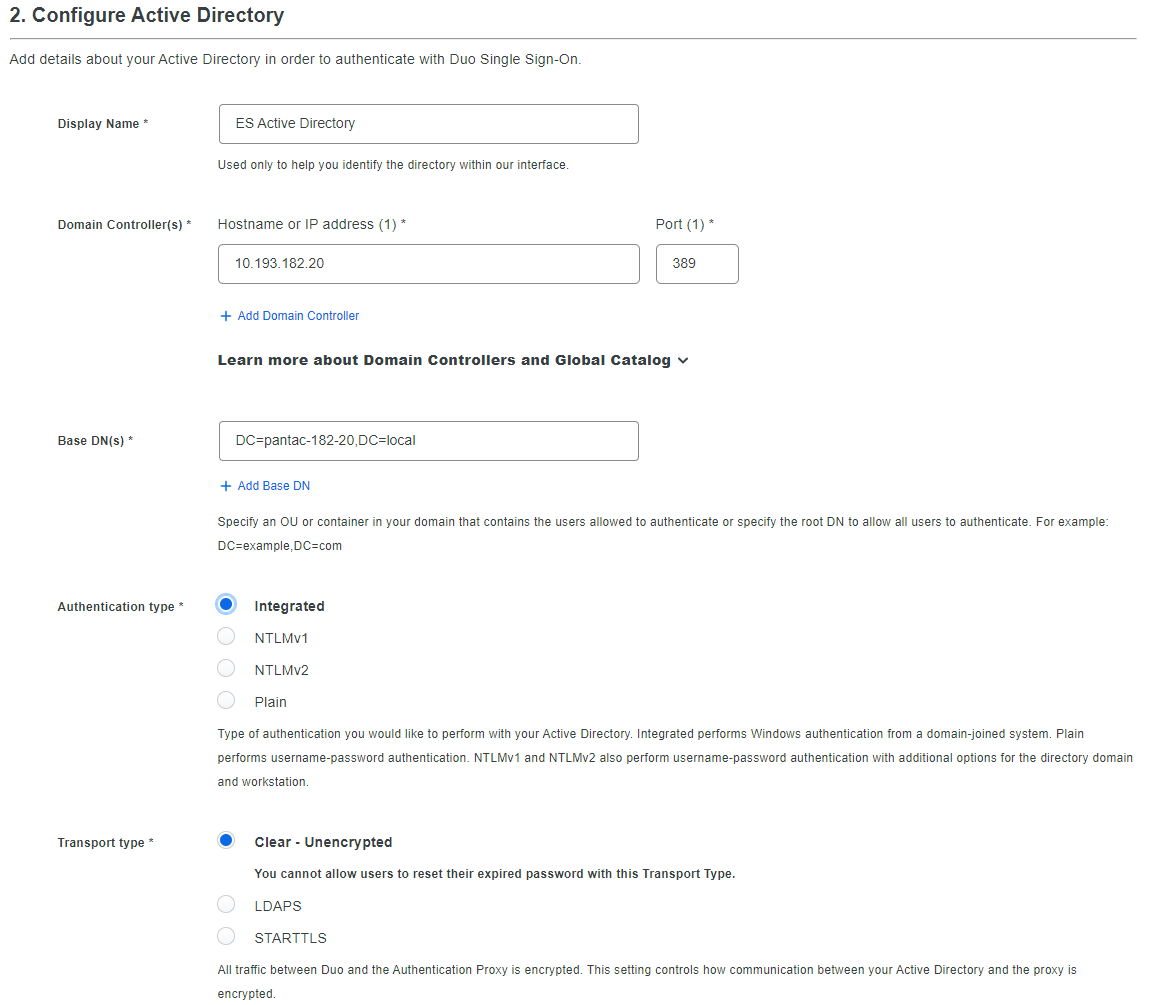

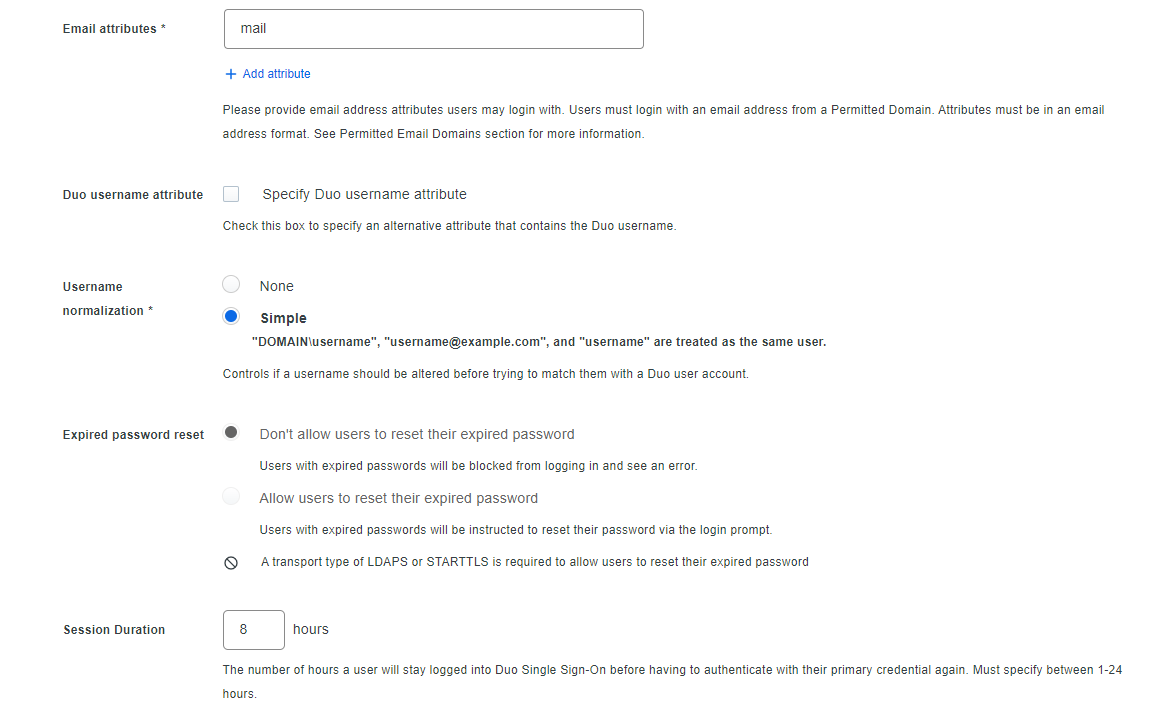

Configure Active Directory as follows

3. Get and configure a domain.

before next step we need to get our own domain. Usually in corporate environments there is already a domain owned by a company. Idea is users can log in only using corporate email address. Since this is a lab set up we don't have a corporate domain but we can get one for free. Later we will add email attributes in AD using our new domain
please visit https://www.freenom.com
enter chosen domain name and click Check availability
there should be a free domain listed

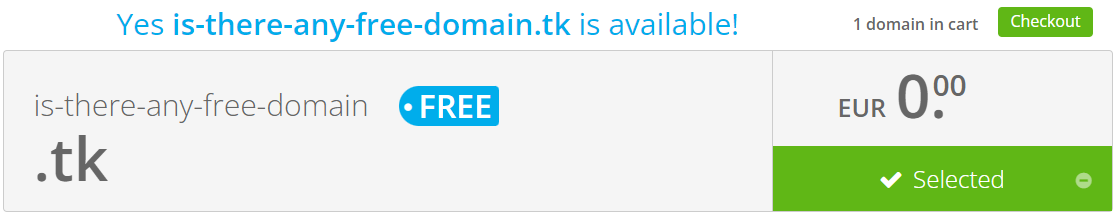

if you click Get it now, it says not available. You must add TLD in search box so in our example is-there-any-free-domain.tk, search again and you should see
finish the process along with registration if you don't have account
in Freenom go to Services > My Domain, click Manage Domain > Manage Freenom DNS

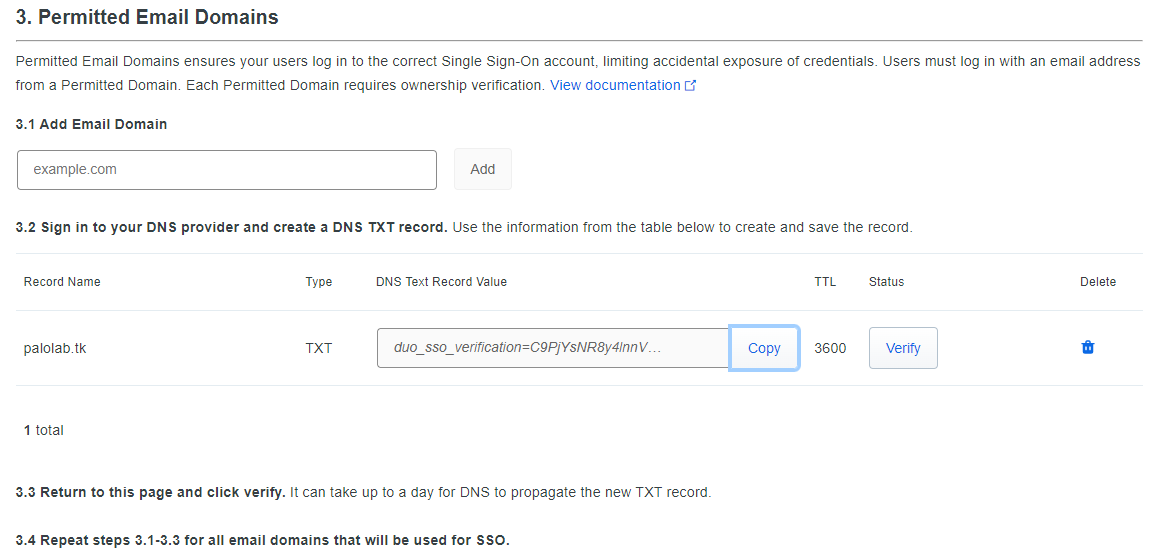

in DUO portal move to step 3 Permitted Email Domains
add your domain name in 3.1
copy DNS record from 3.2 and go to Freenom portal
create TXT record and pasted copied value to Target field
wait a few minutes and click Verify

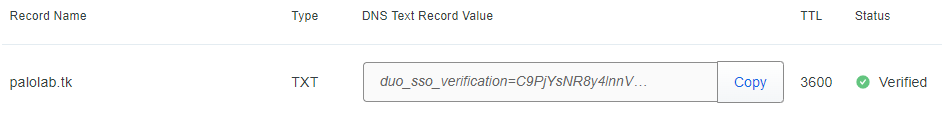

status should be verified
move to point 4. Test Active Directory Configuration and click Run tests, you should see message

4. Create the Palo Alto GlobalProtect Application in Duo

in DUO portal go to Applications, click Protect an Application, select Palo Alto GlobalProtect with protection type 2FA with SSO hosted by Duo, click Protect
download IdP metadata by clicking Download XML
in Domain name type IP/FODN of you GP portal/gateway
select Show new Universal Prompt
leave default policy settings
enter name for your protected application
save

5. Configure DUO in Palo Alto firewall

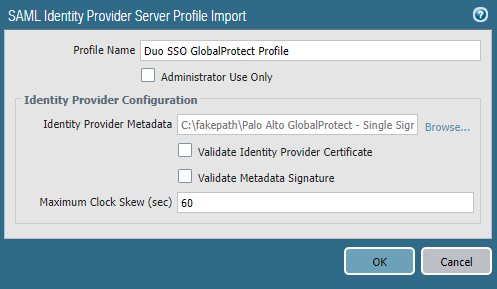

Device > Server profile > SAML IdP, click Import
enter profile name
click Browse and select IdP metadata xml file you downloaded in previous step
uncheck Validate Identity Provider Certificate
leave other options as default and click OK

6. Add Authentication Profile

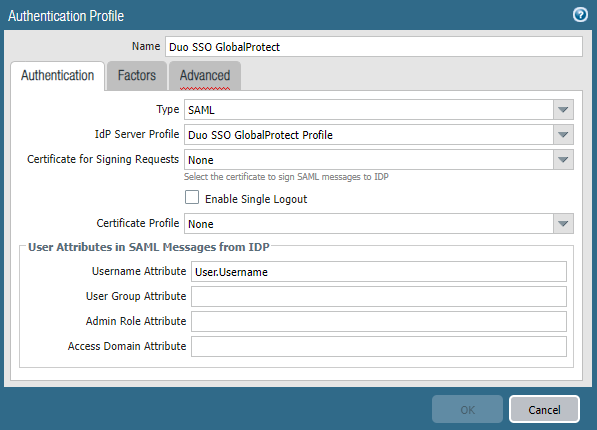

Device > Authentication profile, click Add
enter name, in Type choose SAML, choose newly created IdP Server Profile
Certificate for Signing Request - None
in Username Attribute field type User.Username
in Advanced tab select all in Allow List

7. Configure GlobalProtect portal with SSO

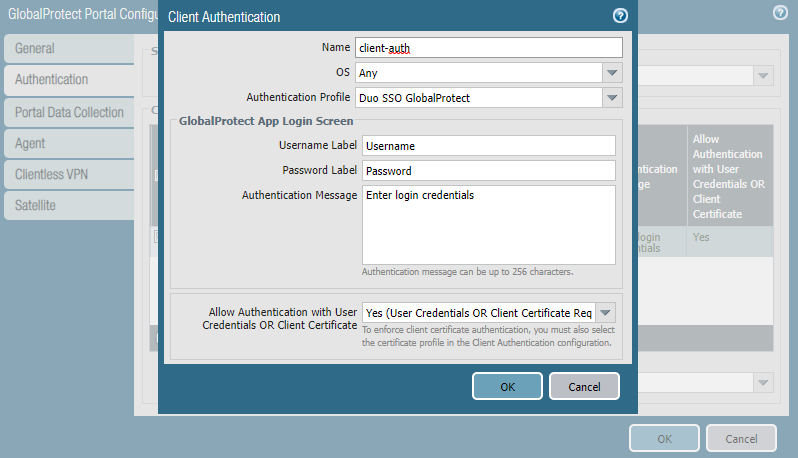

Network > GlobalProtect > Portals, select your portal, select Authentication tab
select your client authentication configuration you'd like to configure with SSO
in authentication profile select DUO profile you created earlier, click OK

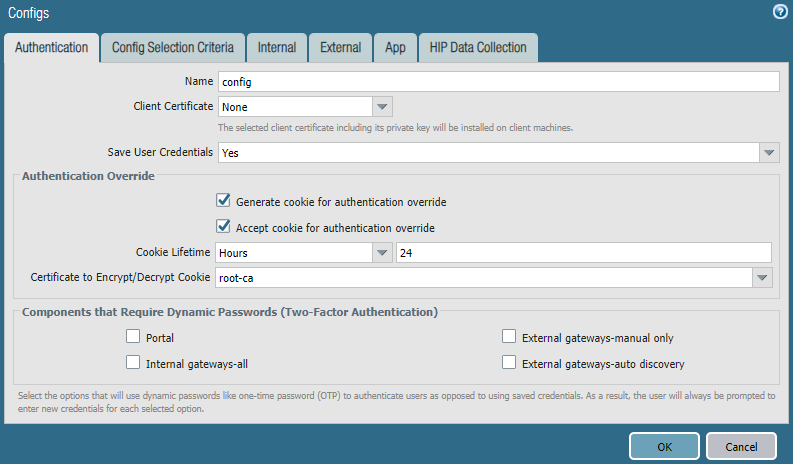

select Agent tab, choose your config, on the Authentication tab click the drop-down next to Save User Credentials and select Yes
select Generate cookie for authentication override and Accept cookie for authentication override
choose cookie lifetime and certificate to encrypt/decrypt cookie, click OK twice

8. Configure GlobalProtect gateway with SSO

Network > GlobalProtect > Gateways, select your gateway, select Authentication tab
select your client authentication configuration you'd like to configure with SSO
in authentication profile select DUO profile you created earlier, click OK
click on Agent tab > Client settings, select your client settings, click Authentication Override tab
select Generate cookie for authentication override and Accept cookie for authentication override
choose cookie lifetime and the same certificate to encrypt/decrypt cookie, click OK twice
commit changes

9. Add email attribute for users in your AD, email needs to be in domain which you verified in DUO, in my example palolab.tk

go to your AD in Windows Server
open Server Manager, click Tools > Active Directory Users and Computers
in new window click View and make sure Advanced features are selected
select user to edit, choose Properties
select Attribute Editor tab, locate mail attribute and edit it, it should be <username>@<domain>, for example for sAMAccountName user1 mail should be user1@palolab.tk, click OK
repeat it for all users who will be using GO with DUO

10. Add users in GP duo

in DUO portal go to Users, click Add User, enter username, full name and email address in the same format as in AD, for example user1@palolab.tk
set status to Active, save changes

11. Test your settings by connecting with GP, you will be enrolled to DUO after first login

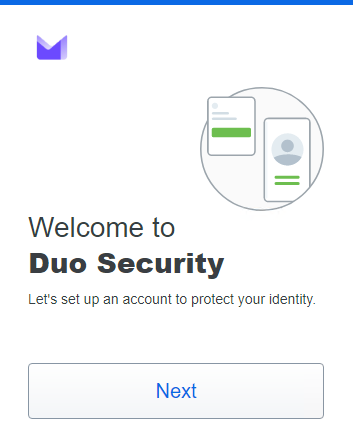

select your portal and click Connect, you will be redirected with following message

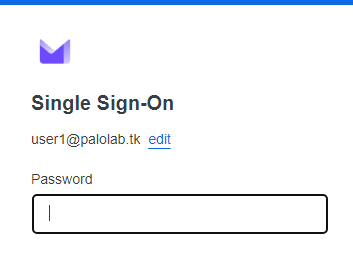

type your email and password

click Next

skip Duo Device Health
select Duo Mobile
enter your phone number, click Add, click Yes it's correct
click Send me a passcode, enter passcode from your mobile phone, click Verify
open DUO Mobile app on mobile phone (download it from store if you didn't do it earlier)

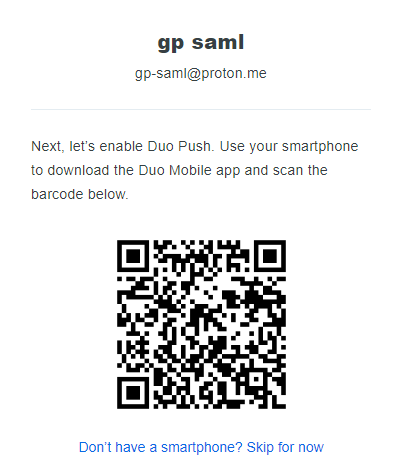

tap Add and use QR code, scan QR code on screen, enter account name

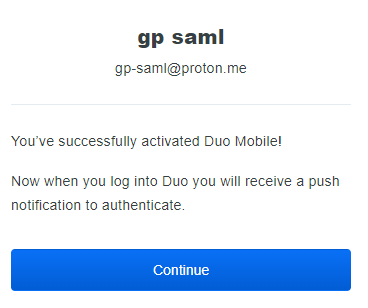

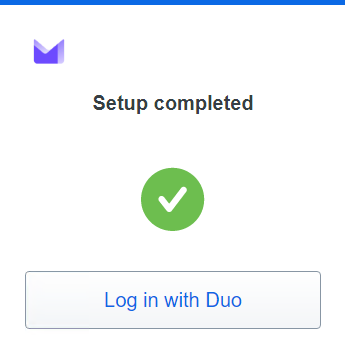

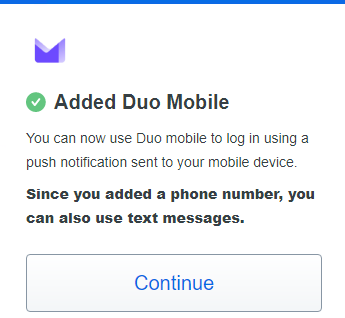

you should see following message

click Continue and Log in with Duo

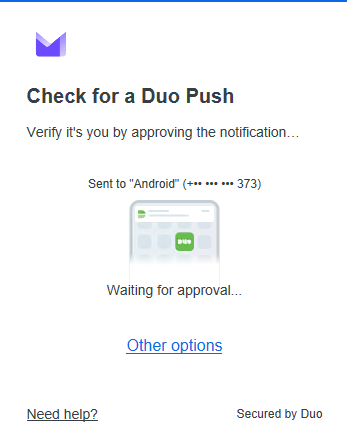

choose Duo Push when logging

accept in DUO mobile
