Newly deployed PA-VM on Azure went into maintenance mode caused by mgmtsrvr

Newly deployed PA-VM on Azure went into maintenance mode caused by mgmtsrvr

3757

Created On 04/22/22 08:54 AM - Last Modified 10/09/24 20:29 PM

Microsoft Azure

Public Cloud

VM-Series

Symptom

New deployment of VM-series firewall from Azure marketplace
Upon provisioning, the firewall keeps on rebooting and it ends into Maintenance Mode
Entry Reason: System start failed multiple times. Caused by service: mgmtsrvr

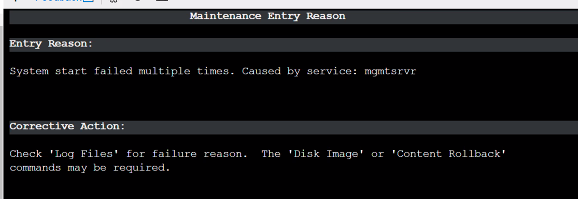

Maintenance Mode Entry Reason

Environment

VM-series firewall on Azure
Supported PAN-OS

Cause

The password given was too long, i.e. exceeding limit of 31 characters.
Errors related to password is displayed in logs
On the Maintenance Mode, go to Log Files, then select MP Pan Logs. Navigate to ms.log.
Observe message similar to "passwd and public key not found"

Error: pan_cfg_set_default_config(pan_cfg_bootstrap_mgr.c:3135): initcfg: username fwadmin passwd and public key not found in bootstrap cfg
Error: pan_cfg_mgr_construct)int(pan_cfg_mgr.c:33561): Unable to construct candidate config
Error: pan_mgmtsrvr_construct_new(server_thread.c:1030): MGMTSRV: failed to initialize cfg engine
Error: runserver(tcpserver.c:238): mgmtsvr: server constructor failed

Note: Azure webform does not limit password input length.

Resolution

Redeploy new VM-series firewall and provide password limiting to 31 characters or below.

Additional Information

Username and Password Requirements
