Error message "enforcer-exception-list is invalid" seen when trying to save GlobalProtect Portal configuration.
8901
Created On 04/12/22 22:30 PM - Last Modified 04/23/24 03:51 AM
Symptom

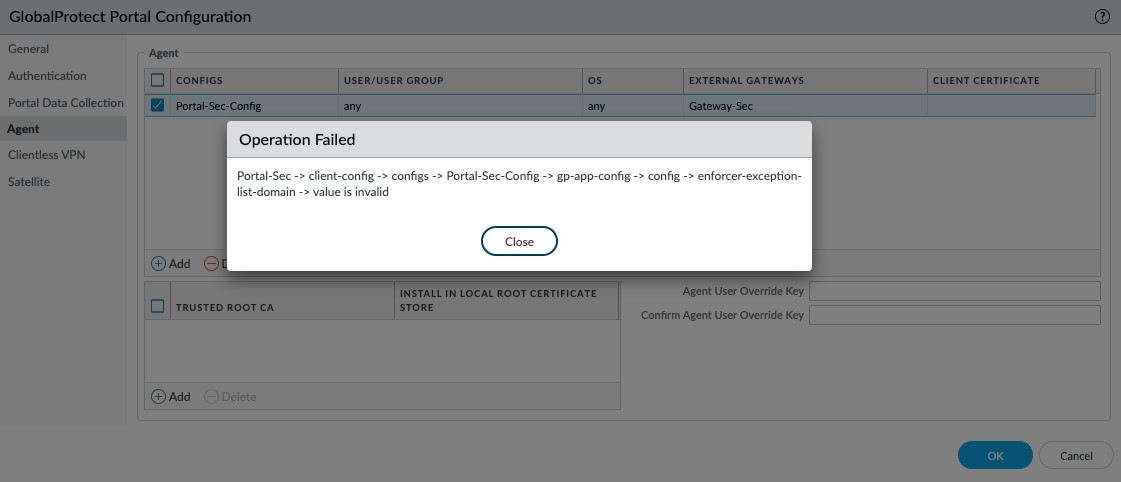

Below error is observed when OK button (Network > GlobalProtect > Portals > Agent) is clicked to save the Portal configuration:
Environment
- Palo Alto Firewalls
- PAN-OS 9.1 and above.
- GlobalProtect Portal
- Enforcer exception list.
- Prisma Access managed by panorama
Cause
- FQDN exception list was configured initially when GP enforcer was enabled.
- Since GP enforcer is not longer being used, it is disabled under Network > GlobalProtect > Portals > {portal-name} > Agent > {portal-agent-name} > App > Enforce GlobalProtect Connection for Network Access
- When trying to remove the FQDN exception list under Network > GlobalProtect > Portals > {portal-name} > Agent > {portal-agent-name} > App > Allow traffic to specified fqdn when Enforce GlobalProtect Connection for Network Access is enabled and GlobalProtect Connection is not established, we see the following error message
"Portal-Sec" -> client-config -> configs -> "Portal-Sec-Config" -> gp-app-config -> config -> enforcer-exception-list-domain -> value is invalidResolution
Remove the FQDN Enforcer exception list configuration from CLI.
admin@Firewall> configure admin@Firewall# delete global-protect global-protect-portal <name> client-config configs <name> gp-app-config config enforcer-exception-list admin@Firewall# delete global-protect global-protect-portal <name> client-config configs <name> gp-app-config config enforcer-exception-list-domain admin@Firewall# commit admin@Firewall# exit
Use following commands to delete this config from Panorama (Applicable to both Prisma Access managed by panorama and Strata firewalls managed from the Panorama)
admin@Panorama# delete template <template-name> config vsys vsys1 global-protect global-protect-portal <Portal-name> client-config configs <config-name> gp-app-config config enforcer-exception-list
[edit]
admin@Panorama# delete template <template-name> config vsys vsys1 global-protect global-protect-portal <Portal-name> client-config configs <config-name> gp-app-config config enforcer-exception-list-domain
[edit]
admin@Panorama# commit
Additional Information
Use following commands to confirm the previous values of enforce list are there in the config.
admin@Panorama# show template <tamplate name> config vsys vsys1 global-protect global-protect-portal <portal-name> client-config configs <config-name> gp-app-config config enforcer-exception-list
enforcer-exception-list {
value 1.1.1.1;
}
[edit]
