「IP タイムスタンプ オプション」保護のコンフィグとテスト方法

• すべてのPAN-OSファイアウォール

$ ping -c 1 -T tsonly DESTINATION_IP

$ sudo sendip -p ipv4 -is SOURCE_IP -id DESTINATION_IP -iots 05:01:00:200 -p udp -us 53 -ud 53 -d "IP Option Timestamp test" -v DESTINATION_IP

$ ping -c 1 -T tsonly 8.8.8.8

または

$ sudo sendip -p ipv4 -is 192.168.80.2 -id 8.8.8.8 -iots 05:01:00:200 -p udp -us 53 -ud 53 -d "IP Option Timestamp test" -v 8.8.8.8
[sudo] password for user1:
Added 26 options
Initializing module ipv4
Initializing module udp
Finalizing module udp
Finalizing module ipv4
Final packet data:
47 00 00 3C   G..<
8A 2B 00 00   .+..
FF 11 C4 EA   ....
C0 A8 50 02   ..P.
08 08 08 08   ....
44 08 05 10   D...
00 00 00 C8   ....
00 35 00 35   .5.5
00 20 3E 3B   . >;
49 50 20 4F   IP O
70 74 69 6F   ptio
6E 20 54 69   n Ti
6D 65 73 74   mest
61 6D 70 20   amp
74 65 73 74   test
Sent 60 bytes to 8.8.8.8
Freeing module ipv4
Freeing module udp

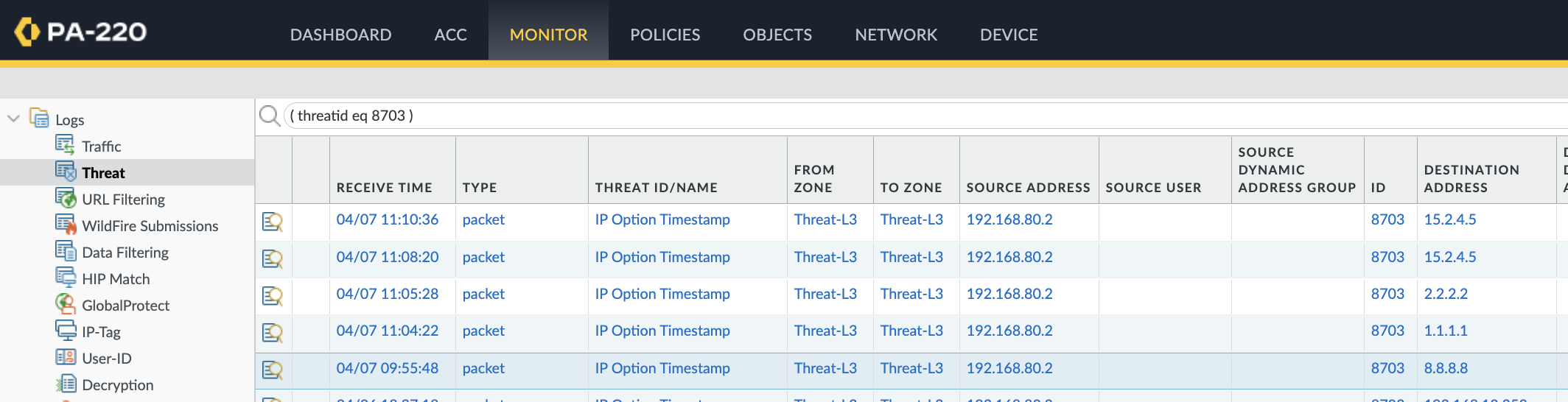

7. 表示フィルターを使用して脅威ログを確認します (脅威ID eq 8703)

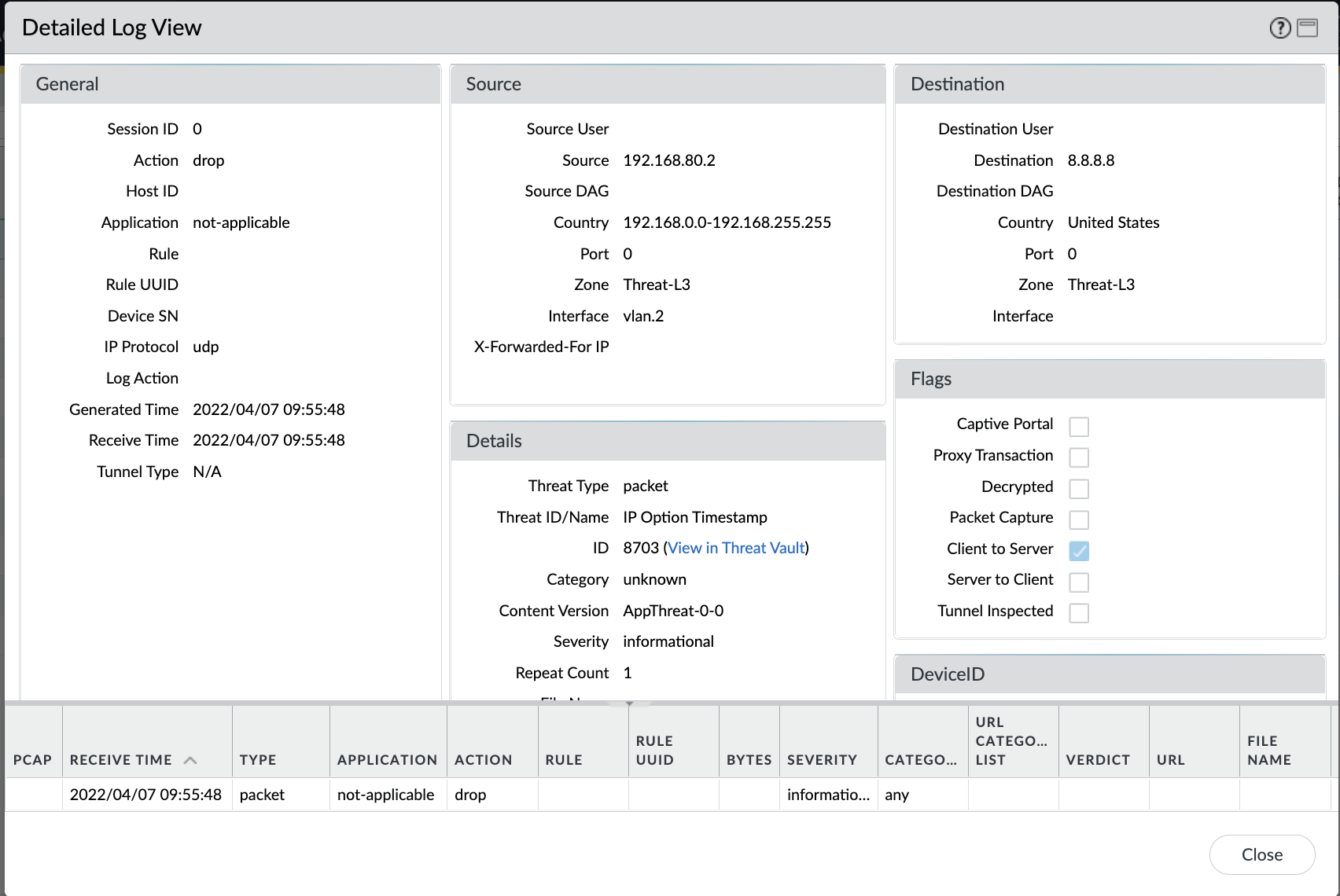

8. 詳細ログビューの表示

4.7.  Internet Timestamp (Type = 68)

4.7.1.  Uses

   This option provides a means for recording the time at which each
   system (or a specified set of systems) processed this datagram, and
   it may optionally record the addresses of the systems providing the
   timestamps.

4.7.2.  Option Specification

   Specified by RFC 791 [RFC0791].

4.7.3.  Threats

   The timestamp option has a number of security implications [RFC6274].
   Among them are:

   o  It allows an attacker to obtain the current time of the systems
      that process the packet, which the attacker may find useful in a
      number of scenarios.

   o  It may be used to map the network topology in a similar way to the
      IP Record Route option.

   o  It may be used to fingerprint the operating system in use by a
      system processing the datagram.

   o  It may be used to fingerprint physical devices by analyzing the
      clock skew.

   [Kohno2005] describes a technique for fingerprinting devices by
   measuring the clock skew.  It exploits, among other things, the
   timestamps that can be obtained by means of the ICMP timestamp
   request messages [RFC0791].  However, the same fingerprinting method
   could be implemented with the aid of the Internet Timestamp option.

4.7.4.  Operational and Interoperability Impact if Blocked

   Network troubleshooting techniques that may employ the Internet
   Timestamp option (such as ping with the Timestamp option) would break
   when using the Timestamp option.  (Ping without IPv4 options is not
   impacted.)  Nevertheless, it should be noted that it is virtually
   impossible to use such techniques due to widespread dropping of
   packets that contain Internet Timestamp options.

4.7.5.  Advice

   Routers, security gateways, and firewalls SHOULD drop IP packets
   containing an Internet Timestamp option.
