How to enable advanced routing

To Enable advanced routing on Palo Alto Firewalls.

• Palo Alto Firewalls
• PAN-OS version 10.0.x and above
• Advanced Routing
• Panorama

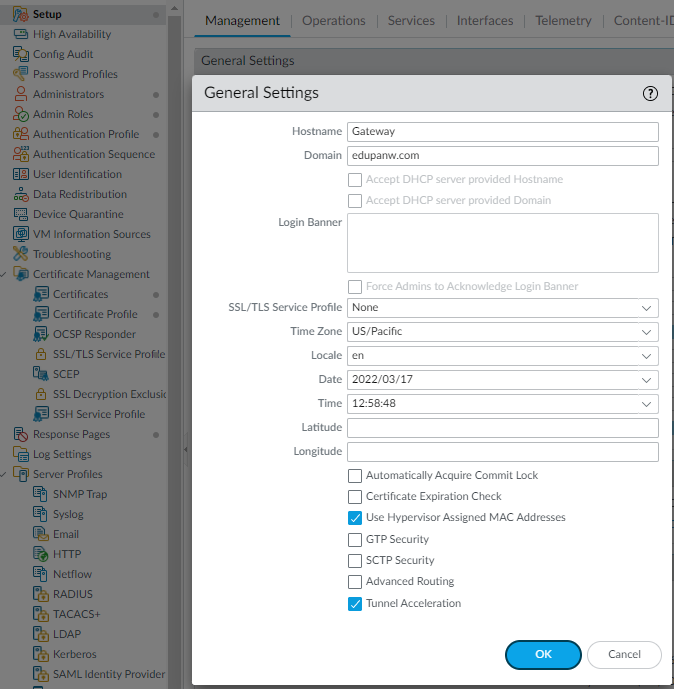

1. Before enabling advanced routing the GUI looks as below

2. To Enable advanced routing go to Device > Setup > Management > General Settings
3. Click on "Advanced Routing".
4. Commit the changes.
5. Reboot the firewall (A reboot is required after enabling advanced routing and commit)

6. After the reboot of firewall, the virtual routers are no longer seen instead it is replaced as "Logical Routers"

To enable the same on Panorama and push to device , follow the below steps:

• To Enable advanced routing go to Panorama > Devices > Select "Template Stack" ( select in which the devices are associated )> Setup > Management
• Click on Advanced routing
• Commit to the panorama and perform a push to firewalls.
• A reboot is required after enabling advanced routing

Note:

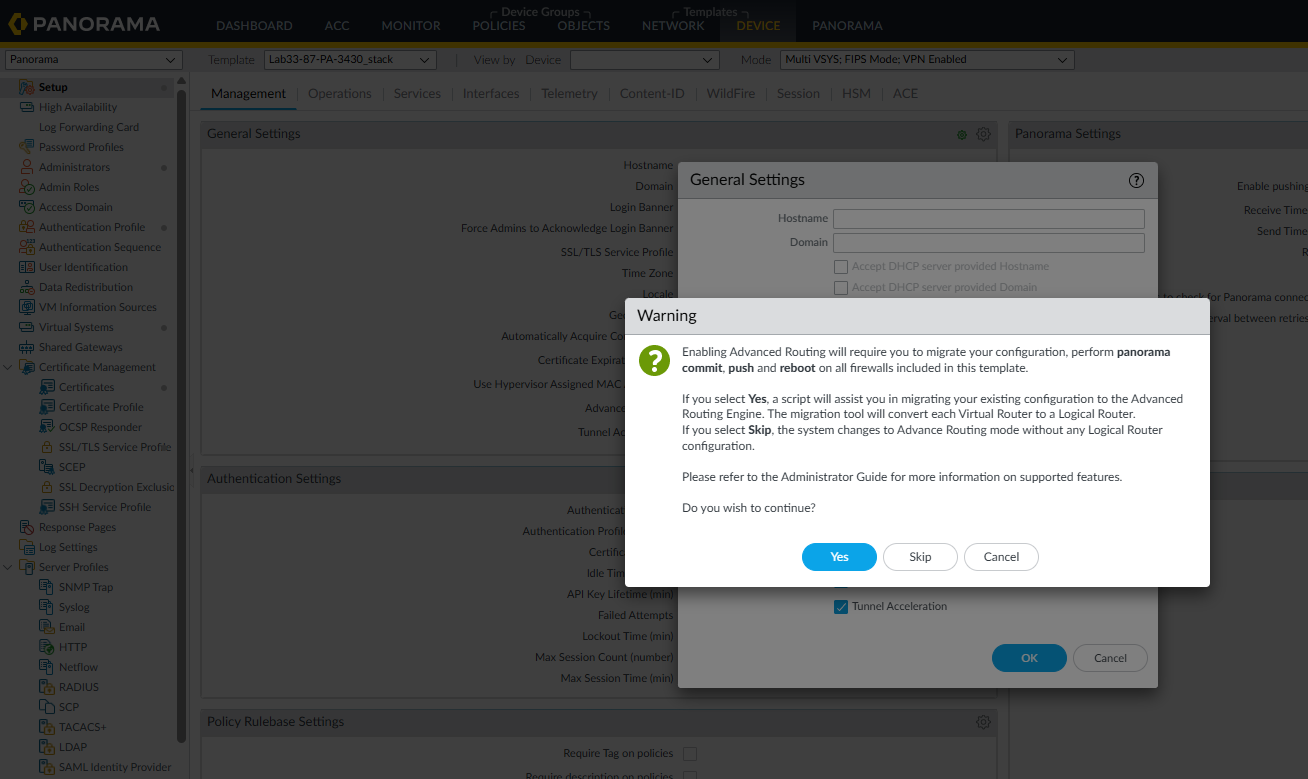

Enabling Advanced Routing will require you to migrate your configuration, perform panorama commit, push and reboot on all firewalls included in this template.

• PAN-OS 10.0 supports BGP and static routing for advanced routing
• PAN-OS 10.2 supports BGP, OSPFv3, OSPF v2, RIPv2 and static routing for advanced routing
• PAN Model support advanced routing
• PA-7000 Series firewalls
• PA-5200 Series firewalls
• PA-3200 Series firewalls
• VM-Series firewalls
