Objective


How to Collect Console and Defender Logs in Prisma Cloud Compute?

Environment


  • Prisma Cloud Compute
  • Defender Logs
  • Debug Logs
  • Console Logs


Procedure

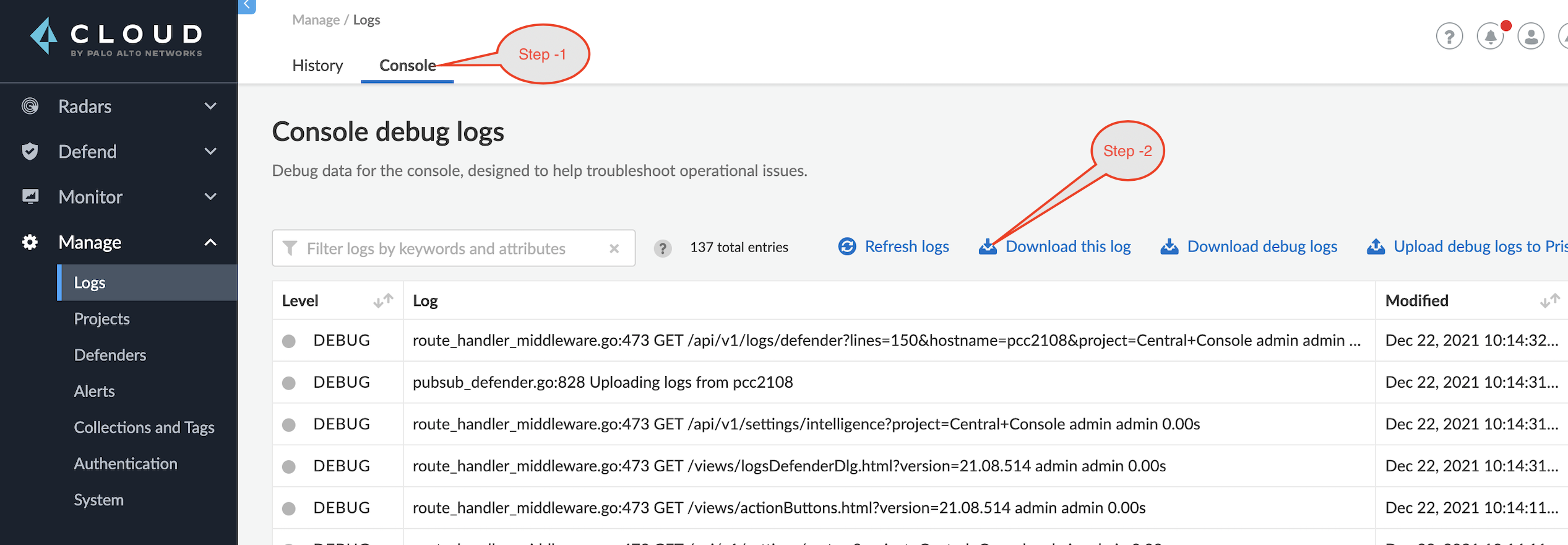

Debug Logs for Compute edition (Self-hosted):

  1. Login to your Compute Console.

  2. Go to Manage > Logs > Console
  3. Either automatically upload the logs to us with the "Upload Debug Logs To Prisma Cloud Support" button.   OR
    • Download the logs with the "Download Debug Logs" button and manually upload them to the case.

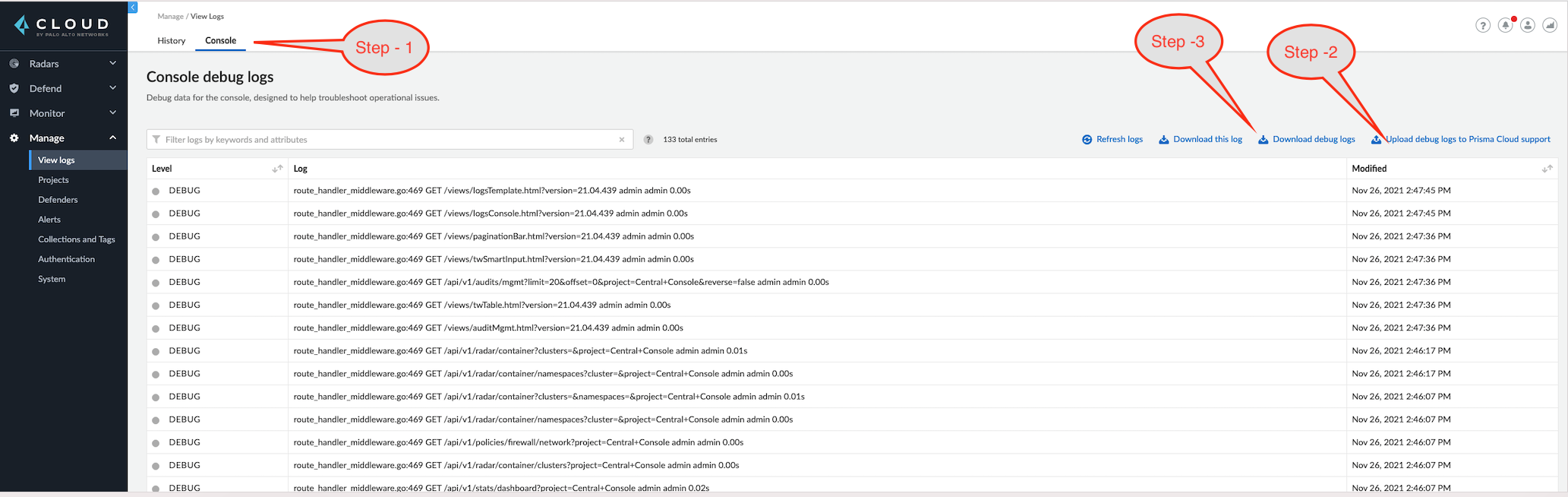

3  C L 0 u 0  Step -  Console debug logs  DEBUG  DEBUG  Step -2


Console Logs for Compute edition (Self-hosted):

  1. Login to your Compute Console.
  2. Go to Manage > Logs > Console > Download this logs
  3. Download this logs" button and manually upload them to the case.

Defender Logs for Compute edition (Self-hosted)

  1. Login to your Compute Console.
  2. Go to Manage > Defenders > Manage >
  3. Defenders and find the appropriate Defender in the list.
  4. Then open the Actions menu in the rightmost column.
  5. Click the "Logs" button.
  6. You can automatically upload the log to us with the "Upload Log To Prisma Cloud Support" button            OR
  7. Download the log with the "Download This Log" button and manually upload it to the case.

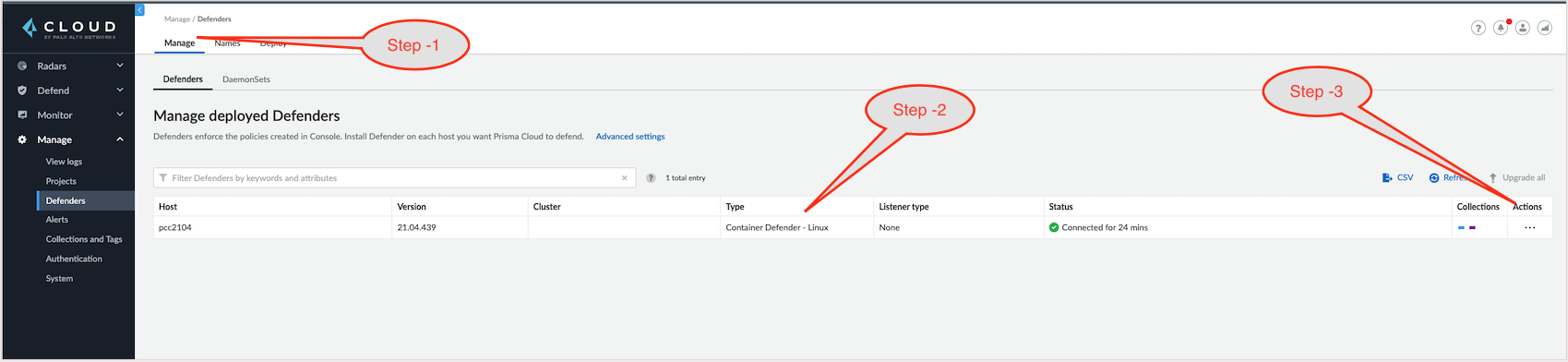

Manage d 豆 & Defenders

CLOUD  PALO ALTO NETWORKS  Radars  Defend  Monitor  Manage  View logs  Projects  Alerts  Collections and Tags  Authentication  s  Manage / Defenders  Manage Names  Deploy  Defenders  DaemonSets  Manage deployed Defenders  Defenders enforce the policies created in Console. Install Defender on each host you want Prisma Cloud to defend.  Advanced settings  Filter Defenders by keywords and attributes  X  Step -4  sh  1 total entry  Listener ty...  None  Upgrade all  Actions  Host  pcc2104  Version  21.04.4...  Cluster  Type  Container Defender - Linux  Decommission  Restart  Logs  Edit

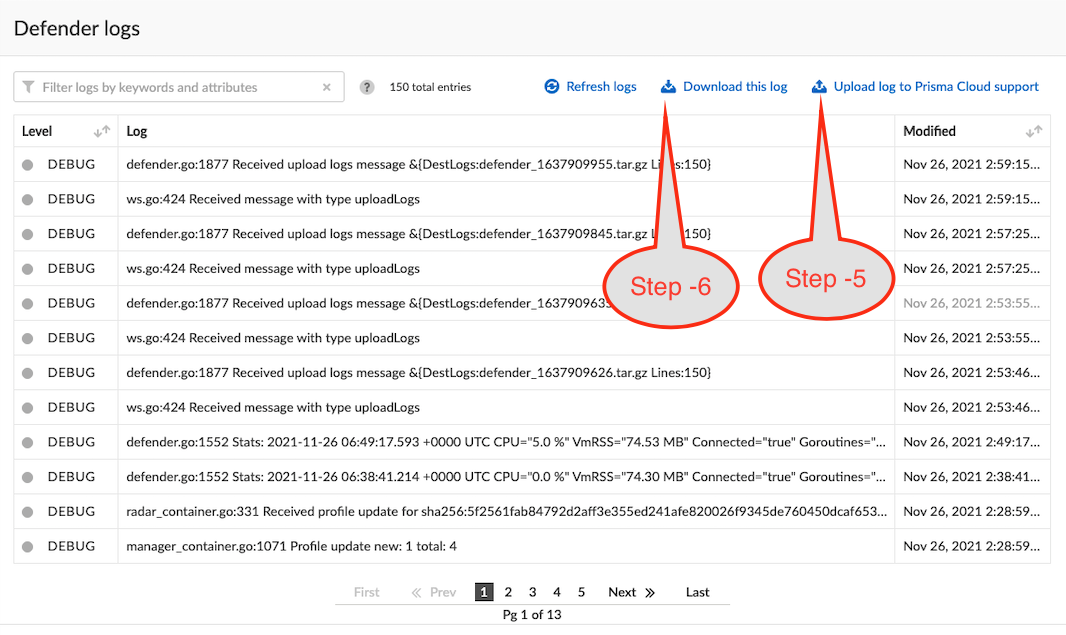

Defender logs  Log  150  Jogs  this  DEBUG  DEBUG  DEBUG  DEBUG  O Eau C  DEBUG  o Eau G  DEBUG  DEBUG  O EBUC  1877 1637909955.tM.v  424  424 —age type  1657909  424  step -6  Step -5  Received upload Logs message Lines: SO)  m_goA24  stats 2021-11-26  stats 2021-11-26 wam uTC cpu.•oo vmRss.•74.ao MB•  wof,le update  to Prim  2021  2021  26, 2021  26, 2021253:55_.  2021  26, 2021  2021  %ohle u*iate 1 4  23 4 s  Pg10f13  Next

Console Logs for Enterprise Edition (Compute SaaS):

  1. Login to your Compute Console.
  2. Go to Manage > View Logs > Console
  3. Download the logs with the "Download Debug Logs" button and manually upload them to the case.

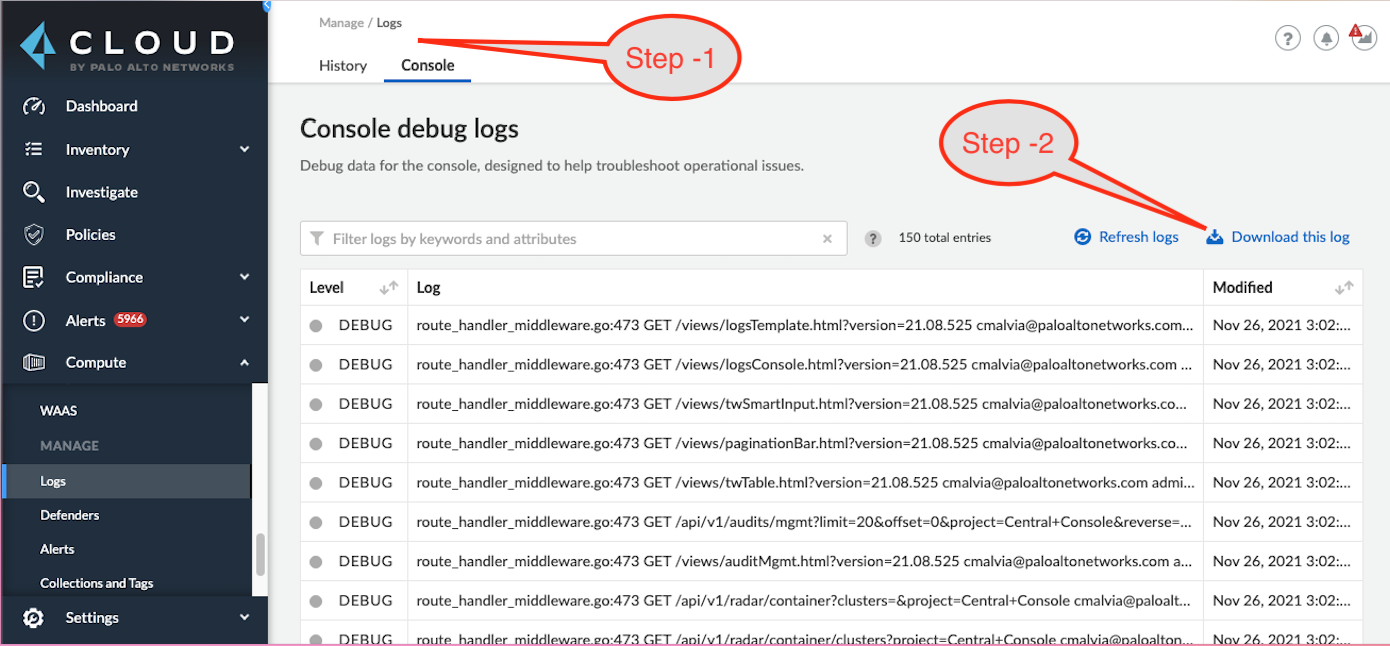

CLOUD  Investigate  ponci—  Alerts  Loss  History  Console debug logs  Debug data to  Filter logs b,' and  Log  DEBUG  DEBUG  DEB UG  DEB UG  DEBUG  DEBUG  DEB UG  DEB  Step -I  Step -2  Col  @ bogs  GET 'views 21.08.525 Itonetworks.com„,  GET 21 S 25 cmalvia@paloaltonetworks.Com „ .  GET 'views co. „  GET 21.08.525 .  GET 'views ion 2108.525 admi.  GET it z..  GET 'audit Mgmt. •2108.52 S a „  GET  Down I oad this Jog  Nov 26, 2021  26. 2021 3:02:...  Nov 26.2021 3:02:...  Nov 26, 2021 302:._.  2021 3:02:,..  New 26.2021 302...  2021 3:02:...  Nov 26, 2021


Defender Logs for Enterprise Edition (Compute SaaS):

  1. Login to your Compute Console.
  2. Go to Manage > Defenders > Manage > Defenders and find the appropriate Defender in the list.
  3. Then open the Actions menu in the rightmost column.
  4. Click the "Logs" button.
  5. Download the log with the "Download This Log" button and manually upload it to the case.

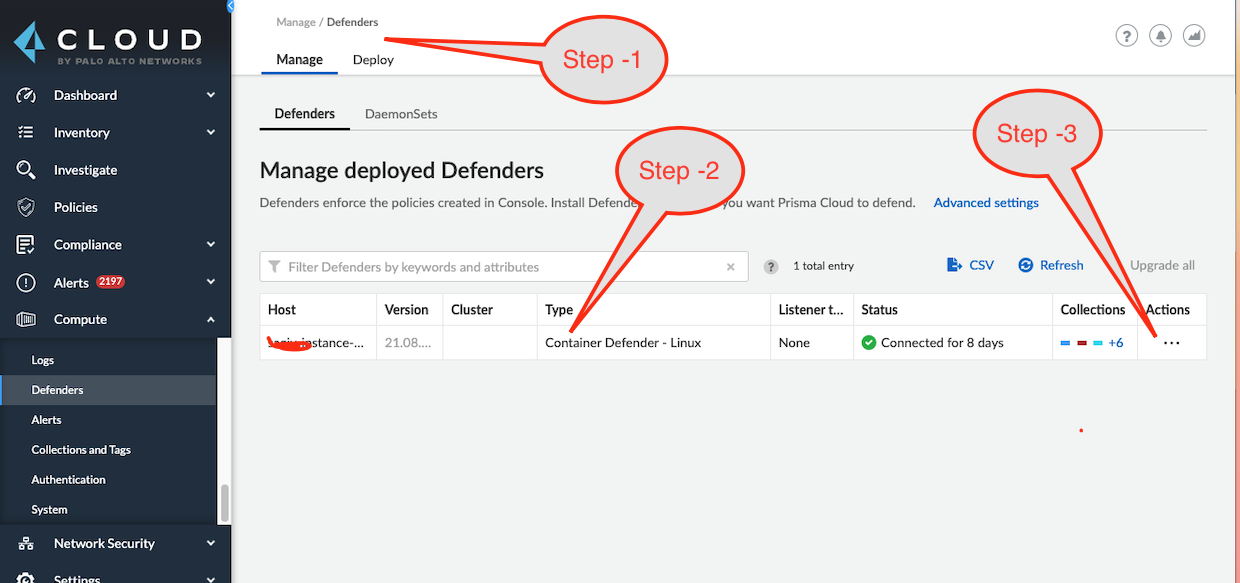

CLOUD  Netwk  Step -1  Manage deployed Defenders  Def„-,  T Filter  Step -2  Step -3  E• csv @  C.ted 8

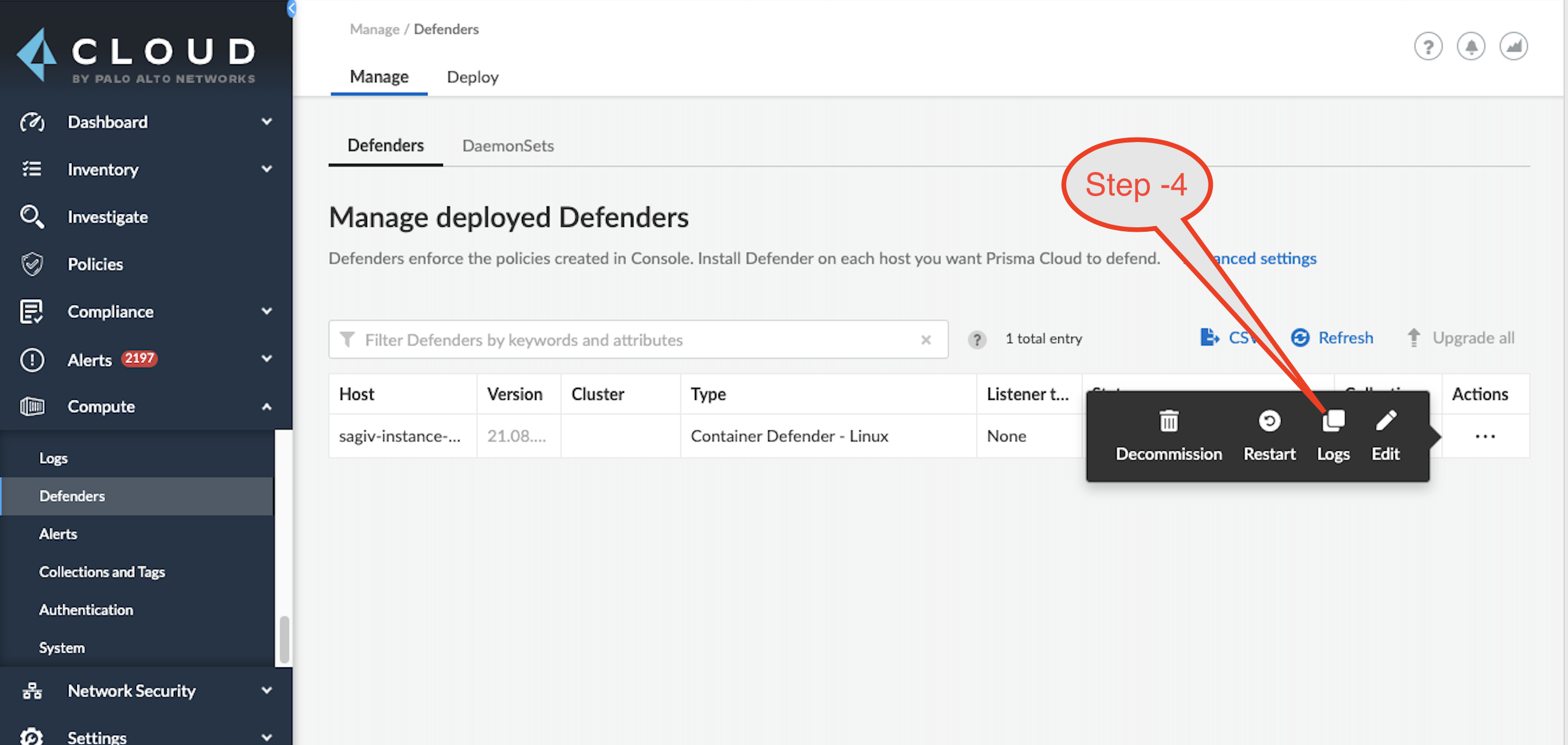

ø  CLOUD  BY PALO ALTO  NETWORKS  Dashboard  Inventory  Investigate  Policies  Compliance  Alerts  Compute  Collectiorw Tags  Network Security  Settin  Manage / Defenders  Manage Deploy  Defenders  DaemonSets  Step -4  Manage deployed Defenders  Defenders enforce the policies created in Console. Install Defender on each host you want Prisma Cloud to defend.  Filter Defenders by keywords and attributes  nced settings  @ Refresh  t Upgrade all  Actions  Type  Container Defender - Linux  1 total entry  Listener  None  E.  Host  sagiv-instance-...  Version Cluster  21.08....  Decommission  Restart  Logs  Edit

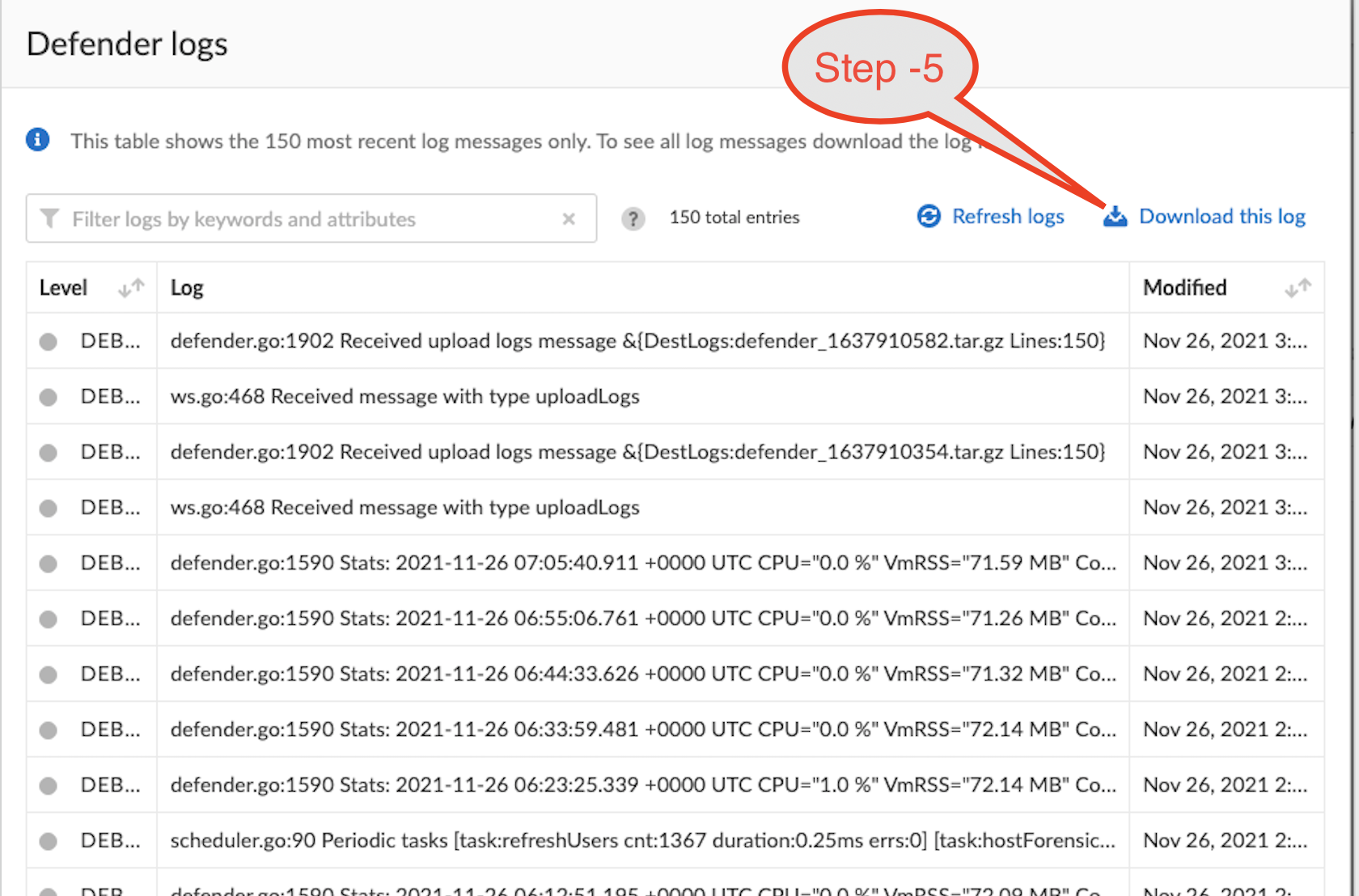

Defender logs  Step -5  O This table shows the 150 most recent log messages only. To See all log messages download the 10  Y Filter logs by keywords and attributes  150 total entries  DEB...  DEB...  DEB...  DEB...  DEB...  DEB...  DEB...  DEB...  DEB...  DEB...  defender.go:1902 Received upload logs message &(DestLogs:defender  ws.go:468 Received message with type uploadLogs  defender.go:1902 Received upload logs message  ws.go:468 Received message with type uploadLogs  @ Refresh logs  _1637910582.tar.gz Lines:150)  1637910354.tar.gz Lines:150)  defender.go:1590 stats: 2021-11-26 +0000 UTC 96" MB" co...  defender.go:1590 Stats: 2021-11-26 +0000 UTC 96" MB" co...  defender.go:1590 Stats: 2021-11-26 +0000 UTC CPU-"0.0 96" MB"  Co...  defender.go:1590 Stats: 2021-11-26 +0000 UTC CPU-"O.0 96" VmRSS-"72.14 MB" co.„  defender.go:1590 stats: 2021-11-26 +0000 UTC CPU-"I.0 96" MB" co.„  scheduler.go:90 Periodic tasks [task:refreshUsers cnt:1367 duration:O.25ms errs:O] (task:hostForensic...  con 4 OC 1  Download this log  Modified  Nov 26, 2021 3:...  Nov 26, 2021 3:...  Nov 26, 2021 3:...  Nov 26, 2021 3:...  Nov 26, 2021  Nov 26, 2021  Nov 26,  2021  Nov 26, 2021 2:...  Nov 26, 2021 2:...  Nov 26, 2021




Additional Information


Console and Defender Logs help identify the root cause of a problem, and provide a timely resolution. Here is the procedure to attach logs to case
  1. Navigate to :- https://support.paloaltonetworks.com/
  2. Click Open case.
  3. Attach your Console or  defender or debug logs archives.
