Firewall Vulnerability Assessment showing a Formula Injection/CSV Injection vulnerability is Invalid
Symptom
A firewall vulnerability assessment may contain a vulnerability identified by any of the following titles:
- Formula Injection
- CSV Injection
These vulnerabilities are not related to the firewall, but to the application that opens an exported CSV file from the firewall.
Here is a Google document explaining how this vulnerability can cause the program opening the CSV file to be exploited.
Environment
All versions of PanOS
Cause
Customers open support cases with the understanding that the firewall is permitting data calculations on exported CSV files.
Resolution
Exported CSV files from the firewall are sent as plain-text data while specific types of applications are interpreting the plain-text and using their own logic to calculate a value. This can be seen when using a “word processing” application versus using a “text editing” application to open CSV exported files from the firewall. Word processors are programs that provide for input, editing, formatting, and output of text, often with some additional features, I.E., automatic formula calculation. On the other hand, text editors are programs that edit simple text without any extra features.
In the following image, I have created an Address Object with the following values:
This Address object looks odd but the placement of these values in relation to a spreadsheet is what’s important. If a Word Processor application is used to open the CSV exported file, the “Description” box will convert the strings, (=A2+3), into a math statement. The “A2” characters will reference the string in the first box under the “Name” column. This is the string "1" on the spreadsheet. So the "Description" box will add, (1+3), which equals 4. The following output is from the MacOS “Numbers” application which is the default word processor application for spreadsheets on a device running MacOS.
MacOS: Numbers (Similar to Microsoft Excel)
Similar output can be seen on other word processor software for spreadsheets, like Microsoft Excel.
When an application that functions as a text editor opens the CSV exported file, they show the string characters as they are; performing no calculations.

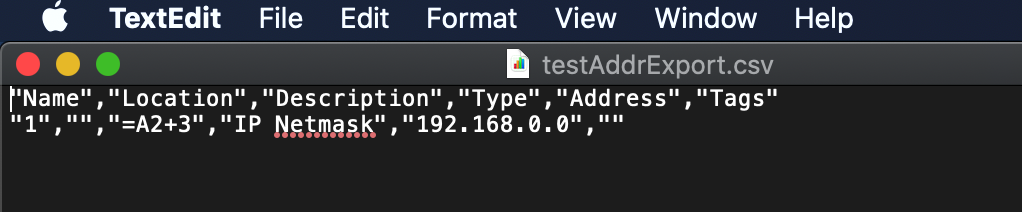

MacOS: TextEdit

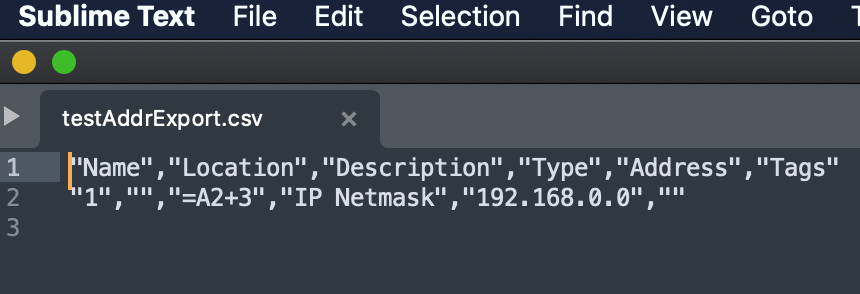

Sublime Text Editor
Opening the CSV exported file using a command-line text editor will also show the plain-text string characters without performing calculations.
Bash/nano
Bash/vim
