GP ゲートウェイ リストで [最も利用可能なもの] を選択すると接続しません。
18418
Created On 07/06/21 04:24 AM - Last Modified 05/17/23 03:28 AM
Symptom
-GPリストから外部ゲートウェイを選択すると、正常に接続されます。
- しかし、GP以下に示すように、ゲートウェイで「利用可能な最良」を選択しても接続しません。
PanGPS.log :
(T316)Debug(8316): 07/06/21 04:06:20:834 ----Portal Login starts---- ... (T316)Debug( 814): 07/06/21 04:06:21:006 REGION-PRIO, gateway 0(Gateway-1), 0, region = Any, priority = 0, portalRegion=192.168.0.0-192.168.255.255 (T316)Debug( 413): 07/06/21 04:06:21:006 REGION-PRIO, regioncode=192.168.0.0-192.168.255.255, return priority 0, bManual=1 (T316)Debug( 814): 07/06/21 04:06:21:006 REGION-PRIO, gateway 1(Gateway-2), 0, region = Any, priority = 0, portalRegion=192.168.0.0-192.168.255.255 (T316)Debug( 413): 07/06/21 04:06:21:006 REGION-PRIO, regioncode=192.168.0.0-192.168.255.255, return priority 0, bManual=1 (T316)Debug( 814): 07/06/21 04:06:21:006 REGION-PRIO, gateway 2(Gateway-3), 0, region = Any, priority = 0, portalRegion=192.168.0.0-192.168.255.255 (T316)Debug( 413): 07/06/21 04:06:21:006 REGION-PRIO, regioncode=192.168.0.0-192.168.255.255, return priority 0, bManual=1 (T316)Debug( 814): 07/06/21 04:06:21:006 REGION-PRIO, gateway 3(Gateway-4), 0, region = Any, priority = 0, portalRegion=192.168.0.0-192.168.255.255 (T316)Debug( 413): 07/06/21 04:06:21:006 REGION-PRIO, regioncode=192.168.0.0-192.168.255.255, return priority 0, bManual=1 (P116-T2276)Debug(6895): 07/06/21 04:52:16:731 --Set state to Discovering network... (P116-T8484)Debug(5321): 07/06/21 04:52:16:731 CaptivePortalDetectionThread: IsDetectingCaptivePortal=1, PreLoginIsDone=0 (P116-T8484)Debug(5298): 07/06/21 04:52:16:731 CaptivePortalDetectionThread: wait (2000 ms) for captive portal detection event. (P116-T2276)Debug(5647): 07/06/21 04:52:16:731 Logout gateways before network discover..., bJustResumed=0 (P116-T2276)Debug(1390): 07/06/21 04:52:16:731 Logging out gateway, reason is Network discover (P116-T2276)Debug(1429): 07/06/21 04:52:16:731 Logging out gateway over (P116-T2276)Debug( 330): 07/06/21 04:52:16:731 Parse gateway list for user gpuser (P116-T2276)Debug(12930): 07/06/21 04:52:16:731 RetrieveClientIpByRemoteHost() - invalid remote host: . (P116-T2276)Debug( 196): 07/06/21 04:52:16:731 SelectInternalGateways - failed to retrieve client source ipv6! (P116-T2276)Debug(5473): 07/06/21 04:52:16:731 Gateway 192.168.168.61(test): ipv4 192.168.168.61, ipv6 , FQDN no (P116-T2276)Debug( 350): 07/06/21 04:52:16:731 All external gateways are manual only <<<<<<<<<<<<< (P116-T2276)Debug(5670): 07/06/21 04:52:16:731 Set network discover in progress (P116-T2276)Debug(4215): 07/06/21 04:52:16:731 UpdatePrelogonStateForSSO() - tunnel state = Connecting (P116-T2276)Debug(5737): 07/06/21 04:52:16:731 NetworkDiscoverThread: network type is external. (P116-T2276)Debug(5810): 07/06/21 04:52:16:731 NetworkDiscoverThread: Discover external network. (P116-T2276)Debug(5835): 07/06/21 04:52:16:731 On-demand mode, all external gateways are manual only <<<<<<<<<<<<< (P116-T2276)Debug(6895): 07/06/21 04:52:16:731 --Set state to Disconnected (P116-T3340)Debug(2427): 07/06/21 04:52:16:731 Setting debug level to 5 (P116-T2276)Debug(5939): 07/06/21 04:52:16:747 NetworkDiscoverThread: PortalStatus is 1, HasLoggedOnGateway is 0 (P116-T2276)Debug(5962): 07/06/21 04:52:16:747 Network discovery is not ready, set GP VPN status as disconnected (P116-T2276)Debug(11228): 07/06/21 04:52:16:747 SetVpnStatus called with new status=0, Previous Status=0 (P116-T2276)Debug(4215): 07/06/21 04:52:16:747 UpdatePrelogonStateForSSO() - tunnel state = Disconnected (P116-T2276)Debug(5976): 07/06/21 04:52:16:747 All external gateways are manual only. <<<<<<<<<<<<< (P116-T2276)Debug(6895): 07/06/21 04:52:16:747 --Set state to Discovery complete
Environment
通常、この問題はすべての環境で発生します。PAN OSとGPクライアントのバージョン。
Cause

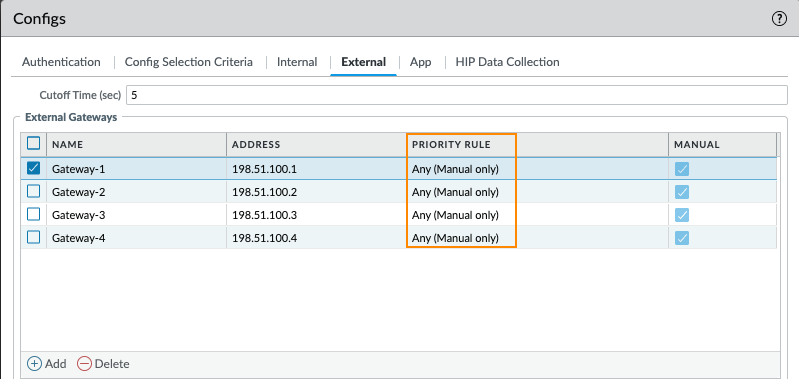

これは、以下に示すように、すべての外部ゲートウェイの優先順位が「手動のみ」に設定されている場合に発生します。
Resolution
優先順位が最高/高/中/低/最低の外部ゲートウェイを少なくとも 1 つ設定します。
