GP does not connect when select "Best Available" under Gateway list.

GP does not connect when select "Best Available" under Gateway list.

18412
Created On 07/06/21 04:24 AM - Last Modified 07/09/21 04:45 AM


Symptom


- GP connects successfully when select an External Gateway from the list.
- However, GP does not connect upon selecting "Best Available" under Gateway as shown below.

       Best AvailableGP not connecting to Best Available


PanGPS.log:
(T316)Debug(8316): 07/06/21 04:06:20:834 ----Portal Login starts----
...

(T316)Debug( 814): 07/06/21 04:06:21:006 REGION-PRIO, gateway 0(Gateway-1), 0, region = Any, priority = 0, portalRegion=192.168.0.0-192.168.255.255
(T316)Debug( 413): 07/06/21 04:06:21:006 REGION-PRIO, regioncode=192.168.0.0-192.168.255.255, return priority 0, bManual=1
(T316)Debug( 814): 07/06/21 04:06:21:006 REGION-PRIO, gateway 1(Gateway-2), 0, region = Any, priority = 0, portalRegion=192.168.0.0-192.168.255.255
(T316)Debug( 413): 07/06/21 04:06:21:006 REGION-PRIO, regioncode=192.168.0.0-192.168.255.255, return priority 0, bManual=1
(T316)Debug( 814): 07/06/21 04:06:21:006 REGION-PRIO, gateway 2(Gateway-3), 0, region = Any, priority = 0, portalRegion=192.168.0.0-192.168.255.255
(T316)Debug( 413): 07/06/21 04:06:21:006 REGION-PRIO, regioncode=192.168.0.0-192.168.255.255, return priority 0, bManual=1
(T316)Debug( 814): 07/06/21 04:06:21:006 REGION-PRIO, gateway 3(Gateway-4), 0, region = Any, priority = 0, portalRegion=192.168.0.0-192.168.255.255
(T316)Debug( 413): 07/06/21 04:06:21:006 REGION-PRIO, regioncode=192.168.0.0-192.168.255.255, return priority 0, bManual=1


(P116-T2276)Debug(6895): 07/06/21 04:52:16:731 --Set state to Discovering network...
(P116-T8484)Debug(5321): 07/06/21 04:52:16:731 CaptivePortalDetectionThread: IsDetectingCaptivePortal=1, PreLoginIsDone=0
(P116-T8484)Debug(5298): 07/06/21 04:52:16:731 CaptivePortalDetectionThread: wait (2000 ms) for captive portal detection event.
(P116-T2276)Debug(5647): 07/06/21 04:52:16:731 Logout gateways before network discover..., bJustResumed=0
(P116-T2276)Debug(1390): 07/06/21 04:52:16:731 Logging out gateway, reason is Network discover
(P116-T2276)Debug(1429): 07/06/21 04:52:16:731 Logging out gateway over
(P116-T2276)Debug( 330): 07/06/21 04:52:16:731 Parse gateway list for user gpuser
(P116-T2276)Debug(12930): 07/06/21 04:52:16:731 RetrieveClientIpByRemoteHost() - invalid remote host: .
(P116-T2276)Debug( 196): 07/06/21 04:52:16:731 SelectInternalGateways - failed to retrieve client source ipv6!
(P116-T2276)Debug(5473): 07/06/21 04:52:16:731 Gateway 192.168.168.61(test): ipv4 192.168.168.61, ipv6 , FQDN no
(P116-T2276)Debug( 350): 07/06/21 04:52:16:731 All external gateways are manual only                        <<<<<<<<<<<<<
(P116-T2276)Debug(5670): 07/06/21 04:52:16:731 Set network discover in progress
(P116-T2276)Debug(4215): 07/06/21 04:52:16:731 UpdatePrelogonStateForSSO() - tunnel state = Connecting
(P116-T2276)Debug(5737): 07/06/21 04:52:16:731 NetworkDiscoverThread: network type is external.
(P116-T2276)Debug(5810): 07/06/21 04:52:16:731 NetworkDiscoverThread: Discover external network.
(P116-T2276)Debug(5835): 07/06/21 04:52:16:731 On-demand mode, all external gateways are manual only        <<<<<<<<<<<<<
(P116-T2276)Debug(6895): 07/06/21 04:52:16:731 --Set state to Disconnected
(P116-T3340)Debug(2427): 07/06/21 04:52:16:731 Setting debug level to 5
(P116-T2276)Debug(5939): 07/06/21 04:52:16:747 NetworkDiscoverThread: PortalStatus is 1, HasLoggedOnGateway is 0
(P116-T2276)Debug(5962): 07/06/21 04:52:16:747 Network discovery is not ready, set GP VPN status as disconnected
(P116-T2276)Debug(11228): 07/06/21 04:52:16:747 SetVpnStatus called with new status=0, Previous Status=0
(P116-T2276)Debug(4215): 07/06/21 04:52:16:747 UpdatePrelogonStateForSSO() - tunnel state = Disconnected
(P116-T2276)Debug(5976): 07/06/21 04:52:16:747 All external gateways are manual only.                        <<<<<<<<<<<<<
(P116-T2276)Debug(6895): 07/06/21 04:52:16:747 --Set state to Discovery complete




Environment


Typically this issue will be observed in all PAN OS and GP Client Version.

Cause

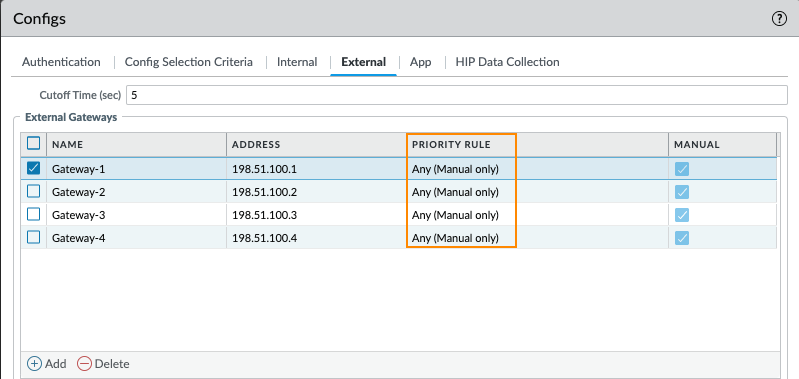

This happens when all the External Gateways are configured with Priority as "Manual Only" as shown below:
External Gateways list


Resolution


Configure at least 1 External Gateway with Priority Highest/High/Medium/Low/Lowest.
