Firewall change the packet order of FIN and RESET while transmitting these packets from egress interface
514
Created On 06/08/23 09:00 AM - Last Modified 09/03/25 03:18 AM
Symptom
- Unexpected packet reordering on (FIN, ACK) and (RST, ACK) packets between “receive” and “transmit” packet capture stages

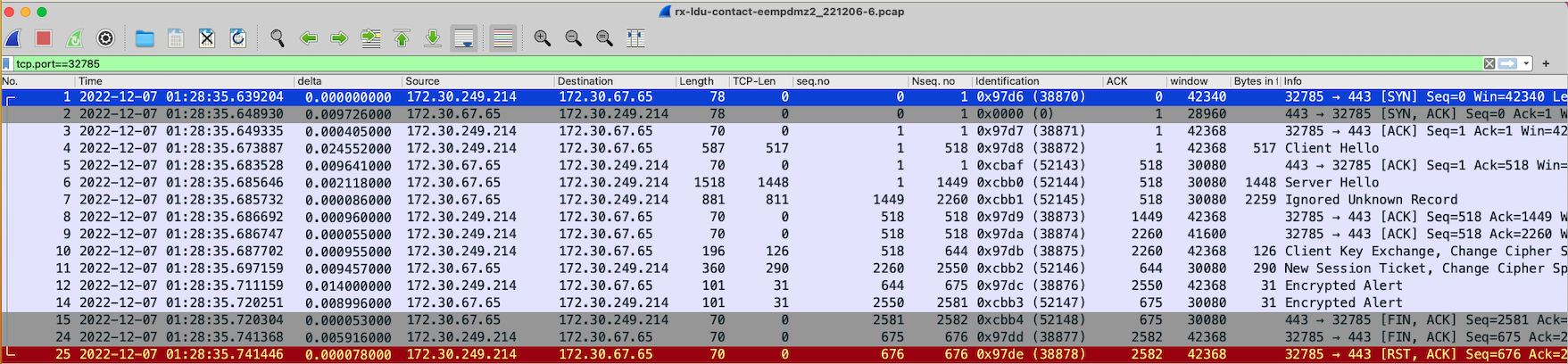

- Checking the PCAP for the receive and transmit. the firewall receiving the packet as FIN, ACK and then RESET packet from the source

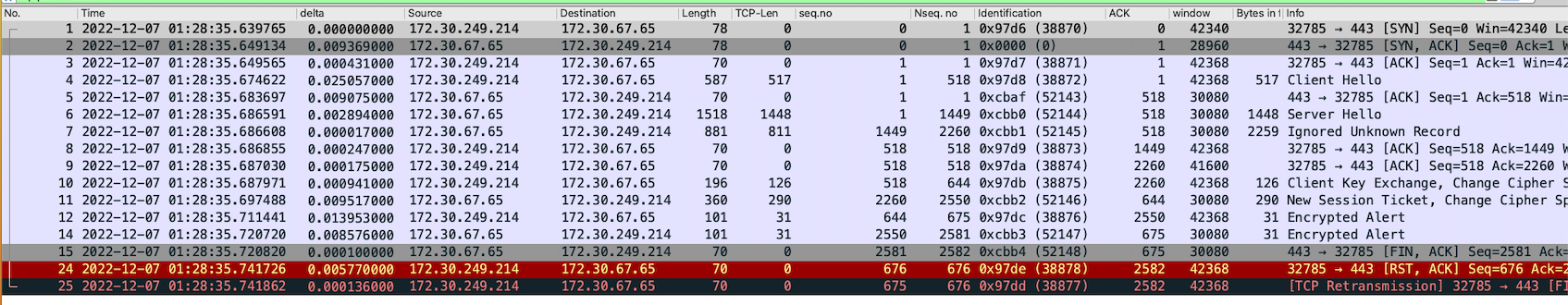

- But when the firewall is transmitting the packets, the order get changed.
Environment
- All PAN-OS
- All Platform
Cause
- Palo Alto Firewall keeps the FIN packet in Queue.
- This is done so that the FIN packet can be sent after all the data packets has been sent.
- The above procedure does not work a RESET packet is received.
- Consequently, FIN and RST packets could arrive in the order of FIN and RST and they could be transmitted in the order of RST and FIN.
Resolution
- The issue is resolved under PAN-214669
- Upgrade of PAN-OS to either 11.0.3, 10.2.5, 10.1.11 or 9.1.17 will fix the issue.
Additional Information
Getting Started: Packet Capture
