How to configure persistent NAT for DIPP

• Palo Alto Firewalls
• PAN-OS 10.1.6 and greater for VM Product line
• PAN-OS 10.1.7 and greater - All other Firewalls
• Persistent NAT

1. To enable Persistent NAT for DIPP

> set system setting persistent-dipp enable yes

2.  To disable Persistent NAT for DIPP:

> set system setting persistent-dipp enable no

3. Once enabled or disabled, system restart is required

> request restart system

4. To verify the persistent NAT setting

> show system setting persistent-dipp
Persistent DIPP : Enabled

> show system state | match persistent-dipp
cfg.nat.persistent-dipp: 1        (0 = Disabled; 1 = Enabled)

Note:

• The information is documented in the PAN-OS New Features Guide.
• If HA is configured, repeat this procedure on the other HA peer.

• There are different types of source NAT one such is Dynamic IP and Port (DIPP).
• Applications such as VoIP, video and other utilizing DIPP can require STUN protocol and while DIPP NAT uses symmetric NAT mechanism. This poses compatibility issues with STUN itself.
• When persistent NAT for DIPP is enabled, the binding of a private source IP address/port pair to a specific public (translated) source IP address/port pair persists for subsequent sessions that come in with the same original source IP address/port pair.

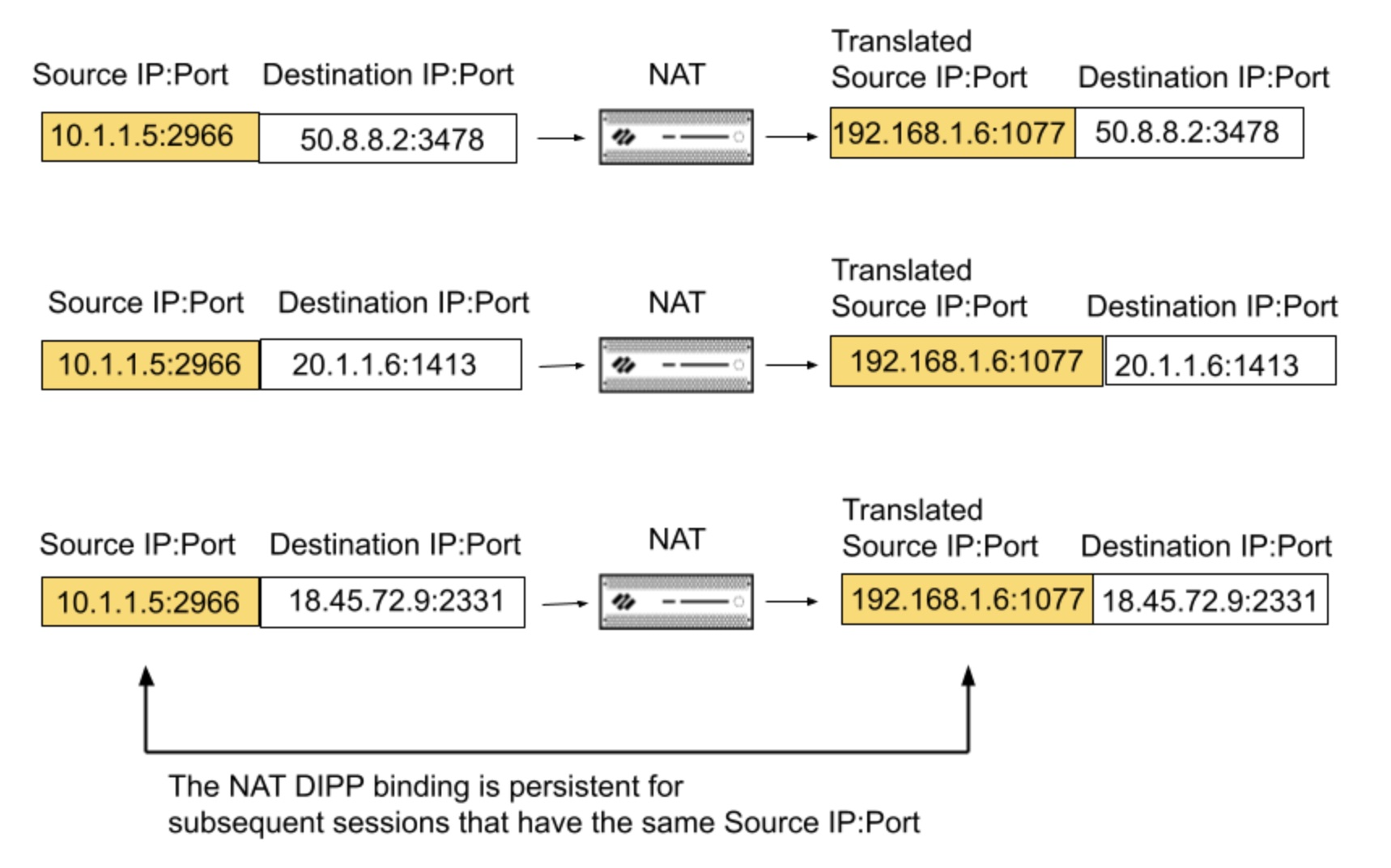

• The following example shows three sessions:

• In this example, original source IP address/port 10.1.1.5:2966 is bound to the translated source IP address/port 192.168.1.6:1077 in Session 1.
• The same binding is persistent in Session 2 and Session 3, which have the same original source IP address/port as Session 1, but different destination addresses.
• The persistence of the binding ends after all of the sessions for that source IP address/port pair have ended.
• In Session 1 of the example, the Destination port is 3478, the default STUN port.
• When persistent NAT for DIPP is enabled, it applies to all NAT and NAT64 rules subsequently configured; it is a global setting. Management plane or dataplane logs will indicate NAT DIPP/STUN support has been enabled
• Once enable/disabled it's configuration present during any unexpected reboot or upgrade/downgrade event of a FW
