Unable to revert the changes in Panorama due to error: "master-device is missing" and "invalid"

Unable to revert the changes in Panorama due to error: "master-device is missing" and "invalid"

14072
Created On 03/25/23 15:02 PM - Last Modified 04/13/23 19:13 PM


Symptom


  • When trying to revert the changes on Panorama, unable to revert due to an error:
    Schema verification failed. Configuration will not be reverted.

template-stack -> template_2-stack -> user-group-source -> master-device is missing 'device'
template-stack -> template_2-stack -> user-group-source -> master-device is invalid

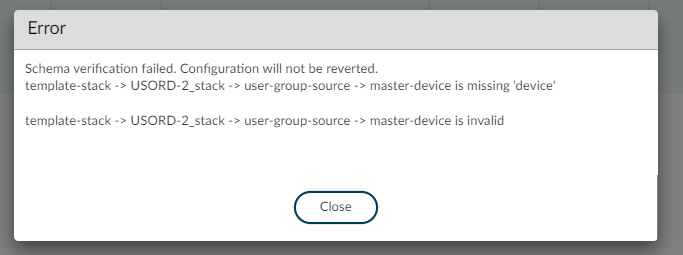

    Error Screenshot

Environment


Panorama

Resolution


  1. Follow the error and go to that Particular Template Stack.
  2. Go to the template stack and click on Default VSYS

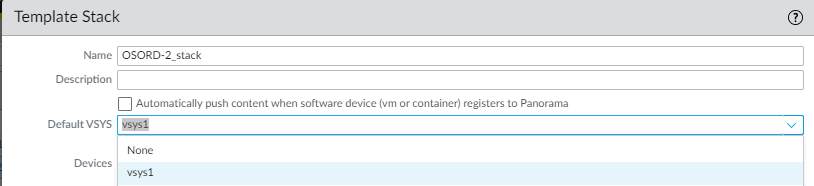

  3. Choose the default VSYS "vsys 1" in this scenario and click ok.
Error
  1. Now before performing a local commit on the Panorama, Preview the changes as Default vsys1 will be getting added.
Screenshot 2023-03-25 202843.png
  1. Perform a local commit on the Panorama and after that the changes can be reverted successfully without this error.

Additional Information


What is a Master Device in Device Groups?
