Unable to generate SCEP certificate, Certificate CA Retrieval Failed

• SCEP certificate generation fails with error message "Unable to generate SCEP certificate, Certificate CA Retrieval Failed".
• debug-level sslmgr logs report "/usr/bin/sscep: wrong (or missing) MIME content type".

• Palo Alto Networks Firewall and Panorama
• Supported PAN-OS
• Certificate management
• SCEP
• Windows Server

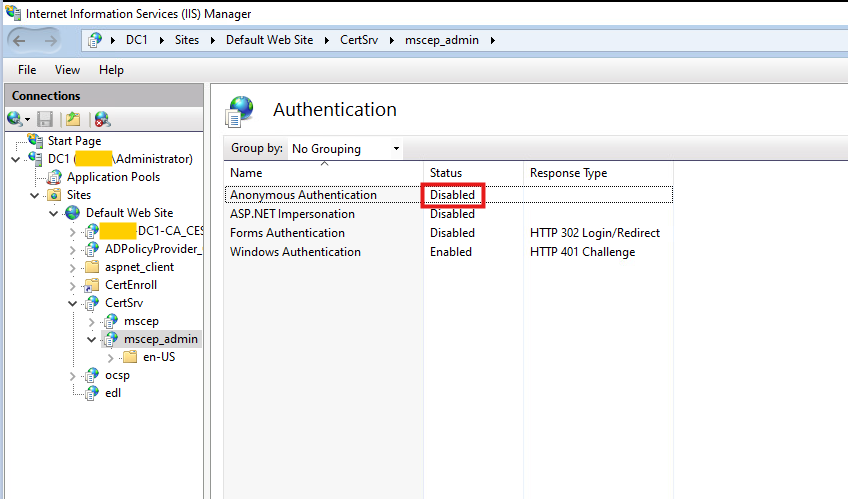

• Issue is due to the Anonymous Authentication being disabled on IIS Manager.

• Below is the flow when sslmgr is on debug level

  >tail follow yes mp-log sslmgr.log
  2023-02-08 10:13:59.404 -0600 debug: cfgagent_opcmd_callback(pan_cfgagent.c:496): sslmgr: cfg agent received op command from server
  2023-02-08 10:13:59.404 -0600 debug: cfgagent_doop_callback(pan_cfgagent.c:531): received signal to execute for agent: sslmgr
  2023-02-08 10:13:59.413 -0600 debug: pan_scep_get_client_cert(pan_scep.c:401): Trying to create temporary directory /opt/pancfg/certificates/tmpXXXXXX
  debug: pan_scep_get_challenge(pan_scep.c:163): Sending http get to scep server http://172.16.3.254/CertSrv/mscep_admin/mscep.dll
  debug: pan_http_curl_get(pan_http_client.c:551): custom_header [Accept-Language: en-US]
  debug: pan_http_curl_get(pan_http_client.c:556): add last header: [Accept-Language: en-US]
  debug: pan_http_curl_get(pan_http_client.c:600): setting headers...
  debug: pan_scep_get_challenge(pan_scep.c:211): Parsed Challenge 511BBA03219A96E1
  debug: pan_scep_is_safe_string(pan_scep.c:44): pan_scep_is_safe_string : is_subject is 0, str is 007051000210668
  debug: pan_scep_is_safe_string(pan_scep.c:44): pan_scep_is_safe_string : is_subject is 0, str is 1781276205
  debug: pan_scep_is_safe_string(pan_scep.c:44): pan_scep_is_safe_string : is_subject is 0, str is RSA
  debug: pan_scep_is_safe_string(pan_scep.c:44): pan_scep_is_safe_string : is_subject is 0, str is sha256
  debug: pan_scep_is_safe_string(pan_scep.c:44): pan_scep_is_safe_string : is_subject is 0, str is 511BBA03219A96E1
  debug: pan_scep_is_safe_string(pan_scep.c:44): pan_scep_is_safe_string : is_subject is 0, str is http://172.16.3.254/CertSrv/mscep_admin/mscep.dll
  debug: pan_scep_is_safe_string(pan_scep.c:44): pan_scep_is_safe_string : is_subject is 0, str is E9026EAFA0212C7020E62085752EC8C7
  debug: pan_scep_is_safe_string(pan_scep.c:44): pan_scep_is_safe_string : is_subject is 1, str is CN=$USERNAME
  debug: pan_scep_is_safe_string(pan_scep.c:58): Token $USERNAME exists in subject and the position is 3
  debug: pan_scep_is_safe_string(pan_scep.c:44): pan_scep_is_safe_string : is_subject is 0, str is DC1-MSCEP-RA
  debug: pan_scep_get_client_cert(pan_scep.c:471): Generating CSR from script.../usr/local/bin/pangenscepcert.sh -s
  "007051000210668".......(output omitted)
  .....................................................................................................................
  writing new private key to '/opt/pancfg/certificates/tmpT2xMwB/dev.key'
  -----
  /usr/bin/sscep: wrong (or missing) MIME content type
  /usr/bin/sscep: error while sending message
  Error:  pan_scep_get_client_cert(pan_scep.c:473): cmd (/usr/local/bin/pangenscepcert.sh -s "007051000210668" .....
  Error:  sslmgr_scep_generate_client_cert(sslmgr_scep.c:521): pan_scep_get_client_cert() failed
  Error:  cfgagent_doop_callback(pan_cfgagent.c:581): Failed to handle op command for agent:

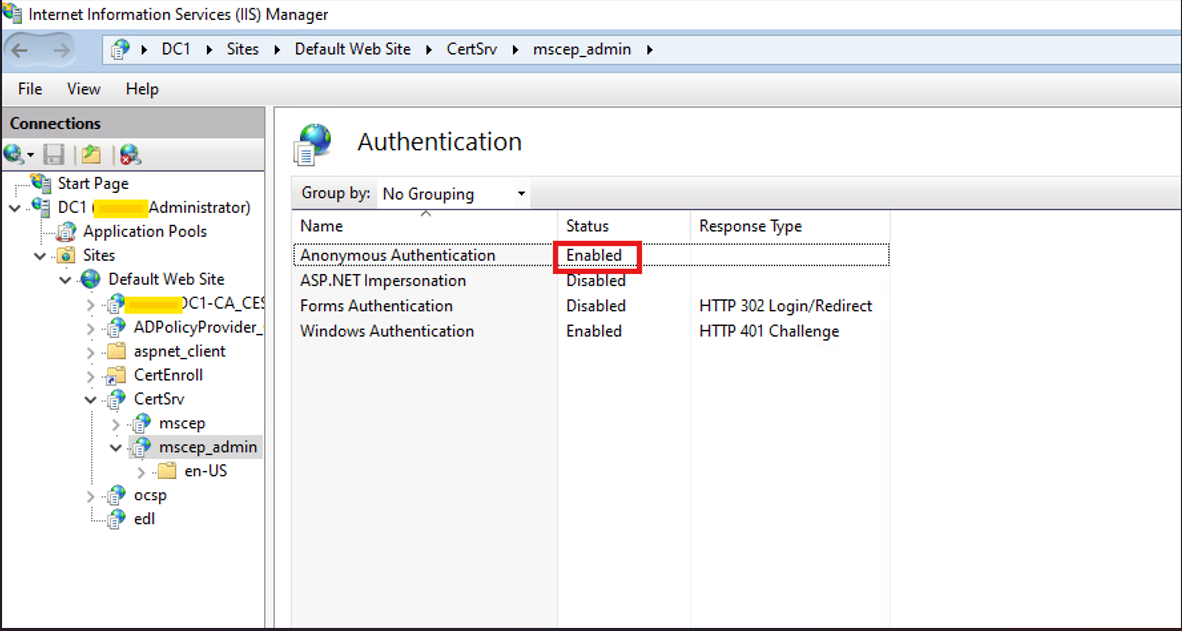

Enable the Anonymous Authentication as shown below
